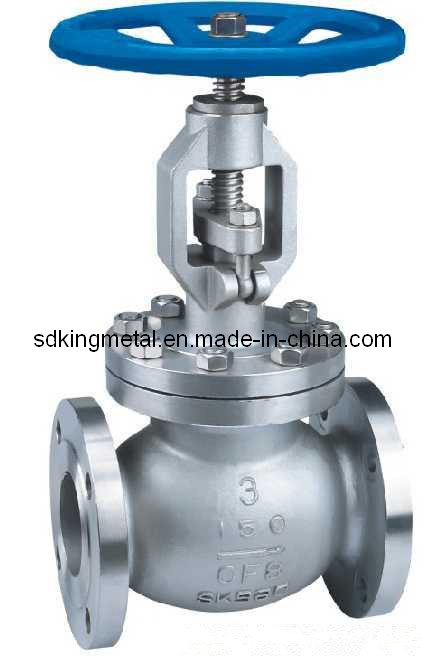

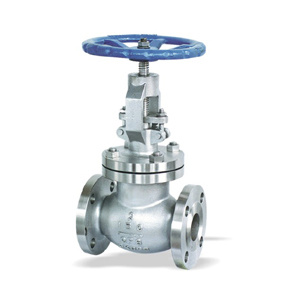

API Cast Steel 150lb Handwheel Globe Valve
| Price: |
US $ 2-12/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
Cast steel valves
Standard:ANSI MSS (also available for DIN,BS,JIS)
Certificate:ISO,API
Pressure rate:150LBS,300LBS,900LBS
Materials:A216WCB,A217WC6,A315CF8,A351CF8M,
A351CF3,A315CF3M
Design and manufacture:API 6D and API600
Inspection & Test:API 6D and API598
Face to face:API 6D and ANSI B16.5
Operation:handwheel and gear operation.
Size:1/2"-36"
Packing in poly-wooden cases
Payment by LC,TT,DP
Used for water,oil,gas etc
| Class | Size | Dimensions(mm) | Weight(kg) |
| NPS | DN | L | d | H | H1 | W | W1 |
| RF | RTJ | BW | H.W | G.O |
| 150 | 1/2 | 15 | 108 | 119 | 108 | 13 | 192 | - | 100 | - | 4 | - |
| 3/4 | 20 | 117 | 130 | 117 | 19 | 193 | - | 100 | - | 6 | - |
| 1 | 25 | 127 | 140 | 127 | 25 | 217 | - | 100 | - | 8 | - |
| 1 1/4 | 32 | 140 | 152 | 140 | 32 | 235 | - | 135 | - | 12 | - |
| 1 1/2 | 40 | 165 | 178 | 165 | 38 | 258 | - | 135 | - | 16 | - |
| 2 | 50 | 203 | 216 | 203 | 51 | 330 | - | 200 | - | 17.5 | - |
| 2 1/2 | 65 | 216 | 229 | 216 | 64 | 360 | - | 250 | - | 29 | - |
| 3 | 80 | 241 | 254 | 241 | 76 | 390 | - | 280 | - | 32 | - |
| 4 | 100 | 292 | 305 | 292 | 102 | 445 | - | 300 | - | 51 | - |
| 5 | 125 | 356 | 369 | 356 | 127 | 480 | - | 350 | - | 67 | - |
| 6 | 150 | 406 | 419 | 406 | 152 | 520 | 556 | 350 | 310 | 92 | 258 |
| 8 | 200 | 495 | 508 | 495 | 203 | 600 | 658 | 400 | 310 | 147 | 300 |
| 10 | 250 | 622 | 635 | 622 | 254 | 773 | 805 | 450 | 460 | 250 | 450 |
| 12 | 300 | 698 | 711 | 698 | 305 | 880 | 955 | 500 | 460 | 415 | 725 |
| Prod Model: |
SDCV023 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2"-24" |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Application: |
Oxygen Globe Valve |
| Standard: |
Awwa Bs |
