Product Description

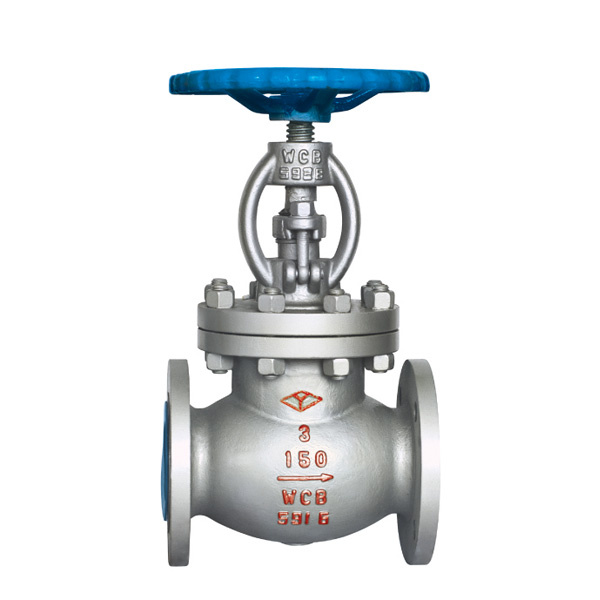

API Casting-steel 150Lb Globe Valve

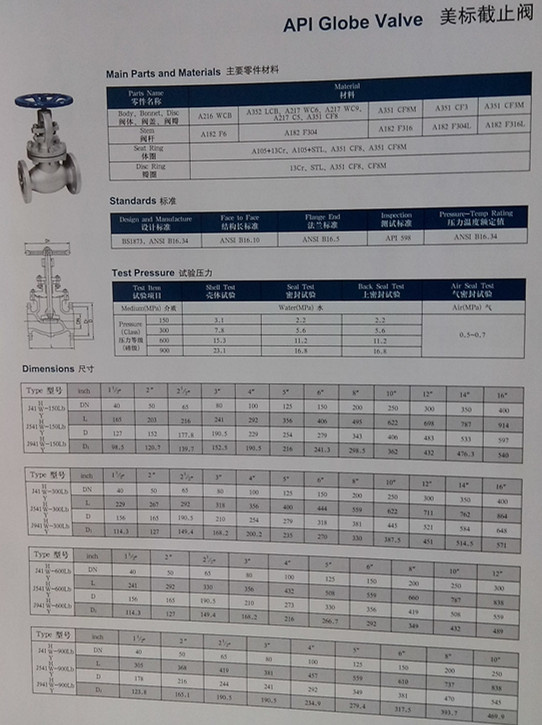

Main parts and materials:
1. Body, Bonnet & Disc: A216WCB
2. Stem: A182 F6
3. Stem Ring: A105+13Cr
4. Disc Ring: 13Cr
Stndards:
1. Design and Manufacture: BS1873, ANSI B16.34
2. Fact to Face: ANSI B16.10
3. Flange End: ANSI B16.5
4. Inspection: API 598
5. Pressure-Temp Rating: ANSI B16.34
Test Pressure:
1. Shell Test(Water)(MPa): 3.1
2. Seal Test(Water)(MPa): 2.2
3. Back Seal Test(Water)(MPa): 2.2
4. Air Seal Test(AIR)(MPa): 0.5-0.7
