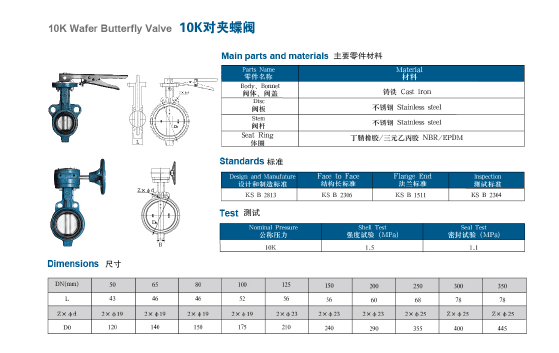

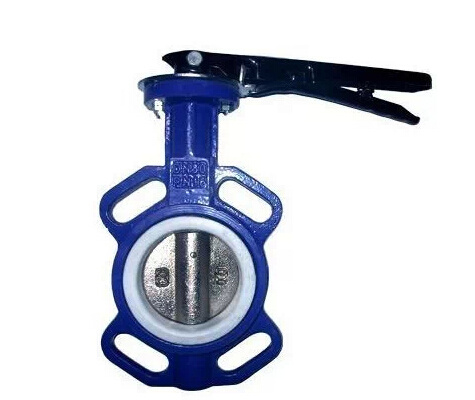

KS 10K Cast iron Wafer butterfly Valve
Usage: The valve is mainly used to cut off the fluid it also can be designed to have the function of adjusting and cutting off the fluid.
Main parts and materials:
1. Body & Bonnet: Cast iron
2. Disc: Stainless steel
3. Stem: Stainless steel
4. Seat Ring: NBR/EPDM
Standards:
1. Design and Manufature: KS B 2813
2. Face to Fact: KS B 2306
3. Flange End: KS B 1511
4. Inspection: KS B 2304
Test:
1. Nominal Pressure: 10K
2. Shell Test(MPa): 1.5
3. Seal Test (MPa): 1.1
| Detailed Description: |
| Series | wafer type butterfly valve |
| Size: | DN40-DN2200 |
| End flange: | ANSI B 16.1, ASTM B 16.47, EN 1092, AS 2129, ISO PN10/16, JIS B2212/2213, BS 10 Table D, BS 10 Table E |
| Face to face: | ANSI B 16.10 |
| Top flange: | ISO 5211 GB |
| Nominal pressure: | DN40-DN600(1.5" -24" ) PN1.0/1.6MPa(150/200PSI) DN700-DN1200(28" -48" ) PN1.0MPa(150PSI) |
| Body: | Cast Iron/Ductile Iron/WCB/Carbon steel/AL-Bronze/CF8, SS304/CF8M, SS316 |
| Disc: | Ductile Iron/Ni-plated ductile iron/Nylon-plated ductile iron/AL-Bronze/Rubber lined Disc/1.2501/1.4529/CF8/CF8M/Hastelloy Alloy/Monel |
| Stem: | SS416/SS304/SS316/SS431/17-4PH/Monel |
| Seat: | NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM/PTFE |
| Suitable temperature: | Normal Temperature -45 ~150 |
| Medium: | Flesh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
