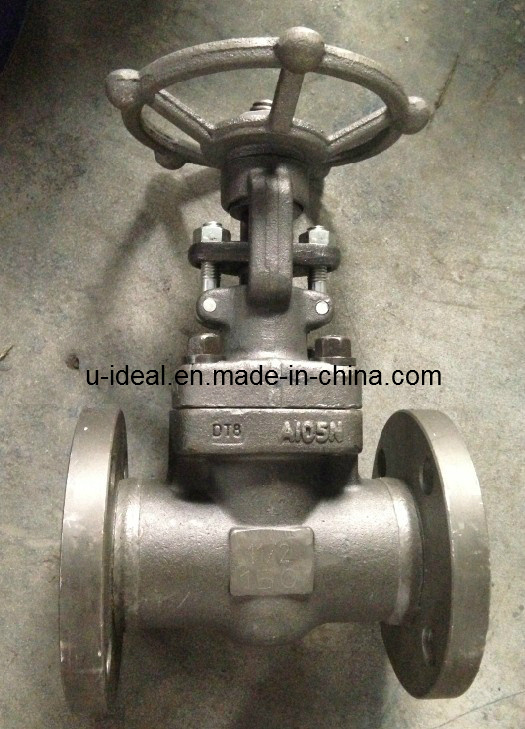

ASTM Forged Steel Flanged Gate Valve
Price: |
US $ 80/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
ASTM forged steel Flanged Gate Valve
Z41H-150LB
Forged steel Flanged Gate Valve Description:
1. Size: 1/2"---24"
2. Pressure: 150#. 300#. 600#. 900#
3. Working Temperature: Not more than 425 degree
4. Design standard: ANSI B16.5
5. Medium: Water treament, oil, steam, gas producing line,
6. Connect Type: Flanged RF
Forged steel Flanged Gate Valve Material
1. Valve body material: WCB, S Steel
2. Disc: ASTM A216 WCB SS304 SS316
3. Seal: SSD507Mo, D577
4. Stem: 1Cr13, F6a
5. Bonnet: ASTM A216 WCB
6. Yoke nut: Zcual10Fe3, ASTM A439 D-2
7. Hand Wheel: Malleable Cast Iron. DI WCB
Application: Forged steel gate valve is suitable for Class150 ~ 2500, the working temperature - 29 ~ 2500 ºC (carbon steel) or - 29 ~ 500 ºC (stainless steel) of small diameter pipeline.
Related products: Gate Valve Ball Valve Check Valve Globe Valve Butterfly Valve Knife Gate Valve Cryogenic Valve Water valve two or three ways valve hydraulic valve float valve pressure reducing valve.
NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM |
Type A105 | Type F22 | Type F304(L) | Type F316(L) |
1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
2 | Seat | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
3 | Wedge | A276 410 & 430 | a182 F304 | A182 F304(L) | A182 F316(L) |
4 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
5 | Pressure Seat | A105 | A182 F304 | A182 F304(L) | F316(L) |
6 | Pressure Ring | A276 304L | A276 316L |
7 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
8 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
9 | Pin | A276 420 | A182 F304 |
10 | Stem Packing | Flexible Graphite | PTFE |
11 | P.S. Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
12 | Gland | A276 F420 | A182 F304 |
13 | Gland Flange | A216 WCB | A351 CF8 |
14 | Nut | A194 2H | A194 4 | A194 8 | A194 8M |
15 | Yoke Nut | A276-410 |
16 | Retaining Nut | A194 2H | A194 4 | A194 8 | A194 8M |
17 | Hand wheel | A197 |
18 | H.W. Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
19 | Oil Cup | Brass |
Suitable Medium | W.O.G. etc | W.O.G. etc | HNO3,CH3OOH etc |
Suitable Temperature | -29ºC~425ºC | -29ºC~550ºC | -29ºC~180ºC |
Prod Model: |
Z41H-150LB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1/2"---24" |
Pressure.: |
150#. 300#. 600#. 900# |
Working Temperature: |
Not More Than 425 Degree |
Design Standard: |
ANSI B16.5 |
Medium: |
Water Treament, Oil, Steam, Gas Producing Line, |
Connect Type: |
Flanged RF |
Disc: |
ASTM A216 Wcb Ss304 Ss316 |
Stem: |
1Cr13, F6a |
Hand Wheel: |
Malleable Cast Iron. Di Wcb |
Material: |
Steel |
Connection Form: |
Flange |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Application: |
Household Usage |
