The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Jacketed Ball Valve (Heating Jacket Ball Valve) with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid. This applies especially to media like bitumen and liquid sulfur. In addition, the efficient flow of media is ensured through the elimination of pockets.

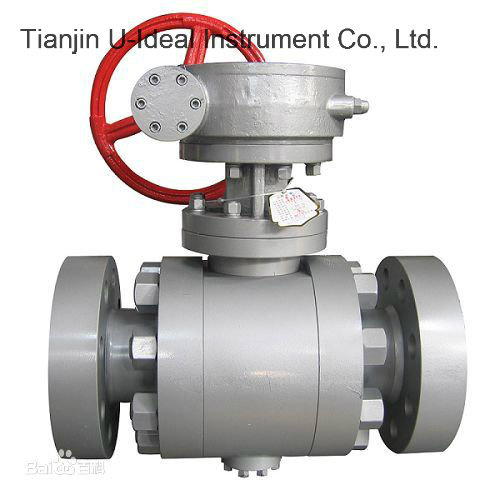

acket Ball Valve(Q41F-16C/P/R)
Main Specification
Body: WCB, CF8(304), CF8(304L), CF8M(316), CF3M(316L)
Ball/Stem: 2Cr13, 0Cr18Ni9Ti(304), 00Cr19NI11(304L), 0Cr17Ni12Mo2(316) 00Cr17Ni14Mo2(316L)
Sealing: PTFE\PPL
Packing/Washer: V-shape PTFE, Flexible Graphite, Flexible Graphite Wounded Gasket.
Design and Manufacture: GB-89, API6D, JPI17S-48
Flange: JB79-59, SH3406, GB9113, HC20592-97, ANSI B16.5, JIS B2212-2214
Face-to-face: GB12221-89, ANSI 16.10, JIS B202
Test and Inspection: GB/T13927-89, JB/T9092-99, JPI590.
Steam, can be used as carrier for heating media. Following quality assurance rules, every valve is tested again after the Jackets have been welded (Fabricated) to the body. Jacket Hydraulic & Air Test is carried out at 6.0 Kg. /Cm2.
Generally standard Jacketed Ball Valves are delivered in carbon steel and different types of stainless steel materials. Other special materials are available upon special request.
Tianjin U-ideal instrument Jacketed P. T. F. E. Seated Ball Valves gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20 Deg. C. To +220 Deg. C. Electro-Polished, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on request.
Valve Operation:
Tianjin U-ideal instrument Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size. Dharmi Engineers also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation. Pneumatic Acutator Operated Ball Valve also available.
Wide Range of Body Seat, Seal & Packing:
Tianjin U-ideal instrument Ball Valves are also available with different type of Seat, Seal & Packing material such as P. T. F. E. (Virgin) / Glass Filled P. T. F. E. / Carbon Filled P. T. F. E. / Graphite (Grafoil) / PEEK to suit special requirement of client.
Wide Range of Industrial Ball Valve
Cast Iron Ball Valve
Cast Carbon Steel Ball Valve
Cast Stainless Steel Ball Valve
Forged Steel Ball Valve
Single Piece Design Ball Valve
Two Piece Design Ball Valve
Three Piece Design Ball Valve
High Pressure Ball Valve
Two Way Ball Valve
Three Way Ball Valve
Four Way Ball Valve
High Performance Ball Valve
Jacketed Ball Valve
Flush Bottom Ball Valve
Gear operated Ball Valve
Pneumatic Ball Valve
I. C. Ball Valve (Investment Casting)
Multiport Ball Valve
Mixing & Diverting Type Ball Valve
Fire Safe Design Ball Valve
Zero Leakage Ball Valve
| Packing | plywood cases or wooden cases |
| Production Capacity | 50000 pcs/year |
| Unit price/payment | L/C or T/T |
| Trademark | MZV |
| Origin | China |
| Transportation | By sea or by Air or negotiable |
