It is pilot operated, its sealing materials is PTFE, has reliable performance, long service life!

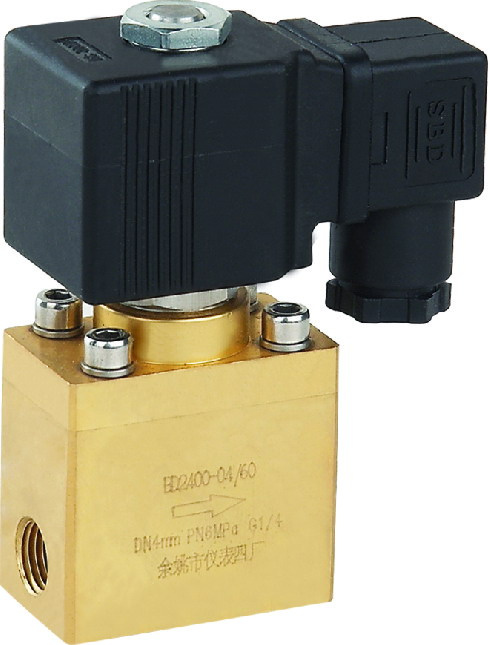

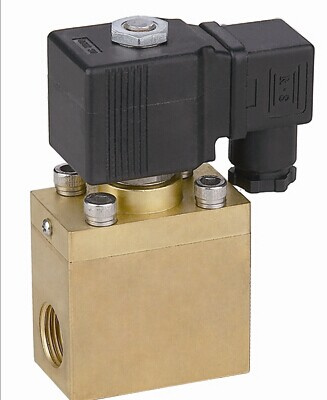

Miniature high pressure brass 2 way solenoid valve
Specifications
Media: Gas, liquid (below 20cst)
Sealing material: PTFE
Mode of action: Pilot operated type
Body mterial: Brass,
Working type: NC
Coil power: AC220V/110V, 22VA; DC 24/12V, 18W; Also available for other voltages
BD2400
Model |
BD2400-04 |
BD2400-05 |
BD2400-06 |
BD2400-08 |
BD2400-10 |
BD2400-12 |
Connection |
1/4" OR 3/8'' |
1/2'' |
1/2" |
Orifice Size |
mm |
4 |
5 |
6 |
8 |
10 |
12 |
Cv Value |
0.45 |
0.55 |
0.8 |
1.1 |
1.5 |
2.2 |
L |
mm |
48 |
60 |
H |
mm |
102 |
117 |
Medium temperature |
-5 ~80 |
Pressure |
bar |
AC 1~60 DC 1~50 |
