Brass Solenoid Valve of Hydraulic
General:

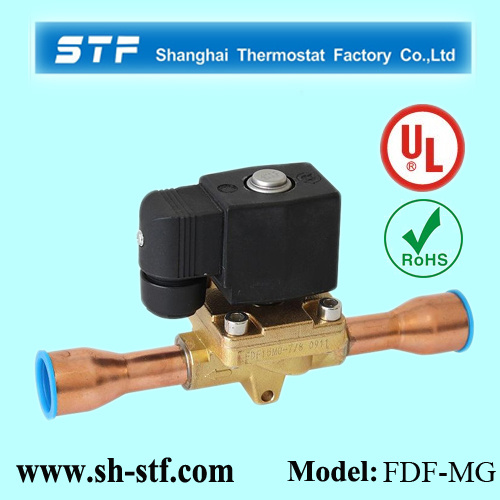

FDF-MG series are specially designed for R410A system, it can be also used for liquid, suction, discharge gas and refrigerant service.
Characteristics:
FDF~MG series are servo pilot operated solenoid valves for liquid, suction and hot gas application.
Full range of solenoid valves for refrigeration and air condition application.
Wide choice of coils for AC and DC.
Suitable for R410A refrigerants, HFC & HCFC.
Temperature of medium -40º C~+105º C, Max +130º C during defrosting.
Environmental temperature -40º C~+55º C.
Max. Working pressure 45 bar.
Maximum test pressure (liquid line) ≥ 68 bar.
Versions with UL and CUL approval can be supplied to order
|
Model |
Form
of Connection |
Connection Size |
Opening diff. pressure(bar) |
Kv Value
m 3 /h |
Max working pressure
(bar) |
Dimensions(mm) |
Rated power
(V) |
mm
ODF |
in
ODF |
Min |
Max(liquid) |
L
mm |
W
mm |
H
mm |
AC
(V) |
DC
(V) |
|
50/60Hz AC |
DC |
|
FDF3G |
ODF |
6 |
1/4 |
0 |
28 |
24 |
0.27 |
45 |
117 |
31 |
76 |
24
36
110
220 |
12
24
110
220 |
|
10 |
3/8 |
|
FDF6MG |
10 |
3/8 |
0.05 |
0.6 |
127 |
32 |
80 |
|
12 |
1/2 |
|
FDF8MG |
10 |
3/8 |
1.0 |
137 |
38 |
88 |
|
12 |
1/2 |
137 |
|
16 |
5/8 |
162 |
|
FDF10MG |
12 |
1/2 |
1.8 |
137 |
45 |
88 |
|
16 |
5/8 |
166 |
|
FDF15MG |
16 |
5/8 |
3 |
174 |
52 |
96 |
|
19 |
3/4 |
|
22 |
7/8 |
|
FDF20MG |
22 |
7/8 |
5 |
190 |
58 |
115 |
|
22 |
7/8() |
230 |
|
28 |
9/8 |
250 |
|
FDF25MG |
28 |
9/8 |
9.8 |
236 |
72 |
119 |
|
35 |
11/8 |
|
FDF32MG |
35 |
11/8 |
15 |
281 |
86 |
133 |
|
42 |
13/8 |
|
FDF40MG |
42 |
13/8 |
25 |
312 |
126 |
158 |
|
54 |
17/8 |
