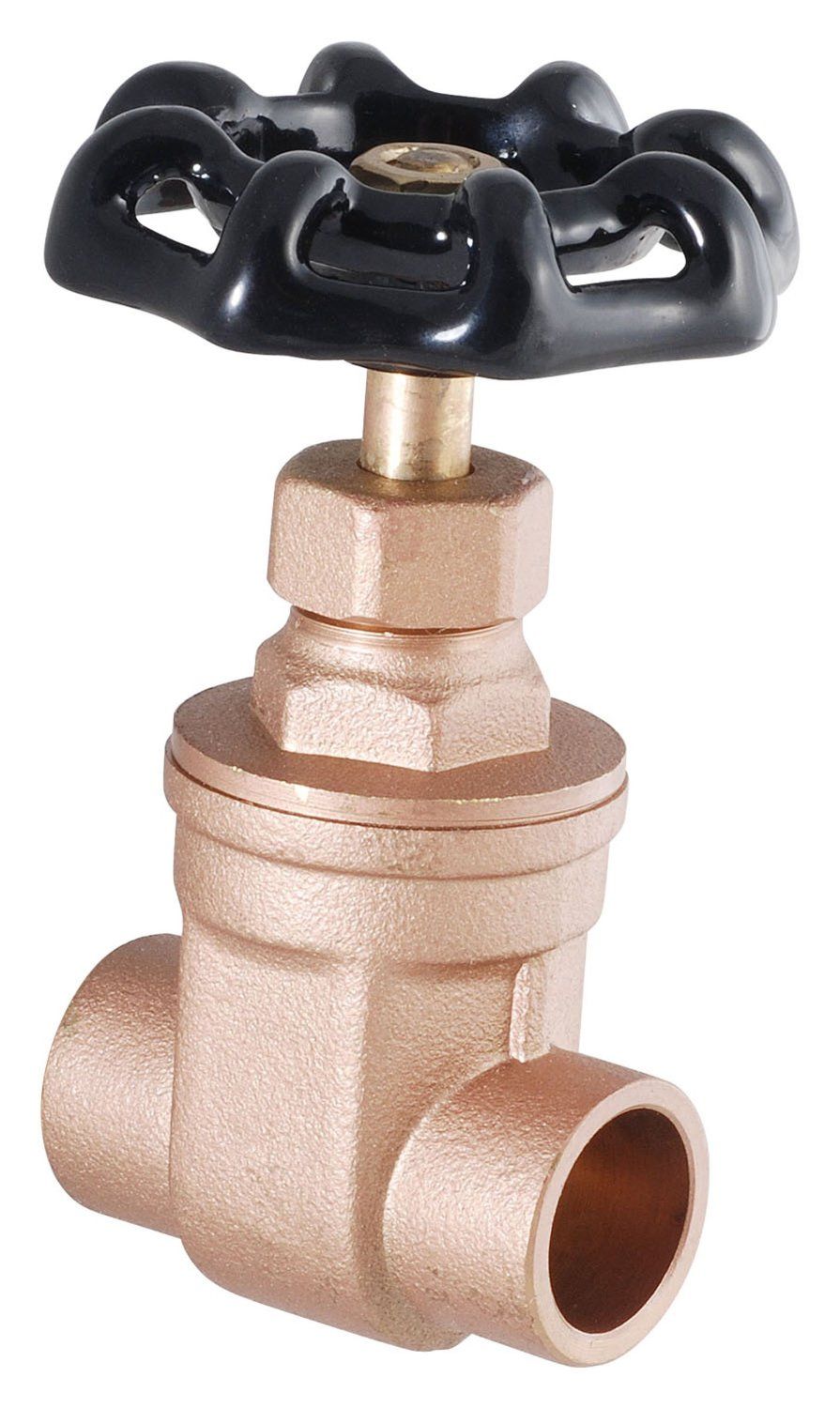

Specification of gate valve :
- -1/2-Inch IPS Lead Free Brass
- Sweat connection
- Lead free brass AB1953 certified
- ANSI B2.1 for pipe threads and ANSI B2.4 hose threads
- Nominal pressure: 1.6MPa
Working medium: water, non-corrosive liquid and saturated steam
Working temperature: -20 to 180 degrees Celsius
Pipe thread to ISO7 and American standard thread
Name: | Brass Gate valve |

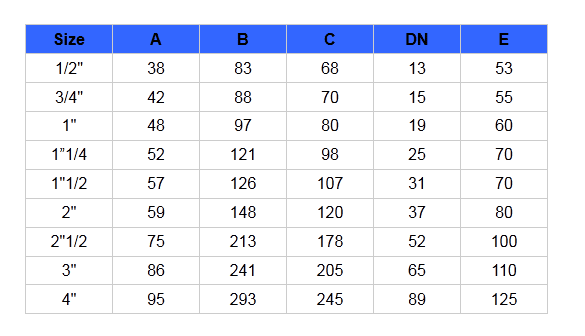

Size: | 3/8", ½" . ¾" . 1", 1¼" .1½" . 2", 2-1/2", 3", 4" |
Material | 58-3A or CW617N or DZR |
Working Pressure | 1Bar≤P≤16Bar |
Working Temperature | -20°C≤T≤170°C |
Suitable Medium: | Water, Non-Causticity Liquid & Saturated Steam |
Threads | BSP or NPT |
Finish | Yellow Brass |
Place of Origin | jiangsu China(Mainland) |
Delivery Port | Ningbo or Shanghai,China |
Delivery Time | 30days |
Test pressure | 100% tested with 0.6MPa - 0.8MPa by air. |
Supply ability | 3000 per day |
Minimum order | 100PCS |
Package | White Box then Standard Export Carton & Pallet.If customer has special requirement.It is available to provide the colorful package according to the design of customers |
Boss was set up in 2009 in Wuxi, it takes 1 hour from Shanghai Railway station to our factory.
Business scope: Vavle and pump develope, manufacture, sell and service.
Looking for abroad companies agent biz
Advantage:
1, CNC machines 20 sets
2, production lines: 4
3, CE, asme products
4, follow Germany and Italy technology
5, 3 stores and 2 factoreis
Company Policy: Honest, Service, Quality
Welcome to your visit warmly.
