Butterfly Spring Type Safety Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Butterfly spring type safety valve
|
Chief proprety and specification |
|
Type |
Nominal pressure
PN(MPa) |
Test pressure Ps(MPa) |
Working pressure p(MPa) |
Working temperature |
Test
temperature |
|
Seal |
Strength |
|
A62Y-P 54 100V |
10 |
11 |
15 |
10 |
540 |
|
|
A62Y-P 31 112 |
11.2 |
12.4 |
16.8 |
11.2 |
318 |
|
A62Y-P 55 140V |
14 |
15.4 |
21 |
14 |
555 |
|
A42Y-P 55 170V |
17 |
18.7 |
25.5 |
17 |
555 |
|
A42Y-P 55 26V |
2.6 |
2.9 |
3.9 |
2.6 |
555 |
|
A42Y-P 45 45 |
4.5 |
5 |
6.8 |
4.5 |
450 |
|
A42Y-P 33 26.5 |
2.7 |
3 |
4.1 |
2.7 |
330 |
|
Materials for main parts |
|
|
Name of part |
Body |
Bonnet |
Stem |
Butterfly soring |
|
A62Y-P54100 |
ZG15Cr1Mo1V |
ZG25 |
38CrMoA1A |
60Si2MnA |
|
A62Y-P31112V |
ZG25 I |
|
A62Y-P55140V , A62Y-P55170V , A42Y-P5526V |
ZG15Cr1Mo1V |
20Cr1Mo1V1 |
|
A42Y-P4545 , A42Y-P3326.5 |
ZG25 I |
|

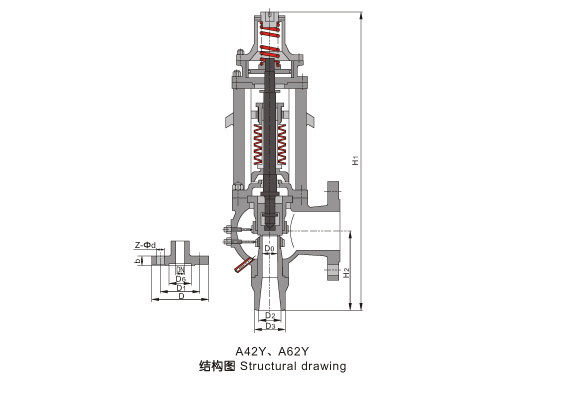

Dimensions(mm) |
|
Type |
Diameter
DN(mm) |
Dimensions(mm) |
|
Do |
D |
D 1 |
D 2 |
D 3 |
D 6 |
b |
Z- d |
H 1 |
H 2 |
|
A62Y-P 54 100V |
70/80 |
70 |
- |
- |
88 |
150 |
- |
- |
- |
1,575 |
347 |
|
A62Y-P 31 112 |
70/80 |
70 |
- |
- |
88 |
150 |
- |
- |
- |
1,575 |
347 |
|
A62Y-P 55 140V |
70/80 |
70 |
- |
- |
89 |
170 |
- |
- |
- |
1,644 |
375 |
|
A42Y-P 55 170V |
75/100 |
75 |
- |
- |
100 |
190 |
- |
- |
- |
1,705 |
380 |
|
A42Y-P 55 26V |
110/150 |
110 |
350 |
290 |
- |
- |
204 |
46 |
12-34 |
2,067 |
480 |
|
A42Y-P 45 45 |
110/150 |
110 |
350 |
290 |
- |
- |
204 |
46 |
12-34 |
2,070 |
480 |
|
A42Y-P 33 26.5 |
110/150 |
110 |
350 |
290 |
- |
- |
204 |
46 |
12-34 |
2,067 |
480 |
| Prod Model: |
A42Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Spring Type |
