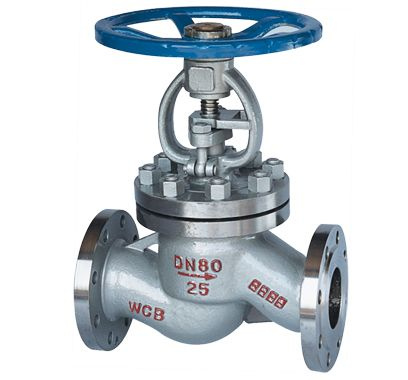

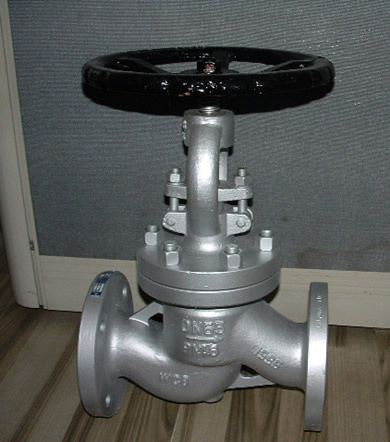

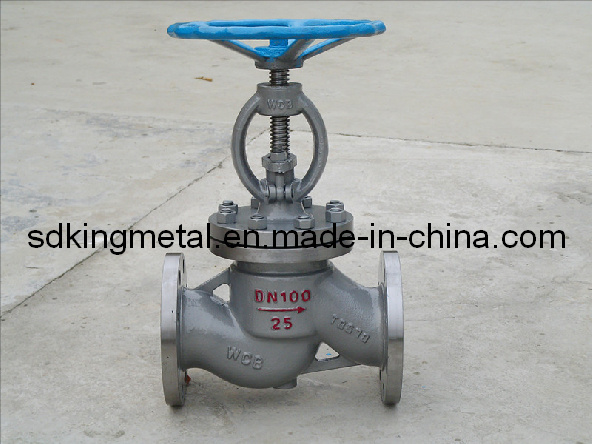

Cast Steel GB Pn40-160 Flanges End Globe Valve

Cast Steel GB Pn40-160 Flanges End Globe Valve
Price: US $ 10-100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P
Contact Supplier
Shandong King Metals Co., Ltd.
Showroom Product Company Profile
1.Delivery Time:25 days after order conformed.
2.Standard: EN,MSS,API,AWWA,BS
3.Operation: level operation
4.Body:cast iron,stainless steel 304/316,aluminum bronze
5.Painting:PTFE coating,nylon painting
6.Stem:CS,SS416,SS410,SS304,SS431
7.Seat:NBR,EPDM,PTFE
8.Pressure:PN10,PN16
9.Size:2''-24''
10.Packaging:export poly wooden cases, or as per customers' requirements
11.Payment:by L/C,T/T and D/P

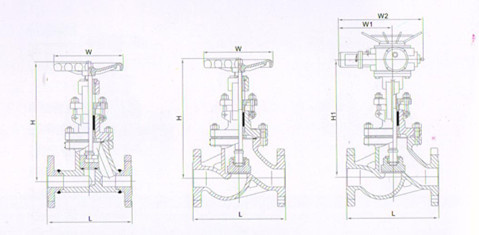

Pressure(Mpa) Size Dimensions(mm) Electric Actuator Weight(kg) Torque(N.m) Cv
L H W H1 W1 W2 Handwheel Electric
PN4.0 10 130 198 120 - - - - 4.9 - - -
15 130 233 120 - - - - 5.7 - - -
20 150 275 140 - - - - 7 - - -
25 160 285 160 - - - - 8.8 - - -
32 180 302 180 - - - - 11.8 - - -
40 200 355 200 - - - - 16.5 - 35 -
50 230 373 240 645 371 590 DZW10A 24 61 60 -
65 290 408 280 690 371 590 DZW10A 33 75 71 -
80 310 436 320 715 371 590 DZW20A 44 84 138 105
100 350 480 360 770 371 590 DZW30A 60 101 214 189
125 400 558 400 782 515 810 DZW45A 89 207 322 381
150 480 611 400 875 515 810 DZW60A 98 226 461 428
200 600 720 400 1160 540 830 DZW90 190 399 642 798
PN6.4 10 170 198 120 - - - - 5.7 - - -
15 170 195 140 - - - - 10 - - -
20 190 228 160 - - - - 13 - - -
25 210 275 180 - - - - 14.5 - - -
32 230 325 200 - - - - 19 - - -
40 260 360 240 - - - - 25 - 46 -
50 300 410 280 710 371 590 DZW10A 35 64 66 -
65 340 450 320 750 371 590 DZW15A 48 77 97 -
80 380 485 360 785 371 590 DZW30A 56 86 207 105
100 430 537 400 837 515 810 DZW45A 125 171 310 189
125 500 631 400 1031 515 810 DZW60A 131 243 414 381
150 550 646 450 1066 540 830 DZW90 157 296 620 428
200 650 813 500 1213 540 830 DZW120 283 420 827 798
PN10.0 10 170 198 120 - - - - 6 - - -
15 170 202 140 - - - - 11 - - -
20 190 228 160 - - - - 13.2 - - -
25 210 250 180 - - - - 14 - - -
32 230 326 220 - - - - 15 - - -
40 260 359 240 - - - - 29 - 63 -
50 300 414 280 710 371 590 DZW20A 49 81 125 -
65 340 434 320 750 371 590 DZW30A 65 102 201 -
80 380 547 400 785 515 810 DZW45A 95 175 296 105
100 430 621 450 950 515 810 DZW60A 115 194 394 189
125 500 732 450 1142 540 830 DZW90 149 285 592 381
150 550 840 500 1240 540 830 DZW120 310 450 789 428
200 650 925 550 1425 565 870 DZW180 590 850 1154 798
ON16.0 10 170 148 140 - - - - 12.2 - - -
15 190 156 160 - - - - 15 - - -
20 210 175 180 - - - - 17 - - -
25 230 200 200 - - - - 21.4 - - -
32 260 231 240 - - - - 32 - 102 -
40 300 262 250 562 371 590 DZW30A 52 92 196 -
50 340 303 320 743 515 810 DZW45A 69 165 296 -
65 380 341 400 820 540 830 DZW90 98 216 588 105
80 430 485 450 935 540 830 DZW120 119 238 774 189
100 500 - - 1180 565 870 DZW180 - 490 1169 381
125 550 - - 1290 565 870 DZW250 - 674 1623 428
150 650 - - 1495 770 1170 DZW350 - 1120 2244 798

Prod Model: SDTV-001
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Dn40-1200
Structure: Through Way Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Sealing Form: Gland Packings Globe Valve
Standard: En API Awwa Bs
Application: Oxygen Globe Valve
We are one of the biggest manufacturers and exporters of Pipeline products in China. We supply butt-welding pipe fittings, stainless steel screwed pipe fittings, forged steel flanges, cast iron valves, cast steel valves, stainless steel valves, balance valves rubber expansion joint, and much more. With many years of effort and support from our valuable customers, these products have obtained a big marker share in the world. At present our products have been export to Asia(Singapore, Tailand, Saudi Arabia, Bahrain, Yemenm, Jordan)Europe(Gemany, Italy, Spain, France, Portudal, Poland)Africa(Egypt, , Camaroon, Morocco)America(USA, Chile, Peru, Panama, Brazil, Paraguary Mexico)

Our business policy is noted for four "F":

Quality First Reputation First.

Customer First Price Fair.

Friends, traders and manufacturers all over the world are welcome to join us establishing and developing business relations on the basis of equality and mutual benefit under the principle of "Provide The World Market With High Quality Goods And Best Service".

Any information, samples and drawing s that you can provide will facilitate us to make the correct supply to meet your special requirement.
