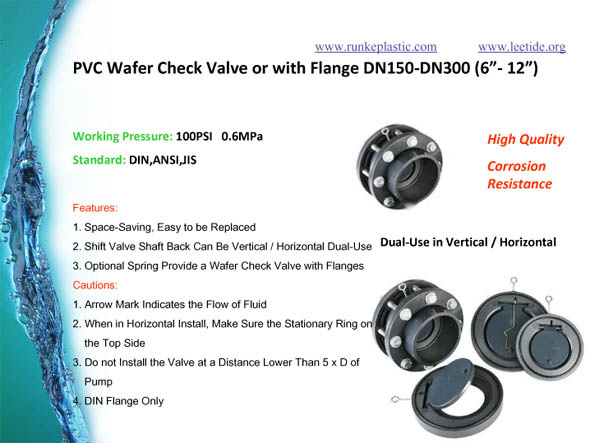

UPVC Wafer Check Valve DIN Standard DN150-DN300 (6"-12")
Working pressure: 6kg/ cm2 100 psi
Material: PVC, CPVC
Standard: DIN
FEATURES:
1. Space-Saving, Easy to Replace
2. Shift Valve Shaft Back Can be Vertical / Horizontal Dual-Use,
3. Optional Spring Provide a Wafer Check Valve with Flanges
CAUTION:
1. Arrow Mark Indicates the Flow of Fluid When in Horizontal Install, Make Sure the Stationery Ring on the Top Side.
2. Do not Install the Valve at a Distance Lower Than 5 x D of Pump Out.

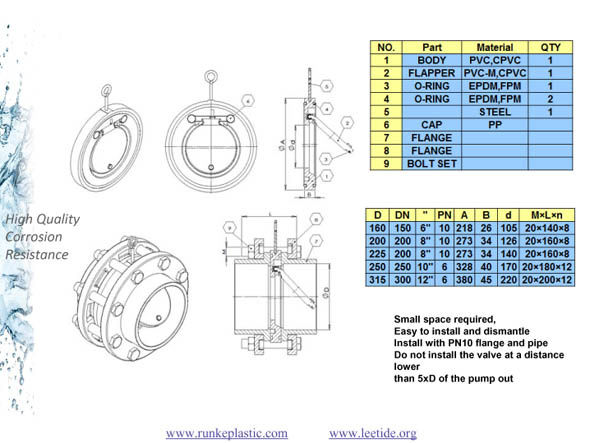

Inch | D | DN | PN(MPa) | A | B | d | Flange | Bolt MxL |
6" | 160 | 150 | 1.0 | 218 | 26 | 105 | DN150 | 20x130 |
8" | 200 | 200 | 0.6 | 273 | 34 | 126 | DN200 | 20x140 |
8" | 225 | 200 | 0.6 | 273 | 34 | 140 | DN200 | 20x140 |
10" | 250 | 250 | 0.6 | 330 | 40 | 170 | DN250 | 22x160 |
12" | 315 | 300 | 0.6 | 380 | 47 | 220 | DN300 | 22x180 |
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce
PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;
PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.
PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;
PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;
PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;
HDPE Fittings for Water Supply SDR11 & SDR17
PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;
SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;
HDPE Inspection Chamber
