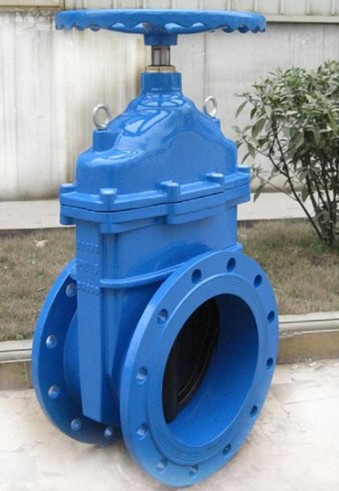

METAL SEATED (NON RISING/RISNG STEM) GATE VALVE
GATE VALVE NRS BS5150 PN16
Design and manufacture conform to BS 5150/MSS SP-70
Flange dimensions conform to EN 1092-2/ANSI B16.1
Face to face dimensions conform to BS 5150& BS 5163 PN16/ANSI B16.1
Testing conform to BS6755/MSS SP-70/API 598
Component
1 | Body | Cast iron, ductile iron |
2 | Body seat | Bronze, brass |
3 | Wedge seat | Bronze, brass |
4 | Wedge | Cast iron, ductile iron |
5 | Stem nut | Bronze,brass |
6 | Stem | Strainless steel |
7 | Gasket | Graphite |
8 | Bonnet bolt | Carbon steel |
9 | Nut | Carbon steel |
10 | Bonnet | Cast iron,ductile iron |
11 | Bolts | Carbon steel |
12 | Gasket | Graphite |
13 | Stuffing box | Cast iron,ductile iron |
14 | Packing | Graphite |
15 | Gland follower | Cast iron,ductile iron |
16 | Hand wheel | Carbon steel,ductile iron |
17 | Washer | Carbon steel |
18 | Hand wheel nut | Carbon steel |
Production process
We are manufacture and have own factory and production lines.
We test the gate valve one by one
We have a sophisticated casting technology.
The gate valves are tested by 2 times before leaving our factory.
1.The fist time is in the assembly process, and valves are tested one by one.
2.The second time is before packaging, we use the method of spot check, 5%. Once found problems, 100% testing.
3.So we can guarantee 95%~98% zero-leaking.
