Class 150~1500 Cast Steel Gate Valve

Class 150~1500 Cast Steel Gate Valve
Price: Negotiable
Min Order: 1
CLASS 150~1500 CAST STEEL GATE VALVE
OS&Y, Rising stem, Flexible Wedge
Bolted Bonnet, Threaded or welded seat ring
ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M, A352 LCB

Standards compliance
Design and Manufacture: ANSI B16.34, API600 API6D, API603, BS1414
Face to face(end to end): ANSI B16.10, API6D
Flanged connection: 2"~24" to ANSI B16.5
22", 26"~36" to MSS-SP-44 or to API605 on Request
Test and inspection: API598, API6D
Butt welded end: ANSI B16.5

A. Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B. Grub screw: Secures yoke nut in the bonnet
C. Grease nipple: Supplies lubricant to the mating parts
Materials
NO.Part nameMaterial
19Grease nippleBrass
18Grub screwCarbon steel
17Hand wheel nutCarbon steel
16Hand wheelMalleable lron/cast steel/ ducile lron/fabricated steel
15Yoke nutCarbon steel/SS
14Eye bolt and nutA 193 B7/A194 2H~A193 B8/A194 8
13PinCarbon steel/stainless steel
12Stem nutA 439-D2/cu-alloy
11Gland flangeCarbon steel/equivalent to body material
10GlandStain less steel
09Back seatStain less steel
08StemStain less steel
07Seat ringCS+SS/SS/SS+STL
06WedgeMaterial see body



NO.Part nameWCBLCBWC6WC9
05Bolt and nutA193 Gr B7/A194 Gr 2HA320 Gr L7/A194 Gr 4A193 Gr B16/A194 Gr 4/7A193 Gr B16/A194 Gr 4/7
04Gland PackingGraphiteGraphiteGraphiteGraphite
03GasketSpiral wound/Soft lronSpiral wound/Soft lronSpiral wound/SS304Spiral wound/SS304
02BonnetA216 Gr WCBA352 Gr LCBA271 Gr WC6A271 Gr WC9
01BodyA216 Gr WCBA352 Gr LCBA271 Gr WC6A271 Gr WC9




NO.Part nameC5C12CF8CF8M
05Bolt and nutA193 Gr B16/A194 Gr 4/7A193 Gr B16/A194 Gr 4/7A193 B8/A194 8A193 B8M/A194 B8
04Gland PackingGraphiteGraphiteGraphiteGraphite
03GasketSpiral wound/Soft lronSpiral wound/Soft lronSpiral wound/SS304Spiral wound/SS316
02BonnetA217 Gr C5A217 Gr C12A351 Gr CF8A351 Gr CF8M
01BodyA217 Gr C5A217 Gr C12A351 Gr CF8A351 Gr CF8M

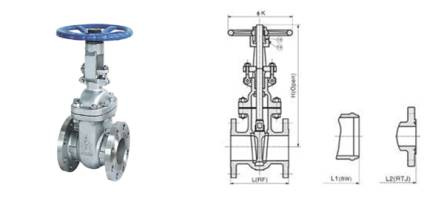

ClassDimensions
150Sizeinch22-1/2346810 12
L-RFmm178191203229267292330356
L1-BWmm216241283305403419457502
L2-RTJmm191203216241279305343368
Hmm400490510585795101512301465
Kmm200200250300350350400450
WtRFkg1828305085128220310
BWkg1522264077118200290
RTJkg2029375684138210310
300Sizeinch22-1/234681012
L-RFmm216241283305403419457502
L1-BW
L2-RTJmm232257298321419435473518
Hmm470525533610845105012951600
Kmm200200250300350350400450
WtRFkg24444873145226350580
BW
RTJkg20353754110174285495
600Sizeinch22-1/234681012
L-RFmm292330356432559660787838
L1-BW
L2-RTJmm295333359435562664791841
Hmm4955506157351005124514801730
Kmm200250300350450500600750
WtRFkg355572126365444700940
BW
RTJkg324764103218374570830
900Sizeinch22-1/23681012
L-RFmm368419381457610737838965
L1-BW
L2-RTJmm371422384460613740841968
Hmm5907007408701120139015921765
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Seal Surface: Parallel Gate Valve
Material: Carbon Steel
Connection Form: Flange
Zhejiang Aernan Valve Co., Ltd is situated in Oubei which is named as China Valve Town, it is a systemic manufactory, including scientific research, design, production, distribution, after service. Our factory has many years experience in producing kinds of API valves, such as gate valves, ball valves, globe valves and check valves etc.

In the help of scientific technology, continuous innovation and rigorous management system, our company built a full system that integrate distribution, contract, storage, finance and efficiency of personnel so that we can guarantee the quality of production. Our aim is entering into information meshwork, trying to be the best and our long-term target is to develop new products. Our company has got the credit from most consumers as we have higher quality, lower price, more advanced technology and excellent service.

For a company, quality is the base, credit standing is the development. Therefore, we still are keeping innovating and fetching in advanced technology in the effort of the staff, and try our best to meet our clients any requests.

We welcome our clients all over the world to see about our production, and to contract with each other. We expect we could make good winning hand in hand.
