Design & Manufacture: BS 5156-85, MSS SP-88, GB 12239-89
Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
Flanged Dimension: BS 5156-85, ANSI B16.5, EN 1092, GB/T 17421-98
Inspect & Test: BS 5156, MSS SP-82, GB/T 13927
Operation: Handwheel, Pneumatic, Electric
Pressure Rating: PN6, PN10, PN16, ANSI 125, ANSI 150
Main Material
Body / Bonnet: Cast Iron, Ductile Iron, Cast Steel, Stainless Steel & Duplex
Lining (Optional): Fluorine -- PTFE, FEP, PCTFE, PVDF, TFE, PFA, RPP, PO
Rubber -- NR, BR, IIR, CR, EPDM, CSPE, FKM, SI
Diaphragm: Rubber
Compressor / Disc: Cast Iron, Ductile Iron, Cast Steel, Stainless Steel
Stem: Carbon Steel & Stainless Steel
Handwheel: Iron & Steel

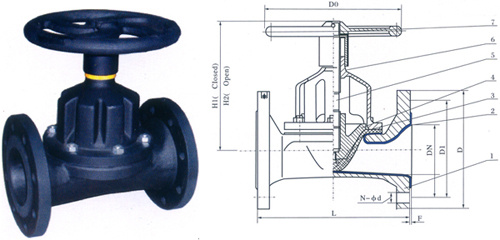

| Nominal DN | Nominal pressure | Working pressure | L | D | D1 | N-d | F | H1 | H2 | D0 | Weight kg |
| mm | inch |
| 15 | 1/2 | 1.0Mpa | 1.0Mpa | 108 | 95 | 65 | 4-14 | 2 | 90 | 99 | 66 | 2 |
| 20 | 3/4 | 117 | 105 | 75 | 4-14 | 2 | 93 | 103 | 66 | 3 |
| 25 | 1 | 127 | 115 | 85 | 4-14 | 2 | 100 | 112 | 66 | 4 |
| 32 | 1-1/4 | 146 | 140 | 100 | 4-18 | 2 | 127 | 144 | 96 | 6.5 |
| 40 | 1-1/2 | 159 | 150 | 110 | 4-18 | 2 | 136 | 156 | 96 | 7.5 |
| 50 | 2 | 190 | 165 | 125 | 4-18 | 2 | 151 | 177 | 96 | 10 |
| 65 | 2-1/2 | 216 | 185 | 145 | 4-18 | 2 | 183 | 213 | 165 | 16 |
| 80 | 3 | 254 | 200 | 160 | 8-18 | 2 | 190 | 230 | 230 | 23.5 |
| 100 | 4 | 305 | 220 | 180 | 8-18 | 2 | 242 | 285 | 280 | 34 |
| 125 | 5 | 0.6Mpa | 356 | 250 | 210 | 8-18 | 3 | 285 | 348 | 280 | 44 |
| 150 | 6 | 406 | 285 | 240 | 8-22 | 3 | 353 | 431 | 368 | 67.5 |
| 200 | 8 | 521 | 340 | 295 | 8-22 | 3 | 445 | 537 | 483 | 141.5 |
| 250 | 10 | 0.4Mpa | 635 | 395 | 350 | 12-22 | 5 | 598 | 734 | 500 | 229 |
| 300 | 12 | 749 | 445 | 400 | 12-22 | 5 | 689 | 778 | 560 | 321 |
| 350 | 14 | 787 | 505 | 460 | 16-22 | 5 | 723 | 883 | 560 | 360 |
| 400 | 16 | 0.25Mpa | 914 | 565 | 515 | 16-26 | 5 | 868 | 1078 | 640 | 584 |
