DBV60-35-D Single overcentre valves flangeable,counterbalance valve
USE AND OPERATION:These valves are used to control actuator's movements and block in one direction in order to have a under control descent of a load; load's weight doesn't carry it away, as the valve prevents any cavitations of the actuator. Flange ports enable direct mounting of the valve on the actuator. Valve setting must be at least 1,3 times more than load pressure in order to enable the valve to close even when undergone to maximum load pressure.This valve compact in struction,working in long life.
MATERIALS AND FEATURES:Body: zinc-plated steelInternal parts: hardened and ground steelSeals: NBRMax working pressure:350barAdjustable pressure range: from 100 to 350BarMax flow rate:60L/minControl rates:4.2:1Working temperature:from -30ºC
to 120ºC
Tightness: leakage < 6 drops/minOil viscosity: 30 cSt
APPLICATIONS:Connect V1 and V2 to the pressure flow, C1 to the free flow side of the actuator and flange C2 to the actuator's side you want the flow to be blocked. V1 and V2 ports are reversible.DBV60-35-D dimensions

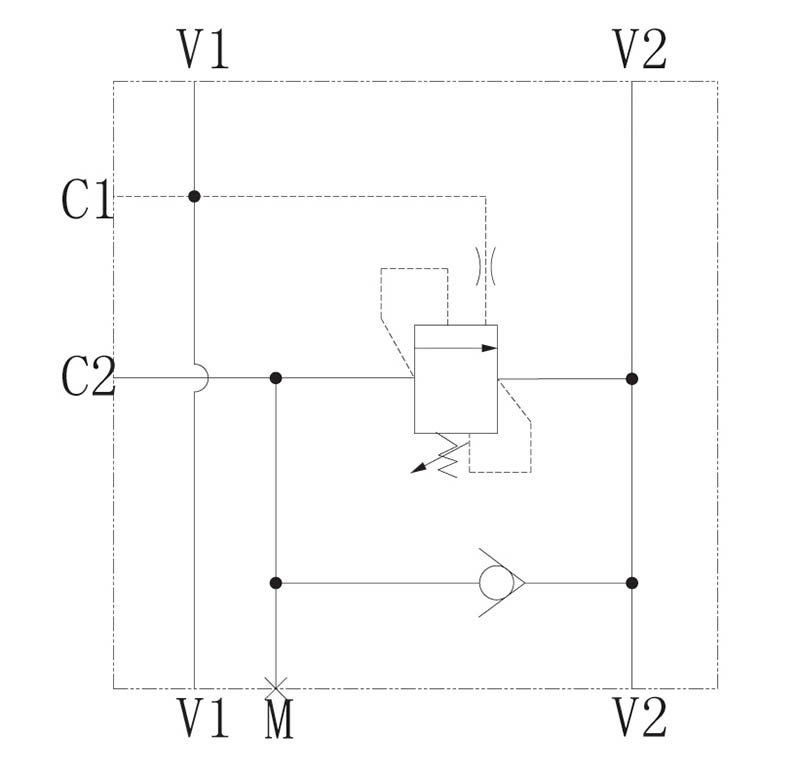

DBV60-35-D symbols
These type valves dimensions machining can be according your mounting and installation.
