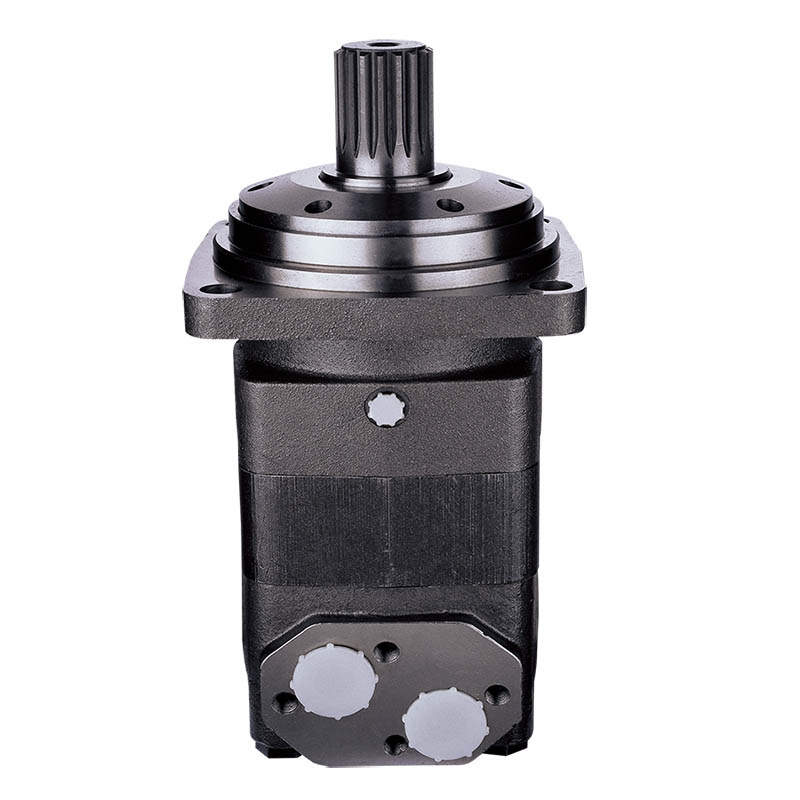

BM5 Orbit Motor With Disk Valve
BM hydraulic motor is one type of high torque Iow speed hydraulic motors, with high efficiency and long life. BM motor has a wide Speed rangee, high starting torque and rotating stable at high speed Compact and light, it can be connected to working machine directly, adapted to all kinds of Iow speed heavy load facilities.
BM hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery.
1.Hydraulic motor are one type of high torque low speed hydraulic motors, with high efficiency and long life.
2.BM motor has a wide speed range, high starting torque and rotating stable at high speed compact and light. It can be connected to working machine directly, adapted to all kinds of low speed heavy load facilities.
3.BM hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery.
This model of orbital motor can substitute for Charlynn 6000 series, Can Replace Danfoss OMV or M+S EpmV.
Choosing YUZHOU is choosing quality!
TYPE | BM5-315 | BM5-400 | BM5-500 | BM5-630 | BM5-800 | BM5-985 |
Displacement (ml/r) | 314.9 | 399.7 | 496.6 | 617.8 | 787.4 | 969.1 |
Max. | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
Pressure.Drop (Mpa) | int. | 24 | 24 | 24 | 21 | 18 | 16 |
| peak. | 28 | 28 | 28 | 24 | 21 | 18 |
Max.torque (N.m) | cont. | 873 | 1108 | 1385 | 1570 | 1773 | 1900 |
int. | 1119 | 1440 | 1783 | 1951 | 2122 | 2133 |
peak. | 1293 | 1650 | 2060 | 2249 | 2481 | 2399 |
Speed.Range(cont. )(r/min) | 510 | 9-500 | 8-400 | 6-315 | 5-250 | 5-160 |
Max.Flow(cont. )(L/min) | 160 | 200 | 200 | 200 | 200 | 160 |
Max.Output.Power(cont. )(Kw) | 32 | 40 | 40 | 40 | 35 | 24 |
Weight (kg) | 30.7 | 31.5 | 32.4 | 33.6 | 35.2 | 37.2 |
Ningbo Yuzhou Hydraulic was founded in 1995, specialized in mobile hydraulic valves and motors, Including hydraulic motors, flow sharing control valve, slewing cushion valve, balance valve, proportional valve, cartridge valve, relief valve, check valve etc, which are widely used in concrete pump machinery, excavators, mobile cranes, forklift, hydraulic winches, drilling equipment, garbage trucks, agricultural/forestry machines, Aerial Work Platforms etc
50000 + M² Factory area,
30+ Senior experts and engineers R&D team
20+ Quality control
60+National Patent and 30 innovation patent
200+ Staff
In 2005 established "Yuzhou hydraulic valves Engineering Center", has more than 30 Senior experts and engineers R&D team, Has developed 7 series of more than 300 kinds of products, and got 60 national patent which 30 innovation patent.
Yuzhou cooperated partner including XCMG, SANY, Zoomlion, LIUGONG, Manitowoc, TEREX, etc.
Yuzhou not only manufacturing for you, but also can design the hydraulic valves or hydraulic system according your demand.
