Low-effort and low-leakage, perfect for crane control.hydraulic pilot control valve for mobile equipment such as cranes, wheel loaders, excavators and dozers. Basic datasheet:Max. input pressure 100 bar
Nominal cont. flow 20L/min (20 lpm)
Weight (less handle) 1.5 kg
Fluid viscosity range 7 to 3000 cSt
Feature
1.Step Bore TechnologyHigh-flow with low-effort for operator comfort
2.Flat-top plungerNo side loading on seal for longer life
3.Cartridge designLow hysteresis and manufacturing flexibility
4.Spool dampeningHigh-response with precision and stability
5.All-ferrous spool and sleeveNo sticking in cold temperatures
6.Supply screen standardInsurance against field maintenance problems
7.Modular designQuick & easy modifications to meet OEM needs
8.Steel port plateAluminum body advantage with full torque capability
9.Port adapter designMeet world-wide standards with lowered inventory

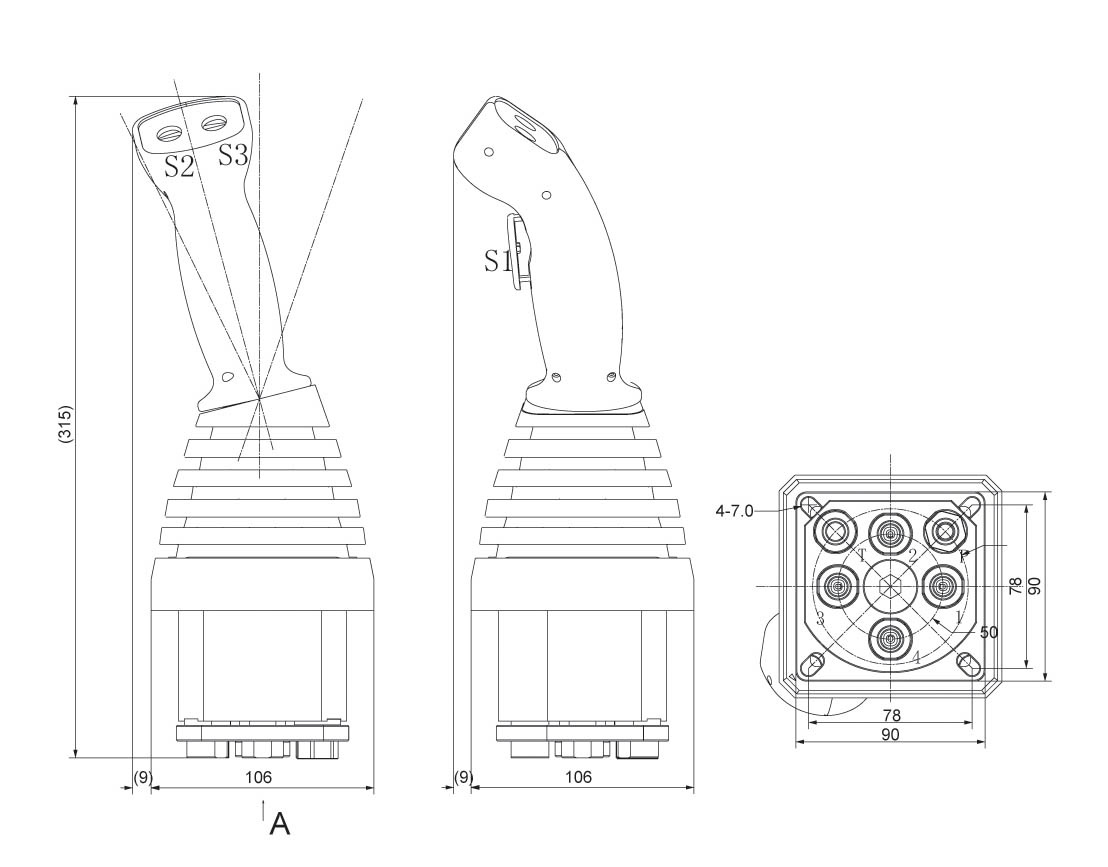

Dimensions

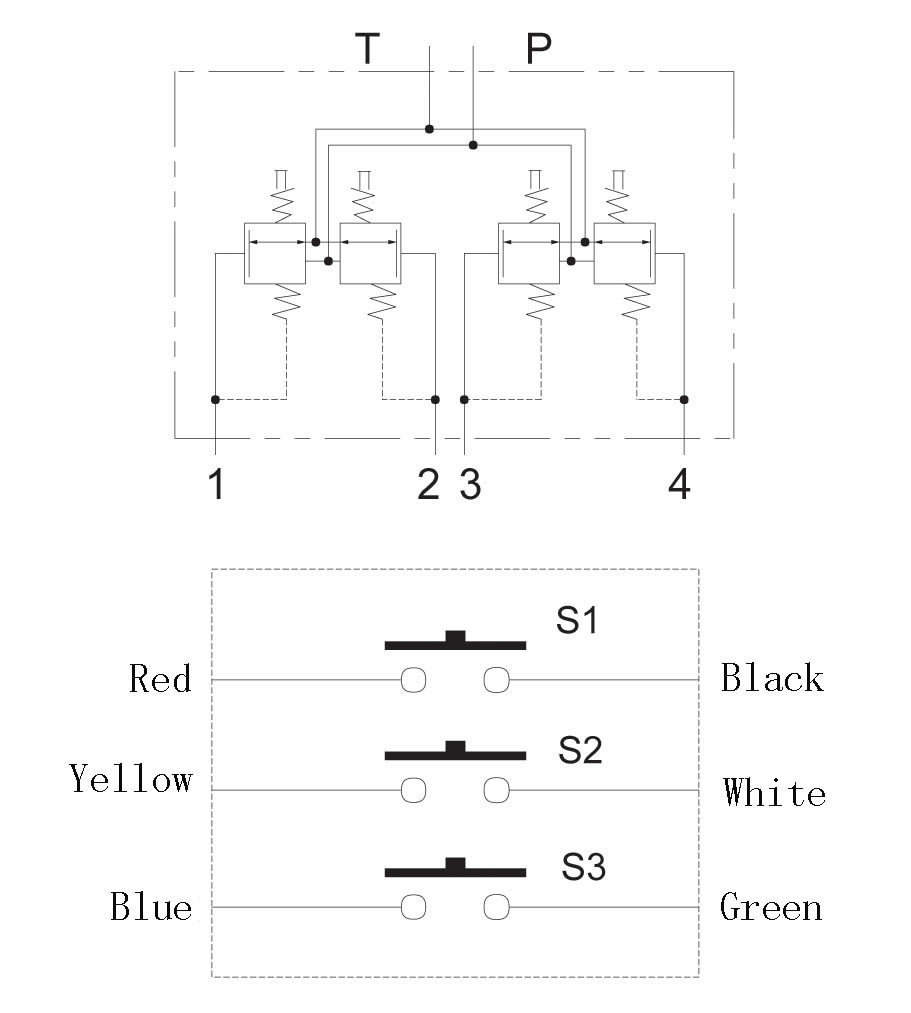

symbols
Yuzhou have own R&D department,we can special design the valves for your application.
