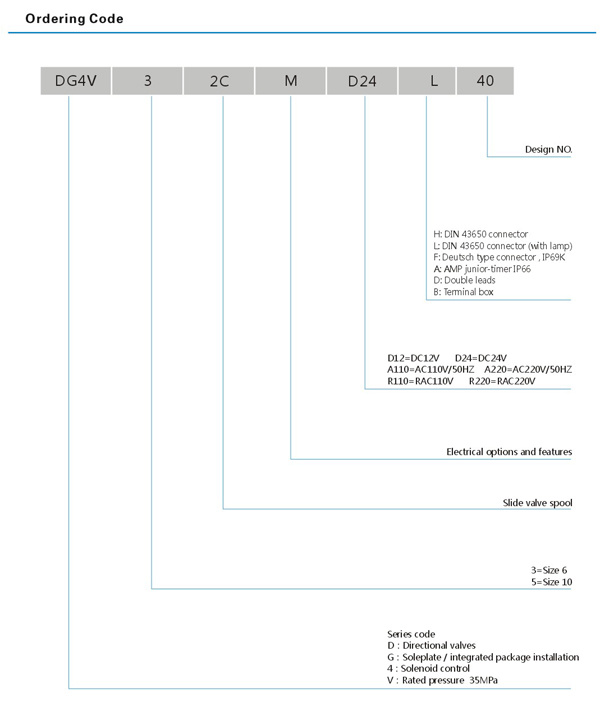

Ordering Code:
Technical Specificaton:1. General Specification:
| Weight (Double Solenoids) | kg | 2.30(DC), 2.1(AC) |
| Weight (Single Solenoid) | kg | 1.7(DC), 1.5(AC) |
| Mounting Place |
| Any Place |
| Surrounding Temperature | ºC | -20 to +50 |
2. Hydraulic Specification:
| Max. Operating Pressure (P, A, B port) | Mpa | 35 |
| Max. Pressure of T port | Mpa | 21 (dynamic state), 21 (static state) |
| Rated Flow Rate | l/min | 60 |
| Max. Flow Rate | l/min | 80 |
| Liquid medium |
| Mineral Hydraulic Oil, Phosphate Oil |
| Oil temperature Fluctuation Range | ºC | -20 to +80 |
| Oil Cleaness |
| ISO4572: B10≥75NAS1638:9grade |
| Oil Viscosity |
| ISO-VG32 (5420) cSt |
3. Electrical Specification:
| Voltage |
| DC, RAC |
| Operating Mode | ED | 100% |
| Voltage Tolerance | % | -10 to +10 |
| Reversing and Rest time | ms | AC:on 20, off40 (not including RAC )/DC: on 120, off 100 |
| Max. Reversing Frequency | Hz | 3 |
| Coil Insulation Grade |
| AC: H, DC: B |
| Max. Solenoid Temp. | ºC | AC: 180, DC: 135 |
| Solenoid Weight | kg | AC: 0.38, DC:0.65 |
| Power Voltage | V | 12 | 24 | 48 | 110 | 110 | 220 | R110 | R220 |
| Power Type |
| DC | DC | DC | DC | AC | AC | RAC | RAC |
| Power Frequency | Hz |
|
|
|
| 50 | 50 | 50/60 | 50/60 |
| Rated Power Consumption | W | 30 | 30 | 30 | 30 | 32 | 32 | 32 | 32 |
| Solenoid resistance(20ºC) | ohm | 4.8 | 18.8 | 75.2 | 395 | 27.5 | 110 | 73.6 | 313 |
| Operating current(20ºC) | A | 2.5 | 1.25 | 0.63 | 0.27 | 0.56 | 0.28 | 0.38 | 0.19 |

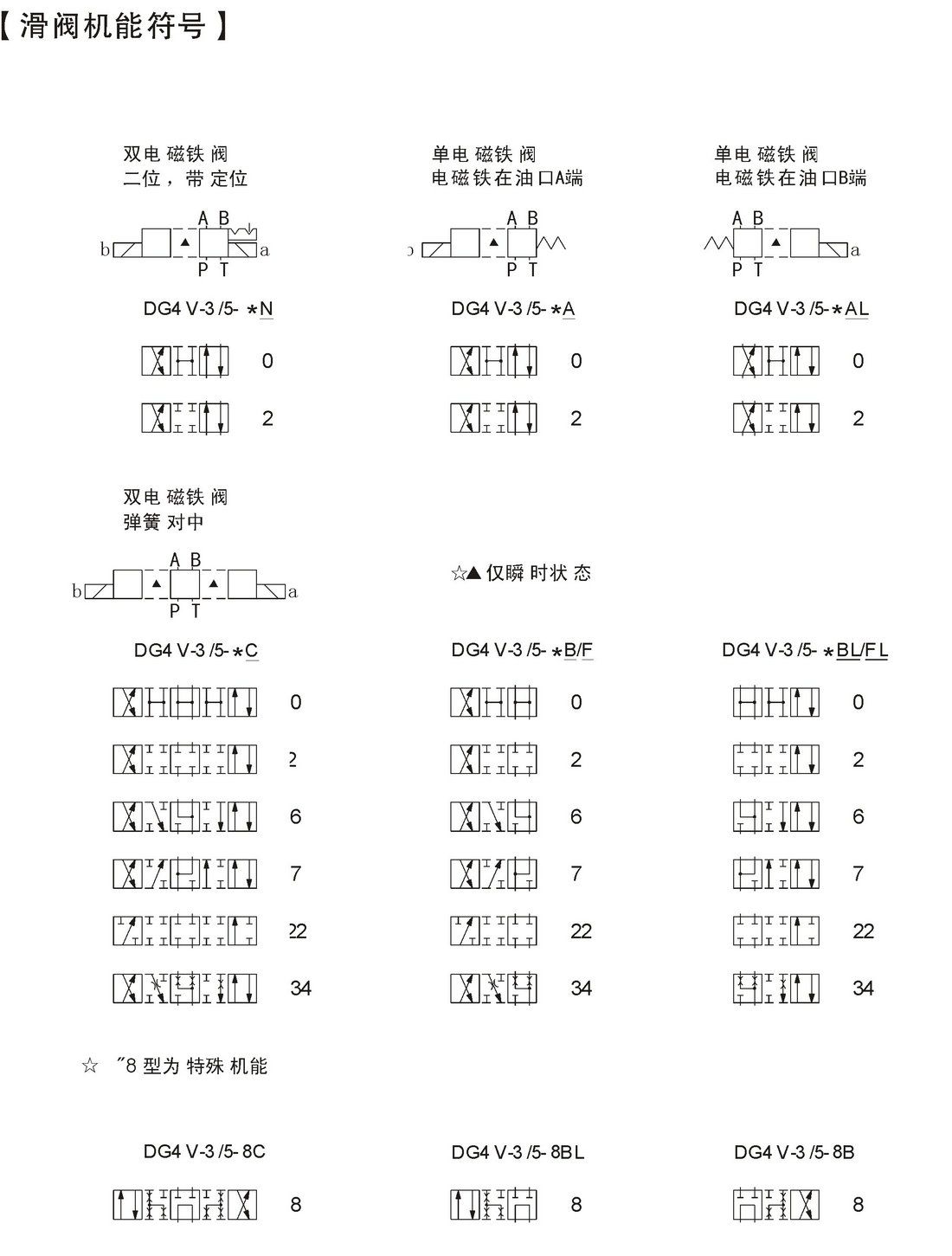

Symbol:

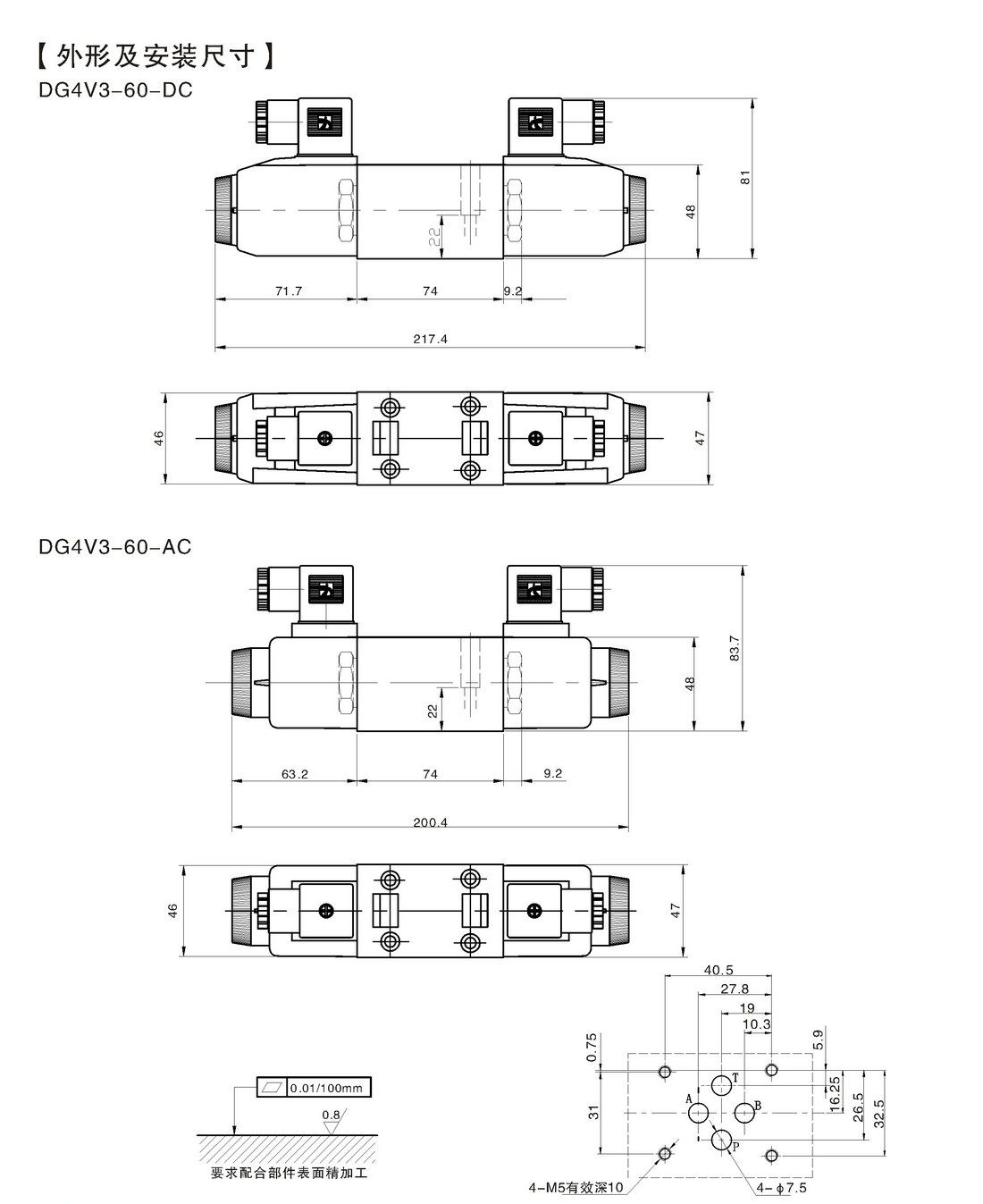

Mounting Size:
