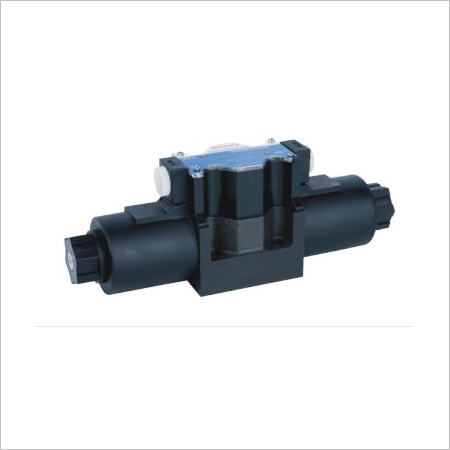

DSG series directional control valve are solenoid operated directional spool valves, these valves are used to the start, stop and direct oil flow.

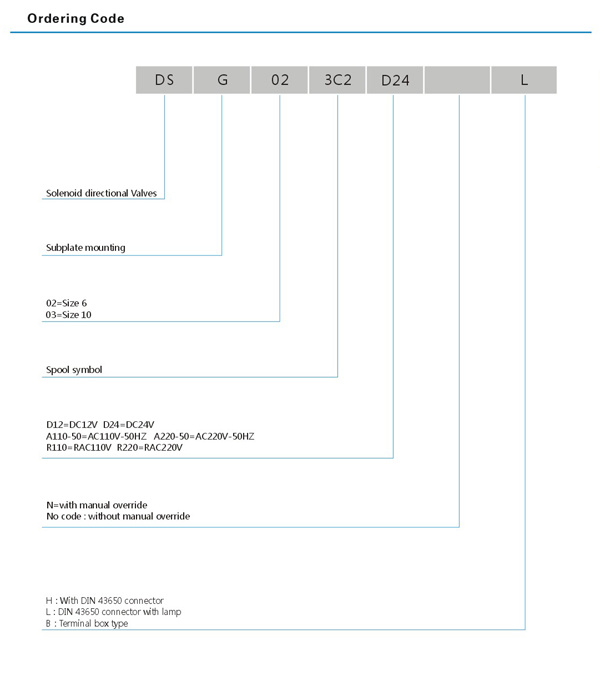

Ordering Code:

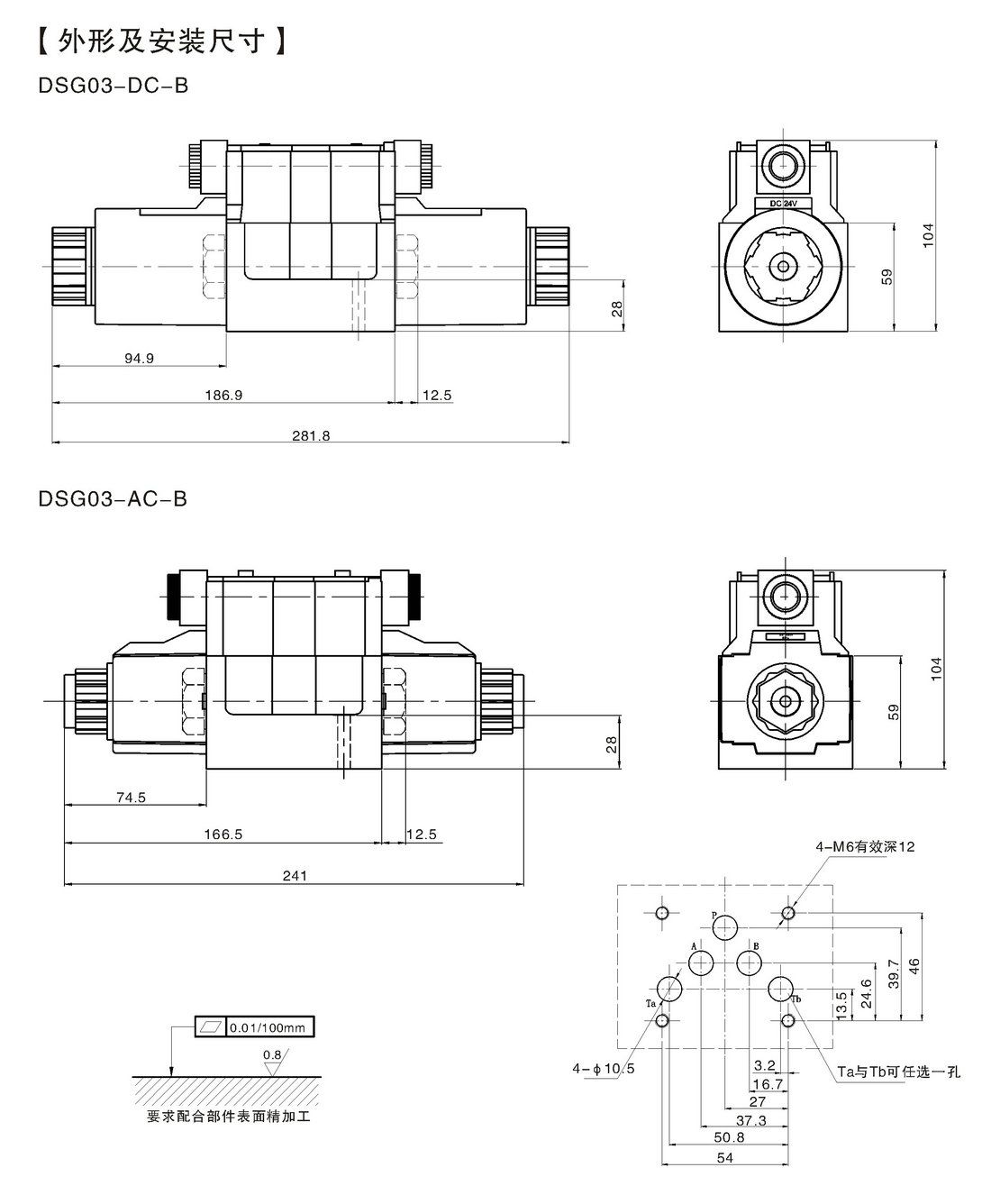

Technical Specificaton:1. General Specification:| Weight (Double Solenoids) | kg | 4.8 |
| Weight (Single Solenoid) | kg | 3.50 |
| Mounting Place |
| Any Place |
| Surrounding Temperature | ºC | -20 to +50 |
| Max. Operating Pressure | Mpa | 31.5 |
| Max. Pressure of T port | Mpa | 16 |
| Rated Flow rate | l/min | 63 |
| Max. Flow Rate | l/min | 120 |
| Liquid medium |
| Mineral Hydraulic Oil, Phosphate Oil |
| Oil temperature Fluctuation Range | ºC | -20 to +80 |
| Oil Cleaness |
| ISO4572: B10≥75NAS1638:9grade |
| Oil Viscosity |
| ISO-VG32 (5420) cSt |
| Voltage |
| DC, RAC |
| Operating Mode | ED | 100% |
| Voltage Tolerance | % | -10 to +10 |
| Reversing and Rest time | ms | on 150, off80 (not including RAC ) |
| Max. Reversing Frequency | Hz | 3 |
| Solenoid Insulation Grade |
| B |
| Max. Solenoid Temp. | ºC | 130 |
| Solenoid Weight | kg | 0.82 |
| Power Voltage | V | 12 | 24 |
| 110 | 110 | 220 |
| Power Type |
| DC | DC |
| DC | RAC | RAC |
| Power Frequency | Hz |
|
|
|
| 50/60 | 50/60 |
| Rated Power Consumption | W | 46 | 46 |
| 46 | 54 | 54 |
| Solenoid resistance(20ºC) | ohm | 3.2 | 12.5 |
| 1050 | 49 | 196 |
| Operating current(20ºC) | A | 3.75 | 1.92 |
| 0.21 | 0.56 |
0.28
|
