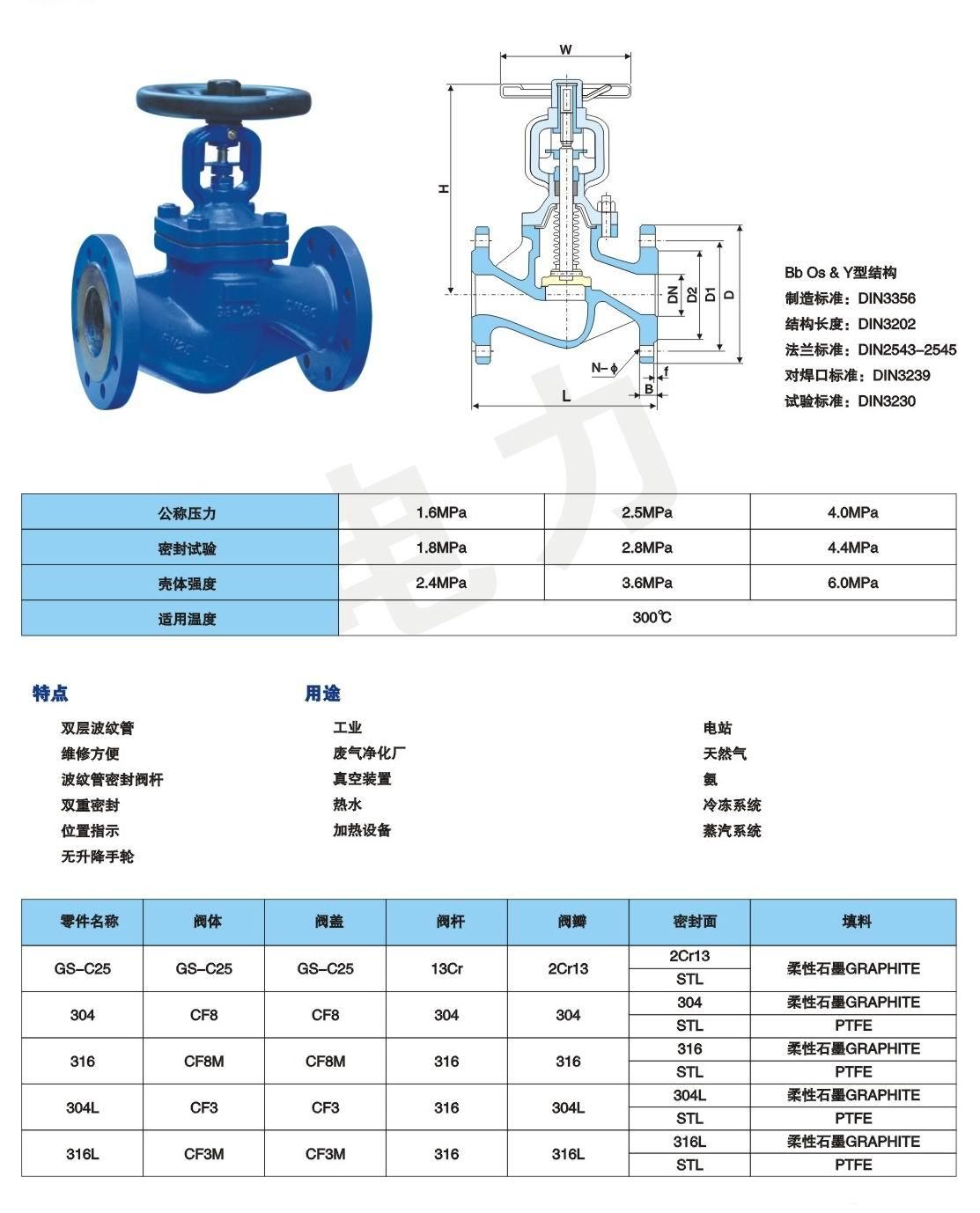

DIN CF8/Carbon Steel Bellow Seal Globe Valves with CE
Price: |
US $ 34-567/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
20/Piece |
Pay Type: |
L/C,T/T |
Main parts and materials :1 . Body & Bonnet : Grey iron GG252 . Disc :A105+2Cr13, GG25+2Cr133 . Stem :Stainless steel4 . Seat Ring : Stainless steelPressure: PN16Dimeter: DN15-300Standards :Face to Face : DIN3202-F1Flange End :DIN2532/2533Test :Nominal Pressure(MPa) : 1.6Shell Test(MPa): 2.4Seal Test(MPa) : 1.8Nominal diameter(MM): DN15-300Normal FeatureSize Range | NPS2"~16" DN50~200mm |
Pressure | PN40 |
Material | WCB,WC6,LCB,WC9,CF8,CF8M,CF3 and CF3M |
Connection | Flanged, |
Feature | Full Bore, streamline, through way, bellow sealed |
Temperature | -160ºC~550ºC |
Actuator | Hand wheel |
Application | Oil and gas pipeline,Drainage system,Chemical Plant |
Manufacture StandardDesign standard | DIN 3356-82 |
Face to face | DIN3202 |
Flanged End Connection | DIN2543-DIN2546 |
Inspection and test | DIN3230-75 |
Prod Model: |
WJ41H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dn(Mm): |
50-600 |
Structure: |
Through Way Globe Valve |
Sealing Form: |
Bellows Globe Valve |
Stem Thread Position: |
Inside Screw Stem Globe Valve |
Application: |
Oxygen Globe Valve |
Standard: |
DIN |
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
