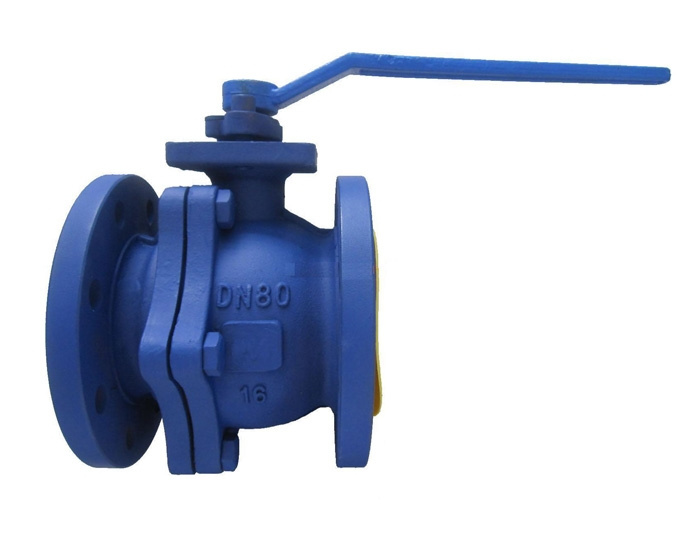

DIN 2-PC Ball Valve:
1.Technical Specifications
(1) Design Standard: DIN EN3357-1
(2) Face to Face Dimension: DIN EN588-1:1995
(3) End Flange Dimension: DIN EN1092-1:2002
(4) Structures: 2-PC Type
(5) Material of Body: G.G, GS-C25, S.S 304, S.S 316
(6) Pressure Rating: PN16, PN25, PN40
(7) Test Standard: DIN EN12266:2003
Side entry type stainless steel floating ball valve Design Features
1. Anti blow-out stem : In order to prevent leakage resulting from burnout of packing set of the stem in a fire, thrust bearing is set at the contact position of the shoulder at lower part of the stem and valve body.
2. Anti static device, thus static electricity is conducted to ground and system safety is secured.
3. Fire safe design API 607 Soft Seat or metal seat, Side entry.
Product Description
name of commodity: Class 150~600 LB Floating Ball Valve
Nominal diameter:1/2"-12"
Nominal pressure:150Lb-600Lb , 10K-40K
Applicable temperature: -196~250ºC, 250~425ºC
Available material: CS, SS, FS,304,316,316 L, CF8, CF8M , chrome molybdenum steel , Low temperature steel.
Driving type :Electric, Pneumatic, Worm wheel, manual, hydraulic .(Note: Pictures of products for worm gear drive)
Applicable medium: water, gas, oil product, Food, medicines, chemicals natural gas and corrosive medium as acid, alkali, etc.
Floating Ball Valve Standards compliance:
Design and Manufacture: API 608, API 6D
Face to face(end to end): ANSI B16.10, API 6D
Flanged connection: ANSI B16.5
Fire-safe: API 607,API 6FA
Butt welded end: ANSI B16.25
Test and inspection: API 598,API 6D
Class 150~600 LB Floating Ball valve Advantage:
1. The fluid resistance is small, its resistance coefficient with section of equal length.
2. Simple structure, small volume, light weight.
3. Compact and reliable, the widespread use of plastic ball valve sealing surface of materials, good sealing, also has been widely used in the vacuum system.
4. Easy to operate, open and close quickly
5. Easy maintenance, simple structure of ball valve, sealing ring, which generally remove replacement is more convenient.
6. In the fully open or fully closed, the ball and seat sealing surface and the dielectric isolation, medium through, can not cause the valve sealing surface erosion.
7. Applicable scope is wide, size from small to several millimeters, big to a few meters, from high vacuum to high pressure can be applied.
Class 150~300 floating ball valve dimensions
Dimensions |
Class 150 |
Size | inch | 1/2 | 3/4 | 1 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 6 | 8 |
L-RF | mm | 108 | 117 | 127 | 165 | 178 | 191 | 203 | 229 | 394 | 457 |
L1-BW | mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 |
L2-RTJ | mm | - | - | 140 | 178 | 191 | 203 | 216 | 241 | 406 | 470 |
B | mm | 13 | 19 | 25 | 38 | 51 | 64 | 76 | 102 | 152 | 203 |
H | mm | 65 | 70 | 80 | 95 | 110 | 135 | 145 | 170 | 235 | 275 |
K | mm | 150 | 155 | 160 | 180 | 200 | 225 | 325 | 350 | 500 | 600 |
WT. | Kg | 3 | 4 | 5 | 8 | 12 | 21 | 26 | 43 | 80 | 155 |
Dimensions |
Class 300 |
Size | inch | 1/2 | 3/4 | 1 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 6 | 8 |
L-RF | mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 403 | 502 |
L1-BW | mm | 140 | 152 | 165 | 191 | 216 | 241 | 283 | 305 | 457 | 521 |
L2-RTJ | mm | 151 | 165 | 178 | 203 | 232 | 257 | 298 | 321 | 419 | 518 |
B | mm | 13 | 19 | 25 | 38 | 51 | 64 | 76 | 102 | 152 | 203 |
H | mm | 70 | 85 | 90 | 105 | 120 | 145 | 160 | 195 | 250 | 290 |
K | mm | 155 | 160 | 180 | 200 | 225 | 325 | 350 | 500 | 600 | 700 |
WT. | Kg | 3 | 5 | 7 | 13 | 15 | 28 | 32 | 55 | 105 | 17 |
CLASS 150~300 Floating ball valve materials
Materials |
NO. | Part name | Material |
13 | Handle | Carbon steel |
12 | Lock nut | Carbon steel |
11 | Gland nut | Carbon steel |
10 | Thrust washer | PTEF/NYLON |
09 | Gland bush | Stainless steel |
08 | Stem | Stainless steel |
NO. | Part name | WCB | LCB |
07 | Stud and nut | A193 Gr B7/A194 Gr 2H | A320 Gr L7/A194 Gr 4 |
06 | Packing | Graphite/ptfe | Graphite/ptfe |
05 | Ball seat | PTFE/RPTFE/NYLON | SPTFE/RPTFE/NYLON |
04 | Gasket | Graphite/spiral wound | Graphite /spiral wound |
03 | Ball | A182 F6a | A182 F304 |
02 | R-body | A216 Gr WCB | A352 Gr LCB |
01 | L-body | A216 Gr WCB | A352 Gr LCB |
NO. | Part name | CF8 | CF8M |
07 | Stud and nut | A193 Gr B16/A194 Gr 4/7 | A193 Gr B7/A194 Gr 2H |
06 | Packing | Graphite/ptfe | Graphite/ptfe |
05 | Ball seat | PTFE/RPTFE/NYLON | PTFE/RPTFE/NYLON |
04 | Gasket | Graphite /spiral wound | Graphite /spiral wound |
03 | Ball | A182 F304 | A182 F316 |
02 | R-body | A351 Gr CF8 | A351 Gr CF8M |
01 | L-body | A351 Gr CF8 | A351 Gr CF8M |
