Application: Petrochemical, Power Plant, Steel Mill, Plastic and Paper industries.

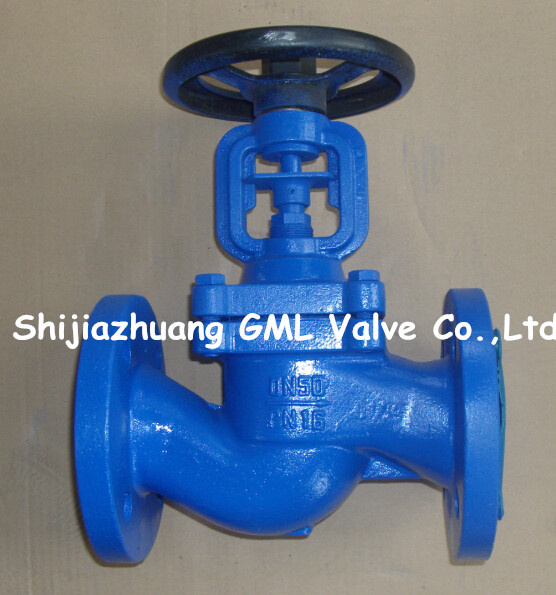

Belows are the details of the DIN bellows sealed globe valve made by our company:
Technical Specifications
(1)Design Standard: DIN EN 13709-2003
(2)Face to Face Dimensions: DIN EN588-1: 1995
(3)End Flange Dimension: DIN EN 1092-1: 2002
(4)Test Standard: DIN EN 12266: 2003
| Pressure | 1.6MPa | 2.5MPa | 4.0MPa |
| Shell Test | 2.4MPa | 3.8Mpa | 6.0MPa |
| Seal Test Water | 1.8MPa | 2.8MPa | 4.4MPa |
| Seal Test Air | 0.6MPa |
| Temperature | (-)20 - 425ºC |
| Medium | W.O.G |
| 1.Body | GG GS-C25 SS304 SS316 | 8.Gland | 25#,F304,F316 |
| 2.Disc | C.C+13Cr SS304 SS316 | 9.Cap | 25# |
| 3.Pin | F304 F316 | 10.Gland | 13Cr,304,316 |
| 4.Stem | C.C+13Cr SS304 SS316 | 11.Bolt | B7,B8,B8M |
| 5.Bellows | F304 F316 | 12.Nut | 2H,A194-8,8M |
| 6.Bonnet | GG GS-C25 SS304 SS316 | 13.Gasket | Graphite,PTFE |
| 7.Packing | Graphite,PTFE | ------- | ------- |
DN | PN16 | Weight(KG) | PN25 | Weight(KG) |
| L | D | W | N- Φ | H | L | D | W | N- Φ | H |
| 15 | 130 | 95 | 120 | 4 × 14 | 185 | 4.0 | 130 | 95 | 120 | 4 × 14 | 185 | 4.0 |
| 20 | 150 | 105 | 120 | 4 × 14 | 185 | 4.5 | 150 | 105 | 120 | 4 × 14 | 185 | 4.5 |
| 25 | 160 | 115 | 120 | 4 × 18 | 195 | 5.0 | 160 | 115 | 120 | 4 × 18 | 195 | 5.0 |
| 32 | 180 | 140 | 140 | 4 × 18 | 225 | 7.0 | 180 | 140 | 140 | 4 × 18 | 225 | 7.5 |
| 40 | 200 | 150 | 160 | 4 × 18 | 230 | 9.0 | 200 | 150 | 160 | 4 × 18 | 230 | 9.5 |
| 50 | 230 | 165 | 180 | 4 × 18 | 235 | 12 | 230 | 165 | 180 | 4 × 18 | 235 | 12.5 |
| 65 | 290 | 185 | 180 | 8 × 18 | 250 | 18 | 290 | 185 | 180 | 8 × 18 | 250 | 19 |
| 80 | 310 | 200 | 200 | 8 × 18 | 270 | 23 | 310 | 200 | 200 | 8 × 18 | 270 | 24 |
| 100 | 350 | 220 | 250 | 8 × 18 | 345 | 41 | 350 | 235 | 250 | 8×22 | 345 | 43 |
| 125 | 400 | 250 | 300 | 8 × 18 | 380 | 54 | 400 | 270 | 300 | 8×26 | 380 | 57 |
| 150 | 480 | 285 | 300 | 8 × 18 | 400 | 90 | 480 | 300 | 300 | 8×26 | 400 | 97 |
| 200 | 600 | 340 | 400 | 8 × 18 | 585 | 145 | 600 | 360 | 400 | 12×26 | 585 | 150 |
DN | PN40 | Weight(KG) |
| L | D | W | N- Φ | H |
| 15 | 130 | 95 | 120 | 4 × 14 | 185 | 4.0 |
| 20 | 150 | 105 | 120 | 4 × 14 | 185 | 4.5 |
| 25 | 160 | 115 | 120 | 4 × 18 | 195 | 5.0 |
| 32 | 180 | 140 | 140 | 4 × 18 | 225 | 8.0 |
| 40 | 200 | 150 | 160 | 4 × 18 | 230 | 10.0 |
| 50 | 230 | 165 | 180 | 4 × 18 | 235 | 13.5 |
| 65 | 290 | 185 | 180 | 8 × 18 | 250 | 20 |
| 80 | 310 | 200 | 200 | 8 × 18 | 270 | 25 |
| 100 | 350 | 235 | 250 | 8×22 | 345 | 45 |
| 125 | 400 | 270 | 300 | 8×26 | 380 | 80 |
| 150 | 480 | 300 | 300 | 8×26 | 400 | 98 |
| 200 | 600 | 375 | 400 | 12×30 | 585 | 158 |
