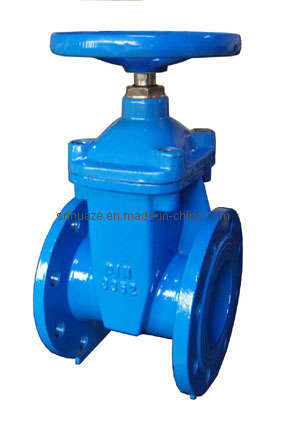

DIN f4(short body) gate valve, d. I body, resilient seated, EPDM gaskets lt type, fbe coated, pn16 lighten weight type.
C/w handwheel or operator
Size: Dn50-dn150
*This valve is designed and manufactured |
according DIN3352 F4, EN558-1 Serie 14 |
*Tested according to EN1074-1, 2000; |
|
EN1074-2, 2000 |
|
|
|
*Working pressure: 16kg/cm2 |
|
|
*Shell test pressure: 24kg/cm2 |
|
*Seat test pressure: 18kg/cm2 |
|
*Media: Water, neutral oil |
|
|
*Working temperature: 0.6-52oC |
|
*External and internal coating: 100% |
|
fusion-bonded epoxy |
|
|
*Flange drilled according to DIN |
|
PN10, PN16; EN1092 PN10, PN16 |
|
