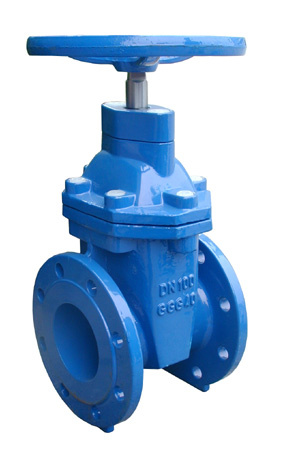

DIN3352 Resilient Seated Gate Valve, DIN3202 F4, Flanged Ends, Non-Rising Stem, PN10/16.
Ductile Iron Body and Bonnet, Stainless Steel Stem, Ductile Iron Wedge EPDM rubber coated, inside/outside Fusion Bonded Epoxy.
Flange to Flange dimension comply with DIN3202 F4.
Designed fully comply with DIN3352.
DN50mm to DN300mm
DN |
L |
H |
D |
K |
D1 |
n-d |
b |
f |
W |
WEIGHT(KG) |
50 |
150 |
272 |
165 |
125 |
98 |
4-19 |
19 |
3 |
160 |
15 |
65 |
170 |
317 |
185 |
145 |
118 |
4-19 |
19 |
3 |
200 |
18 |
80 |
180 |
335 |
200 |
160 |
132 |
8-19 |
19 |
3 |
200 |
21 |
100 |
190 |
357 |
220 |
180 |
156 |
8-19 |
19 |
3 |
254 |
24 |
125 |
200 |
410 |
250 |
210 |
184 |
8-19 |
19 |
3 |
315 |
34 |
150 |
210 |
446 |
285 |
240 |
211 |
8-23 |
19 |
3 |
315 |
44 |
200 |
230 |
530 |
340 |
295 |
266 |
12-23 |
20 |
3 |
356 |
62 |
250 |
250 |
635 |
405 |
355 |
319 |
12-28 |
22 |
3 |
406 |
99 |
300 |
270 |
718 |
460 |
410 |
370 |
12-28 |
24.5 |
4 |
406 |
140 |
|
|
|
|
|
|
|
|
|
|
|
