Product Description

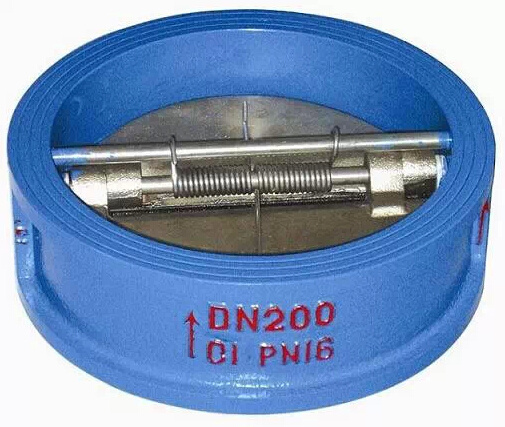

Double plate check valve wafer type
1.Products Name:DUAL PLATE CHECK VALVE WAFER TYPE
2.working pressure:PN10/16/25
3.Tests:API598 ;DIN3230
4.Flange standard:DIN2501 PN10/PN16 ;BS4504 PN10/PN16;
BS10 TABLE"D"/"E" /JIS2220 10K/16K;ANSI125/150
5.Face to face:ANSI125/150 ;DIN3203 K3-1999
6.Applications:Water,industrial systems
7.Working temp:EPDM:-10°c~+120°c/NBR:-10°c~+80°c/VITON:-23°c~+150°c/
8.Medium:Fresh water ,sea water ,waste water,food stuff,steam,all kinds of oil,all kinds of acid and alkaline liquid etc
MATERIALS LIST
Body | Cast iron GG25 |
| Ductile Iron GGG40 |
| Stainless Steel CF8M/SS316 |
| Disc | Stainless Steel SS316/SS304 |
| AL Bronze |
| Carbon Steel |
| Seat Gasket | Rubber NBR/EPDM |
| Spring | Stainless Steel |
| Axle | Stainless Steel |
| Washer | TEFLON |
