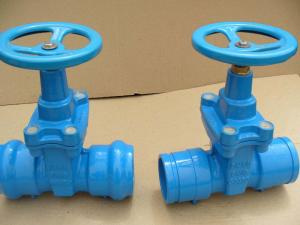

Socket End Resilient Seat Gate Valve
1. Design confirms to: DIN3352, BS5163, SABS 664 SABS 665
2. Face to Face: EN 558, SABS 664
3. Socket ends: Fitted with NBR/EPDM rubber seal to suit PVC-pipes
4. Normal pressure: 1.0MPa, 1.6MPa, 2.5MPa
5. Test & Inspection: DIN 3230, BS 6755
6. Suitable medium: Water and neutral liquid
7. Working temperature: NBR≤ 80, EPDM≤ 120
8. Operator: Handwheel, nut, extension stem, gear operator
MATERIAL LIST
No. PART MATERIAL
1 BODY GGG40/GGG50
2 WEDGE GGG40/GGG50/NBR/EPDM
3 STEM NUT BRASS/BRONZE/59-1/CZ132/5-5-5
4 STEM 2Cr13/420/304
5 BONNET GGG40/GGG50
6 GLAND BRASS 59-1
7 HANDWHEEL GGG40/GGG50
DIMENSIONS(mm)
DN H L L1 A
50 295 335 88 66
65 299 335 93 79
80 330 335 93 93
100 375 355 110 113
125 456 375 117 127
125 456 375 117 143
150 545 405 135 163
200 570 450 155 203
200 570 450 155 228
250 640 450 155 253
300 790 500 174 318
Dimension Unit:mm |
| DN |
| 65 |
| 80 |
| 100 |
| 125 |
| 150 |
| 200 |
| 250 |
| 300 |
|
|
| L |
| 190 |
| 203 |
| 229 |
| 254 |
| 267 |
| 292 |
| 330 |
| 356 |
|
|
| H |
| 452 |
| 485 |
| 530 |
| 620 |
| 702 |
| 820 |
| 980 |
| 1100 |
|
|
| D |
| 76 |
| 89 |
| 114 |
| 140 |
| 165 |
| 219 |
| 325 |
| 325 |
|
|
