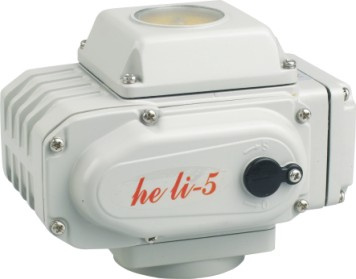

Electric Actuator Hl-05
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Electric actuator
1 Product name: Electric Valve actuator
2 Brand name: HL
3 Input signal: 4-20mA, 0-10VDC or 1-5VDC
4 Adopted power: AC24V AC110V, 220V~240V, AC380~420V 50/60Hz
5 Time: 9s/15s/20s/30s/60s
6 Output torque: 150/250/300/500N. M
7 Weight: 2.6kg
8 Packing: Export carton

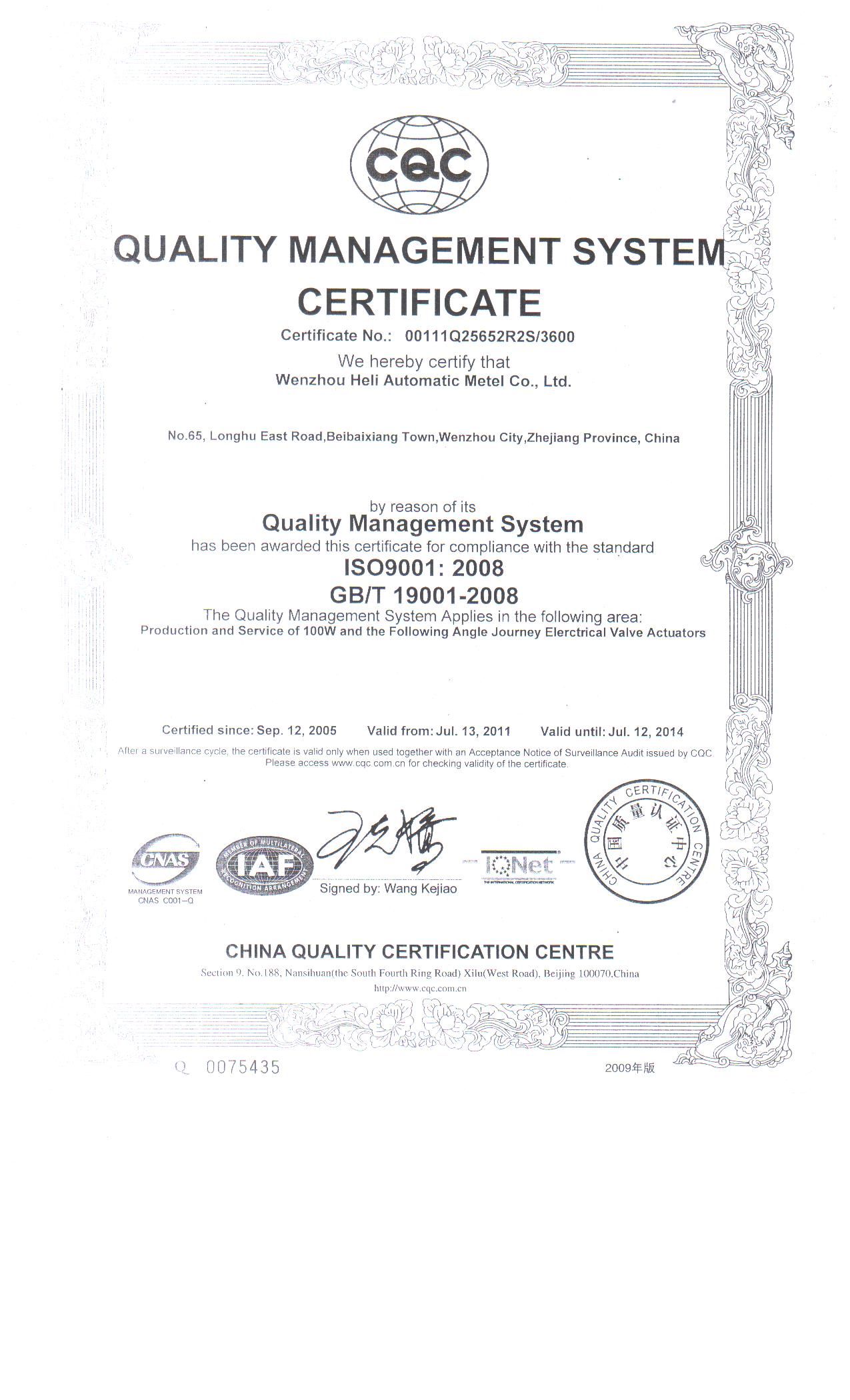

Certificate: IQNET, CE, CQC(ISO9000/9001/9004/19011: 2000)
Digital enactment, no maintenance, safe and convenient to use, perfect after-sale service.
Model
Power
Performance |
HL-05 |
|
DC24V |
AC24V |
AC110V |
AC220~240V |
AC380~420V |
|
Motor power |
10W |
|
Rated current |
2A |
2.2A |
0.48A |
0.24A |
0.15A |
|
Output torque |
30Nm |
50Nm |
15Nm/30Nm/50Nm |
|
Action time |
6s |
10s |
10s/20s/30s |
|
Circuit control |
B .S. R. H. A .K. D. T. |
|
Rotary angle |
0~360° |
|
Weight |
2.2KG |
Voltage-withstanding
valve |
500VAC/1minuteR |
1500VAC/1minute |
Insulated
resistance
|
100MΩ/300VDC |
100MΩ/500VDC |
Certification
|
CE, ISO9000~2000, SGS, IQNET |
| Prod Model: |
HL-05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Flange |
| Application: |
Water Industrial Usage |
Wenzhou Heli Automatic Meter Co., Ltd. (HL) is a High-tech enterprises specialized in manufacturing electric actuator, pneumatic actuator, rotary air damper actuator, integrating scientific research, production, distribution and service.
Founded in 1999, covers an areas of 13118 square meters. HELI company consistently pays attention to product quality and all of HELI products have passed the CE certification, the test of Shanghai industrial Automatic Instrument Institute with every performance and index qualified, etc.
HELI will bring you much more convenience. By consistently keeping the management conception of taking market as guide, serving by quality and credit, and developing by technology and innovation. Our company guarantees to realize the goal of double-win with user's benefits as precondition. In the future, HELI people will actively take the challenge with excellent quality, scientific management and perfect service.
Sincerely welcome friends all over the world to come here for negotiation and cooperation.
