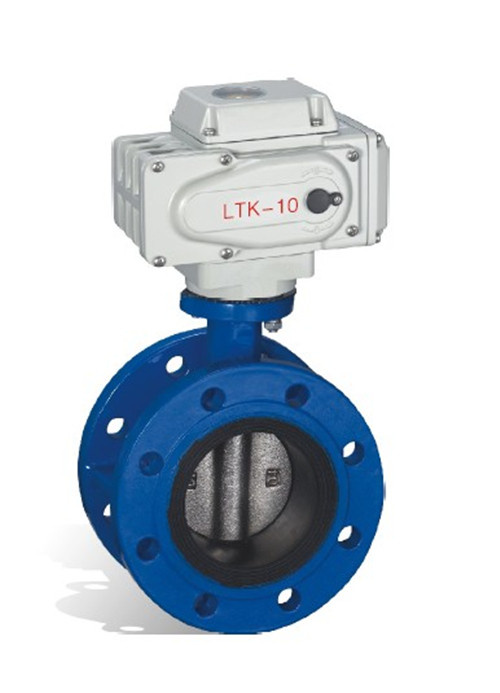

Electric Flange Butterfly Valve Hl-10
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product description- Powerful function: intelligently, proportionally type, switch type, it has all kinds of signal output type you wish for;
- Small volume: the volume is just about thirty percent of product' of same kind;
- Be portable: its weight is just about thirty percent of product' of same kind;
- Beautiful appearance: aluminum alloy die-casting housing, fine and evenly, reducing electromagnetic disturbance;
- Wear-resistance: the worm wheel output axle' integration design avoids the stitch closure in connection place of key, the transmission precision high, forged with special copper alloy, whit features of high strength and super wear-resistance;
- Safety guarantee: has passed AC 1500V pressure-withstand test, F grade of insulated electric machine, which guarantees the operation safety;
- Easily forming complete set: adopting single-phase power, simplifying wire connection from outside; it also can be 380VDC power;
- Using simply: don't need add-oil, point-check, and owns performance of waterproof and antirust, could be installed at any angle;
- Protection appliance: double position-limiting, over hot protection, overload protection(optionally);
- Many kinds of speed: whole stroke time has many kinds as 9s,13s,15s,30s,50s,100s,150s(before dispatching from the factory in order to establish);
- Antirust and anticorrosion: complete machine support, both coupling and screw are made of stainless steel;
- Intelligently numerically control: the function of intelligently controlling module' height is integrated into electric appliance' body, the externally connected localizer is not required. Numerically setting, numerically regulating, highly accurate, self diagnosis, many functions on one machine.
1. Delivery time
10~15 days after the receipt of payment
2. Payment Terms
100% by T/T in advance
3. Supply Ability
200 Set/Sets per Week 2, 000PCS/month
4. MOQ: 1 PCS
Model
|
HL-10
|
Power
|
DC12V
|
DC24V
|
DC220V
|
AC24V
|
AC110V
|
AC220V
|
AC380V
|
Motor power
|
40W,23W
|
Rated current
|
4.8A
|
2.4A
|
0.32A
|
3A
|
0.64A
|
0.24A
|
0.19A
|
Output torque
|
100Nm
|
50Nm/60Nm/100Nm
|
Action time
|
10S
|
13S/15S/20S/30S
|
Circuit control
|
B,S,R,H,A,K,D,T
|
Rotary angle
|
0-90°
|
Weight
|
4.5
|
Voltage-with standing value
|
500VAC/1min
|
1500VAC/1min
|
Insulated resistance
|
100MΩ/300VDC
|
100MΩ/500VDC
|
Protection class
|
IP67
|
Surrounding Temperature
|
-25°C~60°C(The other temperature can be customized)
|
Installation angle
|
Any angle
|
Case material
|
Aluminium die-casting components
|
Optional function
|
Overload protection, heater
|
| Prod Model: |
HL-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Flange |
| Working Temperature: |
Medium Temperature (',120??C
|
| Application: |
Water Industrial Usage |
Wenzhou Heli Automatic Meter Co., Ltd. (HL) is a High-tech enterprises specialized in manufacturing electric actuator, pneumatic actuator, rotary air damper actuator, integrating scientific research, production, distribution and service.
Founded in 1999, covers an areas of 13118 square meters. HELI company consistently pays attention to product quality and all of HELI products have passed the CE certification, the test of Shanghai industrial Automatic Instrument Institute with every performance and index qualified, etc.
HELI will bring you much more convenience. By consistently keeping the management conception of taking market as guide, serving by quality and credit, and developing by technology and innovation. Our company guarantees to realize the goal of double-win with user's benefits as precondition. In the future, HELI people will actively take the challenge with excellent quality, scientific management and perfect service.
Sincerely welcome friends all over the world to come here for negotiation and cooperation.
