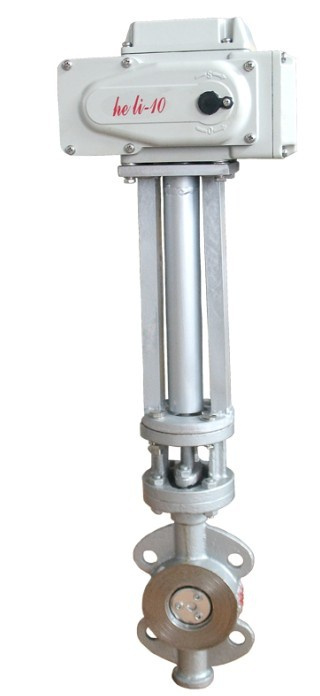

Electric Metallic Seal Wafer Butterfly Valve

Electric Metallic Seal Wafer Butterfly Valve
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Standard or Nonstandard: Standard
Structure: Butterfly
Pressure: Medium Pressure
Power: Electromotion
Material: WCB/SS
Temperature of Media: High Temperature
Media: Water/steam
Port Size: 50Nm/60Nm/100Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HL-10
Brand Name: HELI
Certificate: CE, CQC, ISO9001: 2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Port: Ningbo, Shanghai
Packaging Details: In Carton
Delivery Time: In 15 days after the payment
Payment Terms: T/T
Supply Ability: 200 Set/Sets per Week


Model




HL-10


Power


DC12V


DC24V


DC220V


AC24V


AC110V


AC220V


AC380V


Motor power


40W,23W


Rated current


4.8A


2.4A


0.32A


3A


0.64A


0.24A


0.19A


Output torque


100Nm


50Nm/60Nm/100Nm


Action time


10S


13S/15S/20S/30S


Circuit control


B,S,R,H,A,K,D,T


Rotary angle


0-90°


Weight


4 Kg


Voltage-with standing value


500VAC/1min


1500VAC/1min


Insulated resistance


100MΩ/300VDC


100MΩ/500VDC


Protection class


IP67


Surrounding Temperature


-25°C~60°C(The other temperature can be customized)


Installation angle


Any angle


Case material


Aluminium die-casting components


Optional function


Overload protection, heater


Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Work Pressure: High Pressure (',10.0mpa< Pn <80.0mpa)
Material Of Seal Surface: Metal Hard Sealed
Connection Form: Wafer
Working Temperature: Normal Temperature (',-40??C
Application: Industrial Usage
Wenzhou Heli Automatic Meter Co., Ltd. (HL) is a High-tech enterprises specialized in manufacturing electric actuator, pneumatic actuator, rotary air damper actuator, integrating scientific research, production, distribution and service.

Founded in 1999, covers an areas of 13118 square meters. HELI company consistently pays attention to product quality and all of HELI products have passed the CE certification, the test of Shanghai industrial Automatic Instrument Institute with every performance and index qualified, etc.

HELI will bring you much more convenience. By consistently keeping the management conception of taking market as guide, serving by quality and credit, and developing by technology and innovation. Our company guarantees to realize the goal of double-win with user's benefits as precondition. In the future, HELI people will actively take the challenge with excellent quality, scientific management and perfect service.

Sincerely welcome friends all over the world to come here for negotiation and cooperation.
