| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | T/T,Western Union |
General Characteristics
l Complete range of solenoid valves for refrigeration, freezing and air conditioning plant.
l Supplied both normally closed (NC) and normally open (NO) with de-energized coils.
l Wide choices of coils for A.C. and D .C
l Suitable for all fluorinated refrigerants.
l Opening pressure diff.:
Pilot type Direct-acting type
AC:0.05-21bar AC:0-21bar
DC:0.05-17bar DC:0-17bar
l Max working pressure:30bar.
l Temperature of medium :-25ºC~105ºC.
l FDF is also available with flange connections.
l Versions with UL and CUL approval can be supplied to order.
| Model | Connection size | Form of connect | Opening diff. pressure | Flow rate Kv(m3/h) | ||
| In | mm | |||||
| FDF3BJ | 1/4 | 6 |
ODF |
(NC) (AC):0_21(DC):0_17 |
0.27 | |
| 5/16 | 8 | |||||
| 3/8 | 10 | |||||
| FDF6MJ | 5/16 | 8 |
(NC) (AC):0.05_21(DC):0.05_17 (NO) (AC):0.05_18(DC):0.05_15 |
0.4 | ||
| FDF8MJ | 3/8 | 10 | 0.8 | |||
| 1/2 | 12 | 0.8 | ||||
| FDF10MJ | 1/2 | 12 | 1.9 | |||
| 5/8 | 16 | 1.9 | ||||
| FDF13MJ | 5/8 | 16 | 3.0 | |||
| 3/4 | 19 | 3.0 | ||||
| 7/8 | 22 | 3.0 | ||||
| FDF16M1 | 3/4 | 19 | 4.5 | |||
| FDF19M1 | 7/8 | 22 | 4.5 | |||
| FDF19M2 | 7/8 | 22 | 5.0 | |||
| FDF19M3 | 11/8 | 35 | 6.0 | |||
| FDF19M4 | 9/8 | 28 | 6.0 | |||
| FDF25MJ | 9/8 | 28 | 9.8 | |||
| 11/8 | 35 | 9.8 | ||||
| FDF32MJ | 11/8 | 35 | 15 | |||
| 13/8 | 42 | 15 | ||||
| FDF40M | 13/8 | 42 |
(NC) (AC):0.3_21(DC):0.3_17 (NO) (AC):0.3_18(DC):0.3_15 |
25 |
||
| 17/8 | 54 | |||||
| FDF25MA | 33 |
Flange |
(NC) (AC):0.05_21(DC):0.05_17 (NO) (AC):0.05_18(DC):0.05_15 |
9.8 | ||
| FDF25MF | 33 | 9.8 | ||||
| FDF32MA | 38.8 | 15 | ||||
| FDF32MF | 38.8 | 15 | ||||
| FDF3B | 6 |
SAE |
(NC) (AC):0_21(DC):0_17 |
0.27 | ||
| FDF6MB | 8 |
(NC) (AC):0.05_21(DC):0.05_17 (NO) (AC):0.05_18(DC):0.05_15 |
0.4 | |||
| FDF8MB | 10 | 0.8 | ||||
| FDF10MB | 12 | 1.9 | ||||
| FDF13MB | 16 | 3.0 | ||||
| FDF16MB | 19 | 4.5 | ||||
| FDF19MB | 22 | 6 | ||||
| FDF10MBJ | 12 | 1.9 | ||||
| FDF13MBJ | 16 | 3.0 | ||||
| FDF16MBJ | 19 | 4.5 | ||||
| FDF19MBJ | 22 | 6 | ||||
| FDF2Z | ODM5/8 |
Right-angle welding |
0.16 | |||
| FDF3Z | ODM5/8 | 0.27 | ||||

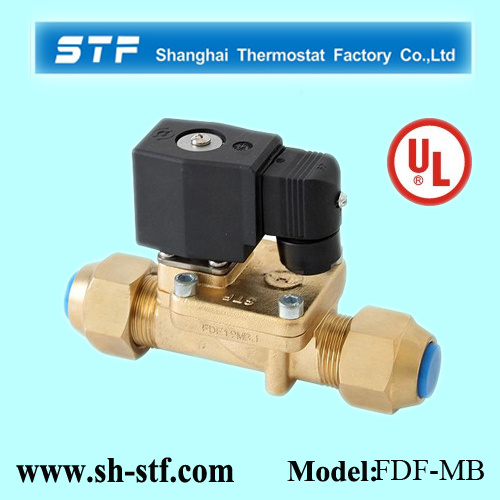

| Prod Model: | FDF-MB Diaphragm Solenoid Valve |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Of Medium: | -25c~105c |
| Max Working Pressure: | 30bar |
| Mopd: | 15~21bar |
| Voltage DC: | 12V, 24V, 110V, 220V |
| Voltage AC: | 36V, 24V, 110V, 220V |
| Medium: | Suitable for All Fluorinated Refrigerants |
| Certificate: | UL/cUL/CE |
| Connection: | Thread |
| Port Size: | All Port |
| Valve Type: | Pilot Type |
| Type: | Pilot Operated |
| Connection Form: | Thread |
| Valve Structure: | Direct Action Diaphragm Structure |
| Application: | Household Usage |
| Power Supply: | AC&DC |
