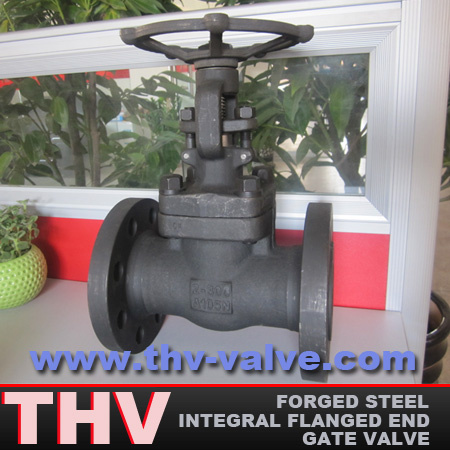

Forge Steel Integral Flange Gate Valve
| Price: |
US $ 25-26/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Flange type forged steel gate valve has socked welded type, butt-welded type and integral type flange,
Standards:
Design Standard: API 602 / ASME B16.34 / BS5352
Testing Standard: API 598
Face to face according to ASME B16.10
Connection Standards:
Flange according to ANSI / ASME B16.5
Marking MSS SP25
Pressure Class: From Class150 to Class4500
Size from 1/2" to 3"
Main Materials: A105; LF2; F5; F11; F22; 304L; 316L; F347; F321; F51; Monel; 20 alloy, etc.
Features:
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Spiral-wounded gasket
Integral backseat
Integral body flanges
Bonnet and body connected by options of Bolted Bonnet, Welded Bonnet & Pressure Seal Bonnet.
|
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
|
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
Seat Ring |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
|
3 |
Wedge |
A276 410 & 430 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
4 |
Stem |
A182 F6 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
5 |
Gasket |
Corrugated SS + graphite |
SS + PTFE |
|
6 |
Bonnet |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
7 |
Bonnet Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
8 |
Pin |
A276 420 |
A276 304 |
|
9 |
Gland |
A276 410 |
A182 F304(L) |
A182 F316(L) |
|
10 |
Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
11 |
Gland Flange |
A105 |
A182 F11 |
A182 F304(L) |
A182 F316(L) |
|
12 |
Gland Nut |
A193 2H |
A194 4 |
A194 8 |
A194 8M |
|
13 |
Yoke Nut |
A276 410 |
|
14 |
H.W.Lock Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
15 |
Nameplate |
SS |
|
16 |
Handwheel |
A197 |
|
17 |
Bearing Gasket |
A473 431 |
|
18 |
Stem Packing |
Flexible Graphite |
PTFE |
|
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3CH3OOH etc |
| Prod Model: |
THFSFZ41H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Integral Flanged |
| Connection Form: |
Flange |
| Material: |
Carbon Steel |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Industrial Usage |
Yongjia Taihong Valve Co., Ltd. (THV VALVE) is a professional high pressure valves manufacturer for application primarily in the petrochemical industry. Our product range consist of GATE VALVES, GLOBE VALVES, CHECK VALVES, BALL VALVES, BUTTERFLY VALVES & STRAINERS. All valves are designed, manufactured and tested according to the latest manufacturing specifications of the American and International Standards Organizations.

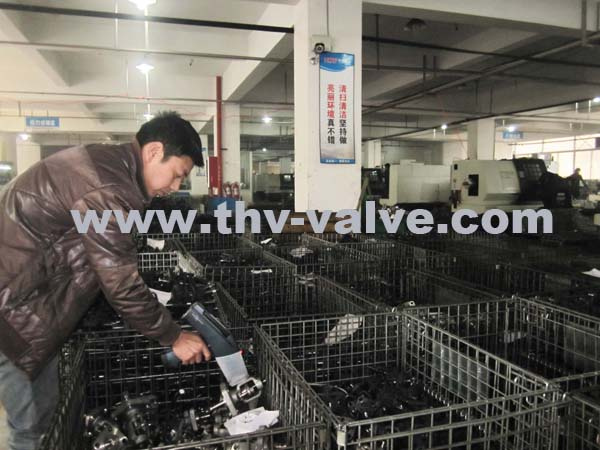

We possesses extrusion dies heat mechanical processing, welding, assembling, testing, etc. facilities. And also our company has a strong CAD design team and a professional QC team. Our strong production equipments and perfect testing means can effectively improve product quality and be sure users' interests.
