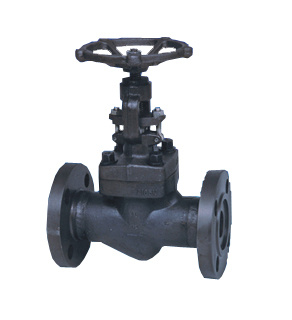

Forged Carbon Steel Flanged End and Butt Welded Globe Valve

Flanged end and Butt Welded Forged Steel Globe Valves

Standard compliance:
1) Design and manufacture: API602, BS5352
2) Test and inspection: API598
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5
5) Butt-welding end: ANSI B16.25
6) Screwed end: ANSI B1.20.1
7)Socket weld: ANSI B16.11

Specifications:
1) Size: 1/4" to 3"
2) Class: 150LB to 2500LB
3) Type: Forged Steel gate valves, globe valves, swing check valves, lift check valve etc. Bolted bonneted or welded bonnet, reducer bore or full bore, Flanged and BW end, threaded end or SW end.
4) Material: Forged carbon steel, stainless steel, alloy steel such as A105, LF2, F304, F316, F304L, F316L, F11, F22, F51, F53, F5, F9, MONEL, ALLOY 20 etc.
5) Operation: Handwheel.

NO	Part name	ASTM
		Carbon Steel		Taintless Steel	Alloy Steel
1	Body	A105	LF2/F3	A 182 F 304	A 182 F 11/F22
2	Disc	A 182F 6a	A 182F 6a	A 182 F 304	A 182F 6a
3	Stem	A276-410	A276-410	A276-304	A276-410
4	Gasket	Graphite+304
5	Sealing ring	Graphite
6	Yoke	A216-WCB	A216-WCB	A351 CF8	A261-WCB
7	Bonnet	A105	A350LF2/LF3	A 182 F 304	A 182 F 11/F22
8	Gland	A216-WCB	A216-WCB	A351 CF8	A216-WCB
9	Bolt	A193 B7	A 320 L 7	A193 B8	A193 B16
10	Packing	Graphite
11	Stem Bushing	A276-410	A276-410	A276 304	A276-410
12	Gland	A216-WCB	A216-WCB	A351 CF8	A216-WCB
13	Eye blot	A193 B7	A 320 L 7	A193 B8	A193 B7
14	Stem nut	A276-410
15	Hand wheel	A 197 or A47-32510

Dimension List  Unit: mm

Pressure	Size		Dimension						Wt(kg)
	mm	in	d	L-RF	L-BW	L-RTJ	H	W
CLASS150	15	1/2	10	108	108	119	158	100	4.5
	20	3/4	13	117	117	130	163	100	6.9
	25	1	19.1	127	127	140	193	125	9.8
	32	1-1/4	24	140	140	152	250	160	13.5
	40	1-1/2	31.8	165	165	178	250	160	19.5
	50	2	38.1	203	203	216	291	180	28
	65	2-1/2	48.5	216	216	229	350	240	35.4
CLASS300	15	1/2	10	152	152	164	158	100	4.8
	20	3/4	13	178	178	190	163	100	7.7
	25	1	19.1	203	203	216	193	125	11
	32	1-1/4	24	216	216	229	250	160	16.8
	40	1-1/2	31.8	229	229	241	250	160	21.2
	50	2	38.1	267	267	283	291	180	32.6
	65	2-1/2	48.5	292	292	308	350	240	38
CLASS600	15	1/2	10	165	165	165	158	100	5.6
	20	3/4	13	190	190	190	163	100	7.8
	25	1	19.1	216	216	216	193	125	12.5
	32	1-1/4	24	229	229	229	250	160	17
	40	1-1/2	31.8	241	241	241	250	160	23.5
	50	2	38.1	292	292	295	291	180	38.8
	65	2-1/2	48.5	330	330	333	350	240	42.6



Pressure	Size		Dimension							Wt(kg)
	mm	in	D	L-RF	L-BW	L-RTJ	H		W
							BB/WB	PB		BB/WB	PB
CLASS900/	15	1/2	13	216	216	216	207	207	125	7.4	15.5
CLASS1500	20	3/4	18	229	229	229	240	207	125	12.5	16.9
	25	1	24	254	254	254	258	240	160	16	18.9
	32	1-1/4	29	279	279	279	290	258	160	17.2	25.5
	40	1-1/2	36.5	305	305	305	337	290	180	23	34.3
	50	2	46.5	368	368	371.2	354	337	240	29.8	52.8



All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B. Mill Test Certificate for all our supplied products.

Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, bolts&nuts&gaskets, steel plates, tubing and casing, line pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
