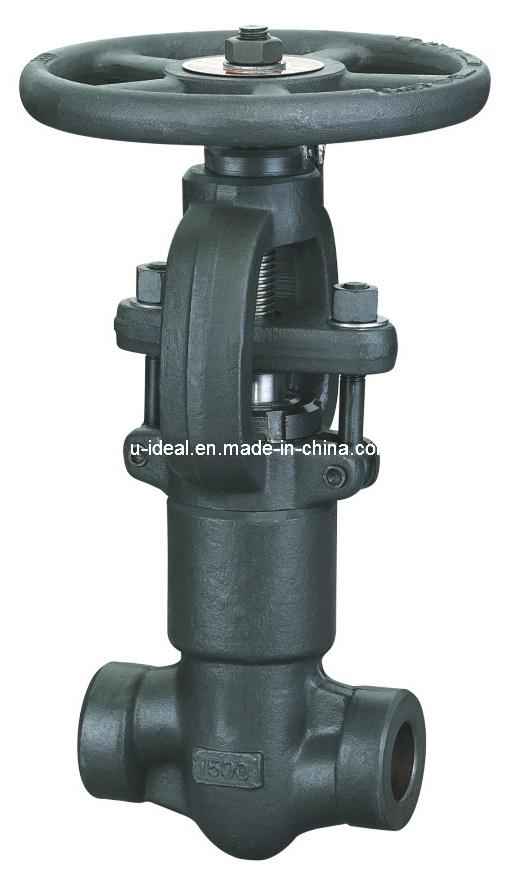

Forged Steel Pressure Seal Globe Valve
Price: |
US $ 70/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Specifications:
1. Pressure Seal Bonnet
2. OS&Y - outside screw and yoke
3. Socket weld ends: ASME B 16.11
Threaded ends: ANSI/ASME B 1.20.1
Butt-welded ends: ANSI B16.25
4. Stem seal consists of flexible graphite packing
5. Forged Steel Globe Valves conform to ASME B16.34 and BS 5352. Each valve is tested in accordance with API 598, and marked per MSS SP 25.
6. Main materials: A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy
Related products: Gate Valve Ball Valve Check Valve Globe Valve Butterfly Valve Knife Gate Valve Cryogenic Valve Water valve two or three ways valve hydraulic valve float valve pressure reducing valve.
Structural formation | Bolt-jointed bonnet outside stem yoke structure(Pressure sealed) |
Driving manner | Hand-operated |
Design standard | ASME B16.34/BS 5352 |
Face to face | ASME B16.10 |
Flanged ends | ASME B16.5 |
Test &inspection | API598 |
No. Accessory Name | Material |
|
1- Body | ASTMA105,ASTM A182-F11/F22/F5/F9 ASTMA182-F304/F316/F321/F304L/F316L |
2-Flange | ASTMA105,ASTM A182-F11/F22/F5/F9 ASTMA182-F304/F316/F321/F304L/F316L |
3-Bonnet | ASTMA105,ASTM A182-F11/F22/F5/F9 ASTMA182-F304/F316/F321/F304L/F316L |
4-Disc | ASTMA105,ASTM A182-F11/F22/F5/F9 ASTMA182-F304/F316/F321/F304L/F316L |
5-Gasket | Graphite+Stainless Steel |
6-Bolt | ASTM A193-B7,A320-B8,A193-B8M |
7-Stem | ASTM A182Gr.F6a/ ASTM A182F22 ASTMA182-F304/F316/F321/F304L/F316L |
8-Packing | Graphite |
9-Stuffing cover | ASTMA105,ASTM A182-F11/F22/F5/F9 ASTMA182-F304/F316/F321/F304L/F316L |
10-Gland | ASTM A216-WCB ASTM A351-CF8/CF8M/CF8C/CF3/CF3M |
11-Valve stem nut | Copper alloy |
12-Handwheel | ASTM A47-32510 |
Prod Model: |
J816 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
3/8"-21/2 |
Socket Weld Ends: |
Asme B 16.11 |
Threaded Ends: |
ANSI/Asme B 1.20.1 |
Butt-Welded Ends: |
ANSI B16.25 |
Main Materials: |
A105, Lf2, F5, F22, F304, F316, F347, F321, F51, M |
Material: |
Steel |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Application: |
Household Usage |
Connection Form: |
Weld |
