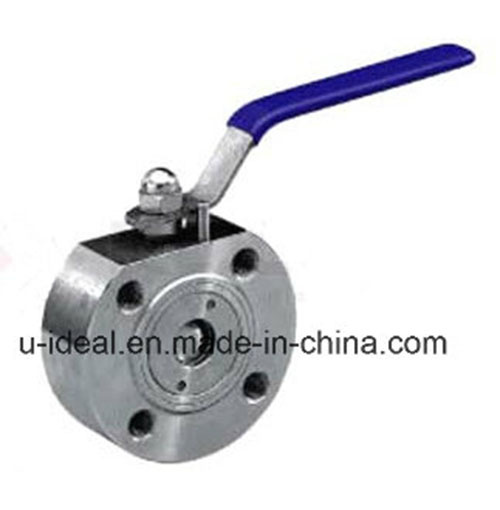

Forged Steel Wafer Ball Valve
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Description
Forged Steel Wafer Ball Valve
The wafer ball valve is ideally suited to applications where space is at a premium. Wafer ball valve is normally one-piece design and floating ball type, and are available in both cast and forged body, full and reduced bore configurations and, although intended for manual operation, actuation can be accommodated on certain sizes.
Features of Forged Steel Wafer Ball Valves:
Wafer Valve Body, Short Face-to-face Dimensions
One Piece Body, Floating Ball type
Full Port or Reduced Port
Fire Safe to API 607
Antistatic Design
Anti-blowout Stem
Lever, Gear Operation or Actuator Available
Applicable Standards of Forged Steel Wafer Ball Valves:
A) Design & Manufacture: API 6D, BS 5351, ASME B16.34
B) Face to Face: Manufacturer's Standard
C) End Connection: ASME B16.5, EN 1092, JIS B2220
D) Test and Inspection: API 6D, EN 12266, API 598
Sizes: 1/2" - 10", DN 15 - DN 250
Pressure Rating: Class150 - Class 600 or PN 16 - PN 100
Material of valve body: WCB, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L etc.
Operated by: Lever, Gear, Pneumatic, hydraulic and Electric actuator
Would you like to get more products information or order it, please call me, or click Inquiry Now to fill in the Form.
It helps you get more informations you need to trade confidently with suppliers.
Related products: Gate Valve Ball Valve Check Valve Globe Valve Butterfly Valve Knife Gate Valve
1. Construction is as follows:
- Full Port or Reduce Port |
| - One Piece or Split Body |
| - Bolted Bonnet with spiral-would gasket |
| - Fire Safe Design |
| - Anti-static Design & Blow-out proof stem |
| - Socket Weld Ends to ASME B16.11 |
| - Butt Weld Ends to ASME B16.25 |
| - Screwed Ends to ANSI/ASME B1.20.1 |
| - Flanged Ends to ASME B16.5 |
2. Main Part & Materials
Part Names | Part Materials |
| Body | WCB/A105 | LCB/LF2 | WC6/F22 | CF8/F304 | CF8M/F316 | CF3/F304L | CF3M/F316L |
| Bonnet | WCB/A105 | LCB/LF2 | WC6/F22 | CF8/F304 | CF8M/F316 | CF3/F304L | CF3M/F316L |
| Ball | A105+ENP | SS304 | F22 | SS304 | SS316 | SS304L | SS316L |
| Stem | A105 | F304 | F6a | F304 | F316 | F304L | F316L |
| Seat/Seat Ring | PTFE/RPTFE/NYLON/DEVLON/PEEK or METAL |
| Packing | Graphite/PTFE |
| Gasket | SS304+Graphite/SS316+Graphite |
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M |
| Suitable Medium | W. O. G etc. | HNO3, CH3OOH etc. |
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C |
3. Normal Pressure Rating
PN10~PN420, CLASS150~2500
4. Normal Size Range
DN15~DN100, 1/2"~4"
| Prod Model: |
Q41K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design & Manufacture: |
API 6D, BS 5351, Asme B16.34 |
| Face To Face: |
Manufacturer's Standard |
| End Connection: |
Asme B16.5, En 1092, JIS B2220 |
| Test And Inspection: |
API 6D, En 12266, API 598 |
| Sizes: |
1/2" - 10" ,Dn 15 - Dn 250 |
| Pressure Rating: |
Class150 - Class 600 or Pn 16 - Pn 100 |
| Material: |
Alloy |
| Connection Form: |
Welding |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Household Usage |
