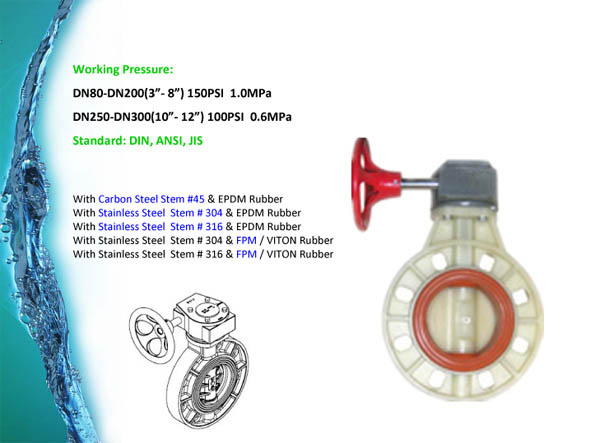

FRPP Butterfly Valve DIN ANSI JIS CNS Standard DN80 ( 3" )-DN300 ( 12" )
1. U-PVC Butterfly Valve ( Gear ) DIN, ANSI, JIS, CNS Standard with Carbon Steel Stem #45 & EPDM Rubber.
2. U-PVC Butterfly Valve ( Gear ) DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem #420 & EPDM Rubber.
3. U-PVC Butterfly Valve ( Gear ) DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem #304 & EPDM Rubber.
4. U-PVC Butterfly Valve ( Gear ) DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem #304 & PPM / VITON Rubber.
5. FR-PP / PP-G Butterfly Valve ( Gear ) DIN, ANSI, JIS, CNS Standard with Carbon Stem #45 & EPDM Rubber.
6. FR-PP / PP-G Butterfly Valve ( Gear ) DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem #420 & EPDM Rubber.
7. FR-PP / PP-G Butterfly Valve ( Gear ) DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem #304 & EPDM Rubber.
8. FR-PP / PP-G Butterfly Valve ( Gear ) DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem #304 & FPM / VITON Rubber.
9. PP-R Butterfly Valve ( Gear ) DIN, ANSI, JIS, CNS Standard with Carbon Stem #45 & EPDM Rubber.
|

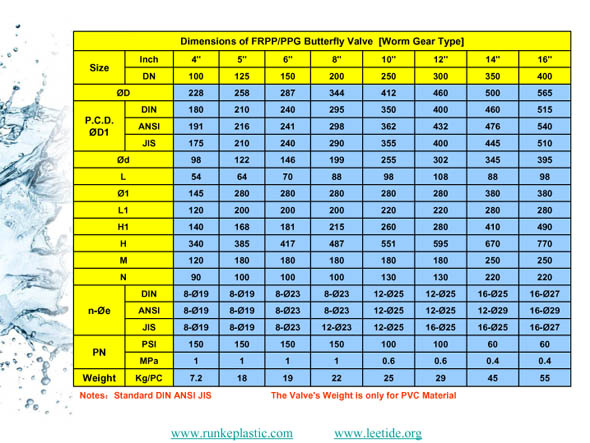

Specification |
Working Pressure |
Carton Size |
Carton |
|
Size MM |
Size Inch |
Pipe Dia. MM |
MPa |
CM |
Set |
|
DN80 |
3" |
90 |
1.0MPa |
44×33×37 |
4 |
|
DN100 |
4" |
110 |
1.0MPa |
44×33×37 |
4 |
|
DN125 |
5" |
140 |
1.0MPa |
44×33×37 |
2 |
|
DN150 |
6" |
160 |
1.0MPa |
44×33×37 |
2 |
|
DN200 |
8" |
200 |
1.0MPa |
47×26×54 |
1 |
|
DN250 |
10" |
250 |
0.6MPa |
53×28×64 |
1 |
|
DN300 |
12" DIN |
315 |
0.6MPa |
53×28×69 |
1 |
|
DN300 |
12" ANSI |
315 |
0.6MPa |
53×28×72 |
1 |
|
DN300 |
12" JIS |
315 |
0.6MPa |
53×28×72 |
1 |
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce
PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;
PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.
PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;
PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;
PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;
HDPE Fittings for Water Supply SDR11 & SDR17
PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;
SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;
HDPE Inspection Chamber
