Full Welded Forged Steel Ball Valve
| Price: |
US $ 100-15000/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |

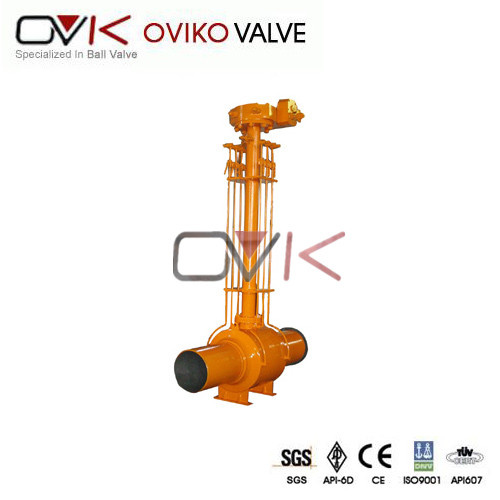

FULL WELDED BALL VALVE
STRUCTURE FEATURES
1. Integral Valve Structure
It is welded by forged steel. The forging materials are subjected to ultrasonic examination according to ASME nondestructive flaw detection requirements. The welding slope on the connection face is subjected to liquid penetration examination.
2. Corrosion Resistance And Sulfide Stress Resistance

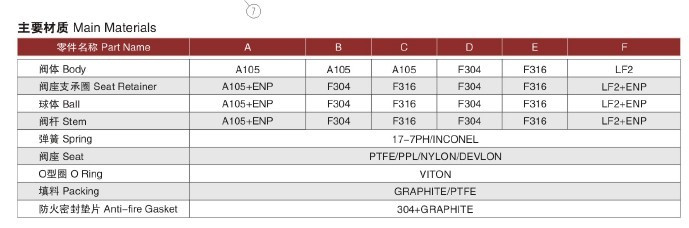

Certain corrosion allowance is left for the body wall thickness. The carbon steel stem, fixed shaft, ball, seat and seat ring are subjected to chemical nickel plating according to ASTM B733 and B656. In addition, various corrosion resistance materials are available for users to select.
According to customer requirements, the valve materials can be selected according to NACE MR 0175/ISO 15156 or NACE MR 0103, and strict quality control and quality inspection should be carried out during the manufacturing so as to fully meet the requirements in the standards and meet the service conditions in sulfurization environment.
3. Welding Of Transition Pipe
During the manufacturing of the fully welded pipeline ball valve, the transition pipe can e welded for the welding ends valve. The transition pipe can be supplied by users or by our company according to user requirements. Please indicate the transition pipe diameter and length A when placing orders.
| Prod Model: |
OVK150407 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2-48'' |
| Pressure: |
150-2500 |
| End Connection: |
RF/Rtj/Butt Weld,Thread,Socket Ends, Full Weld |
| Design And Tested: |
API598/6D/En17292 |
| Fire Safe: |
API607 and Nace Mr 0175 |
| Certificates: |
API6d.CE.ISO9001 |
| Connection Form: |
Welding |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Household Usage |
| Function: |
Flow Control |
| Nominal Pressure: |
150bl-2500bl |

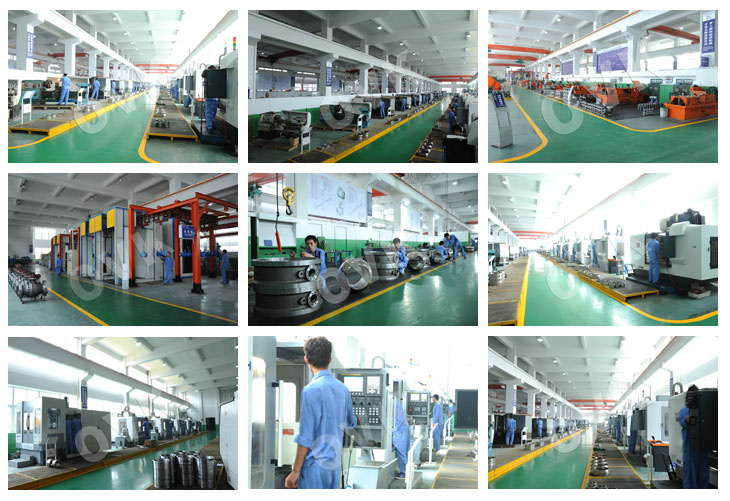

OVIKO is one of leading all kinds of ball valve and ball valve parts manufacturers. The products included Trunnion mounted ball valves, floating ball valves, top entry ball valves, fully welded ball valves, metal to metal ball valves, 3 way ball valves, V port ball valves, etc. Also we can make ball valves' parts according to customer drawings.
Our products nominal dia is 1/4"--48". Pressure grade is 150LB-2500LB. Working temperature is -196ºC-450ºC. The material are carbon steel, alloy steel, stainless steel, and so on. To guarantee the products quality, we passed ISO 9001 International Quality Assurance System, CE, API 6D, API607, API6FA, etc. High quality and excellent after-service get our products good market nearly every parts of the world, such as U. S. A, Spain, UK, Italy, Canada, Mexico, MID-east, India, etc. With years of exporting experience, we are good at manufacturing to standards: GB, DIN, ANSI, BS, AS, JIS, ISO, API etc.
We insist on the concept of "Quality first, prestige important", and after continuous innovation and development, the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations. Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets. We offers the customers with valves of excellent quality and best service, hope to build a new brilliant with you in the future.
