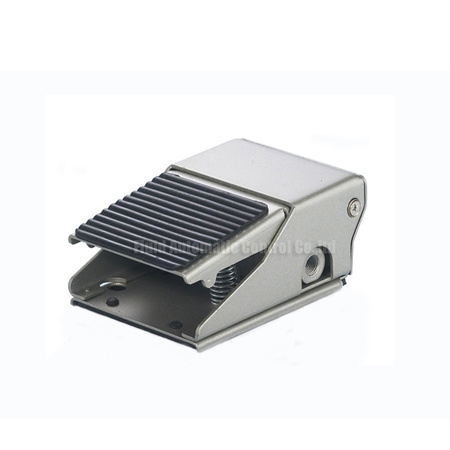

*FV series Foot Pedal valve
*Body Material Aluminum Alloy
*Port Size Inlet,outlet G1/4”,Exhuasting port G1/8”
*Two position Three Way or Two position Four Way Available
*Easy operation,sensitive of Respond
*Stable design,long serive life
ORDERING CODE |
| FV | 320 |
| Type | Function Type |
| FV: FV Series Foot Valve | 320:Two Position Three Way |
|
| 420:Two Position Four Way |
|
| SPECIFICATION |
| Model no | FV320 | FV420 |
| Working Medium | Compressed 40 Micron Filtered Air |
| Body Material | Aluminum Alloy |
| Position And Way Numbers | Two Position Three Way | Two Position Five Way |
| Port Size | Inlet outlet G1/4" Exhuasting Port G1/8" |
| Motion Pattern | Direct Acting |
| Working Pressure | 0.15~0.9MPa |
| Operating Temperature | 0~60ºC |
