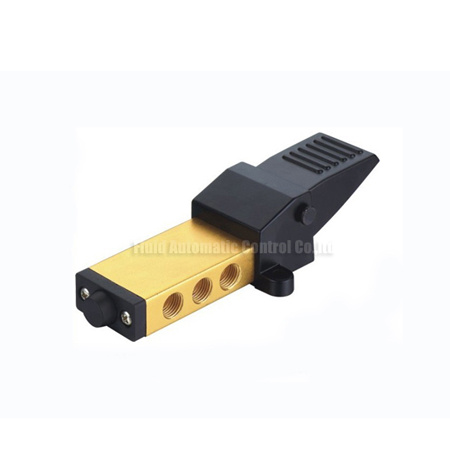

*K23 K25 Series foot Pedal valve
*Two Position Three Way and Two position Five way
*Port Size G1/4,G1/8
*Compact design,small volume,very easy for installing
*With Aluminum spacer sleeve,keep from directly friction to Seal and Body
*Stable design,long service life
ORDERING CODE |
| K | 23 | L8 |
| Type | Function Type | Port Size |
| K:K Series Foot Pedal Valve | 23:Three Postion Three Way | L8:G1/4" |
| 25:Two Position Five Way | L6G1/8" |
| SPECIFICATION |
| Model no | K23-L6 K25-L6 | K23-L8 K25-L8 |
| Working Medium | Compressed 40 Micron Filtered Air |
| Body Material | Aluminum Alloy |
| Position And Way Numbers | Two Postion Three Way | Two Position Five Way |
| DN(mm) | 6mm | 8mm |
| Port Size | G1/8" | G1/4" |
| Effective Sectioinal Area | 10mm² | 20mm² |
| Motion Pattern | Direct Acting |
| Working Pressure | 0.05~0.8MPa |
| Operating Power | ≤80N | ≤100N |
| Operating Temperature | 0~60ºC |
| Life Cycle(Ten Thousand) | ≥200 |
