DESCRIPTION
1. Design confirms to: AWWA C509/C515
2. Push on ends: Fitted with NBR/EPDM Rubber seals to suit PVC-Pipes
3. Test & Inspection: AWWA C509/C515
4. Suitable medium: Water and neutral liquid.
5. Working temperature: NBR≤ 80, EPDM≤ 120
6. Operator: Hand wheel, nut, extension stem, gear operator
|

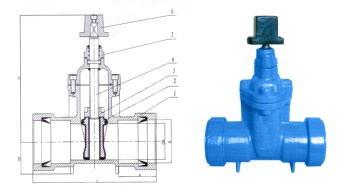

NO. |
PART |
MATERIAL |
|
1 |
BODY |
DI ASTM A536 |
|
2 |
WEDGE |
DI A536 NBR/EPDM |
|
3 |
STEM NUT |
BRONZE C83600 |
|
4 |
STEM |
420/304 |
|
5 |
GLAND |
DI A536/BRASS |
|
6 |
HAND WHEEL |
DI ASTM A536 |
DIMENSIONS (mm)
|
DN |
L |
H |
H1 |
D |
A |
|
2’’ |
10.24 |
12 |
2.56 |
2.44 |
3.43 |
|
2.5’’ |
10.75 |
12.4 |
2.95 |
2.99 |
3.54 |
|
3’’ |
12 |
13.62 |
3.15 |
3.58 |
3.74 |
|
4’’ |
13.78 |
15.55 |
3.54 |
4.65 |
4.21 |
|
6’’ |
16.85 |
20.47 |
4.53 |
6.77 |
5.7 |
|
8’’ |
18.5 |
22.24 |
6.1 |
8.74 |
6.57 |
|
10’’ |
21.25 |
25.5 |
7.3 |
11.06 |
6.7 |
|
12’’ |
26.45 |
29.5 |
8.3 |
13.2 |
9 |
