DESCRIPTION
1. Design confirms to: DIN3352. BS5163, SABS664/665
2. Flanged drilled confirms to DIN2501, BS4504
3. Test& Inspection: DIN3230, BS6755
4. Normal pressure: 1.0MPa, 1.6MPa, 2.5MPa
5. Suitable medium: Water and neutral liquid.
6. Working temperature: NBR≤ 80Degrees, EPDM≤ 120degrees
7. Operator: Hand wheel, nut, extension stem, gear operator
MATERIAL LIST
NO. PART MATERIAL
1 BODY GGG40/GGG50
2 WEDGE GGG40/GGG50/NBR/EPDM
3 STEM NUT BRASS/BRONZE/59-1/CZ132/5-5-5
4 STEM 2Cr13/420/304
5 BONNET GGG40/GGG50
6 GLAND BRASS 59-1
7 HAND WHEEL GGG40/GGG50

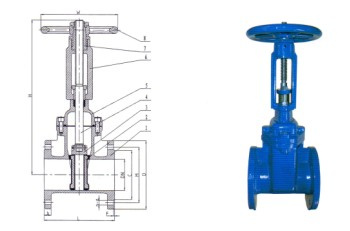

DIMENSIONS (mm)
DN L H C M D b n-d
F4 F5 BS5163/665 BS5150/664
50 150 250 178 216 350 102 125 165 19 4-19
65 170 270 190 370 122 145 185 19 4-19
80 180 280 203 229 380 138 160 200 19 8-19
100 190 300 229 254 405 158 180 220 19 8-19
125 200 325 254 455 188 210 250 19 8-19
150 210 350 267 280 490 212 240 285 19 8-23
200 230 400 292 317 540 268 295 340 20 12-23
250 250 450 330 356 720 320 355 405 22 12-28
300 270 500 356 380 860 378 410 460 24.5 12-28
350 290 550 381 470 1185 438 470 520 26.5 16-28
400 310 600 406 470 1355 490 525 580 28 16-31
450 330 650 432 485 1570 532 525 640 30 20-31
500 350 700 457 510 1830 610 650 715 31.5 20-34
600 390 800 508 600 2010 725 770 840 36 20-37
700 430 900 610 2260 793 840 910 38.5 24-37
800 470 1000 610 2535 900 950 1025 43 24-40
900 510 1100 711 1000 1050 1125 46.5 28-40
1000 550 1200 813 1116 1170 1255 50 24-43
