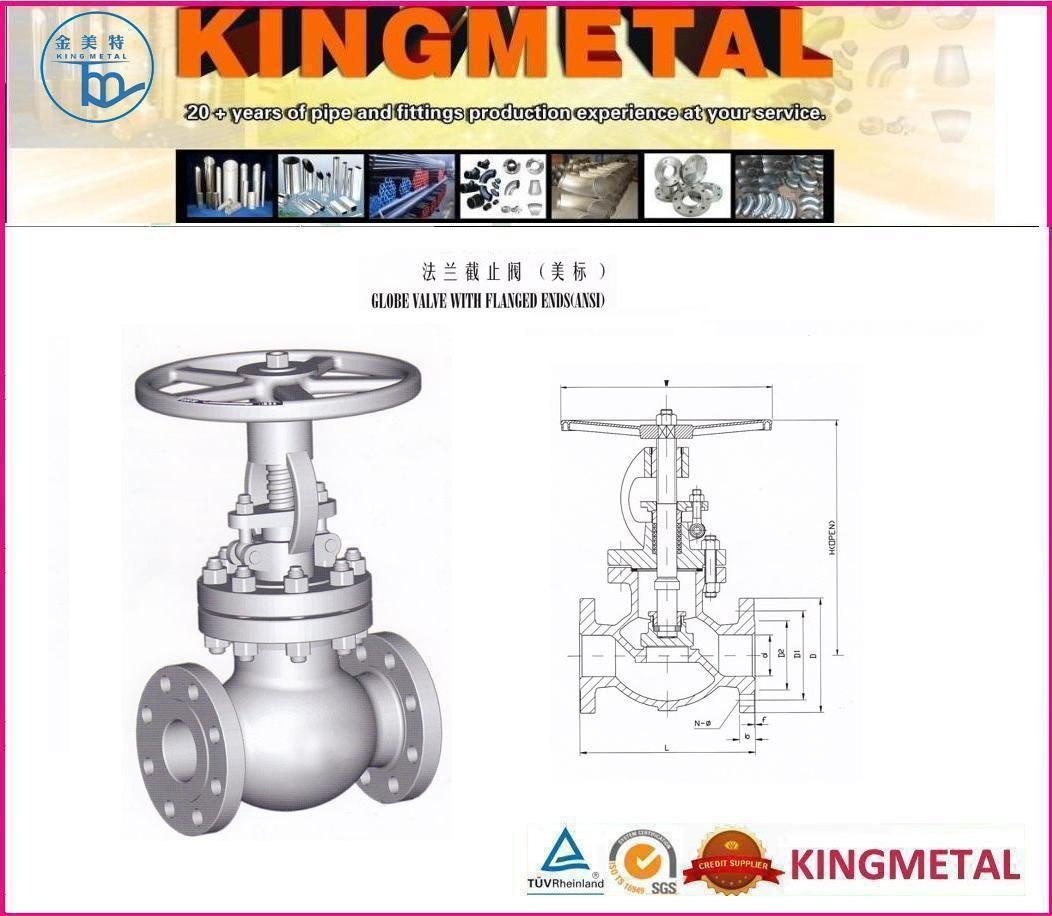

Globe Valve with Flanged Ends
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
Globe Valve With Flanged Ends
Standard Material Specifications
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
2 |
Gasket |
Corrugated SS + graphite |
SS + PTFE |
3 |
Bonnet Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
4 |
Pin |
A276 420 |
A276 304 |
5 |
Gland |
A276 410 |
A182 F304(L) |
A182 F316(L) |
6 |
Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
7 |
Gland Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
8 |
Yoke Nut |
A276 410 |
9 |
H.W.Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
10 |
Nameplate |
SS |
11 |
Handwheel |
A197 |
12 |
Gland Flange |
A216 WCB |
A351 CF8 |
13 |
Stem Packing |
Flexible Graphite |
PTFE |
14 |
Bonnet |
A105 |
A276 304 |
A182 F304(L) |
A182 F316(L) |
15 |
Stem |
A182 F6 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
16 |
Disc |
A276 420 |
A276 304 |
A276 304(L) |
A273 316(L) |
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3,CH3OOH etc |
Suitable Temperature |
-29 425 |
-29 550 |
-29 180 |
Note: Other materials are available upon request.
Dimensions (mm) and Weights (Kg)
NPS |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
L(RF)L1(BW) |
150 |
108 |
117 |
127 |
140 |
165 |
203 |
300 |
152 |
178 |
203 |
216 |
229 |
267 |
600 |
165 |
190 |
216 |
229 |
241 |
292 |
H(OPEN) |
150,300 |
166 |
171 |
207 |
240 |
258 |
330 |
600 |
171 |
207 |
240 |
258 |
330 |
380 |
W |
100 |
100 |
125 |
160 |
160 |
180 |
Weights |
150 |
RF |
4.5 |
6.9 |
9.8 |
13.5 |
19.5 |
28.0 |
BW |
2.3 |
3.6 |
7.8 |
8.2 |
12.0 |
15.0 |
300 |
RF |
4.8 |
7.7 |
11.0 |
16.8 |
21.2 |
32.6 |
BW |
2.8 |
4.0 |
8.5 |
9.2 |
12.6 |
16.8 |
600 |
RF |
5.6 |
7.8 |
12.5 |
17.0 |
23.5 |
38.8 |
BW |
3.4 |
4.7 |
9.2 |
10.5 |
13.3 |
18.9 |
| Prod Model: |
KM-06V2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"~2" |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Standard: |
ANSI |
| Sealing Form: |
Gland Packings Globe Valve |
| Application: |
Bellows Globe Valve |
| Material: |
Carbon Steel,Stainless Steel |
