Specifications
1)Nominal pressure:1.6MPa
2)Suitable medium:Water,oil,vapour etc.
3)Body:WCB,Stainless steel
4)Bonnet:WCB,Stainless steel
5)Disc:WCB,Stainless steel
6)Stem:Stainless steel
7)Hand wheel:Ductile iron
8)Shell test:2.4MPa
9)Seal test:1.8MPa
10)Actuator:Manual

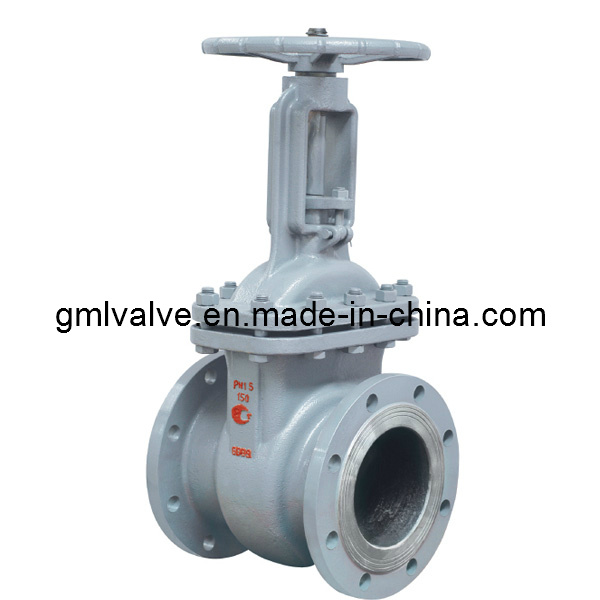

Z41H-16C GOST Cuniform Gate Valve outline and connecting measurement
Type | Nominal pressure(mm) | Measurement(mm) | Reference Weight(kg) |
L | D | H | |
Z41H-16C | 50 | 180 | 160 | 285 | 12.7 |
Z41H-16C | 80 | 210 | 195 | 337 | 20.5 |
Z41H-16C | 100 | 230 | 215 | 383 | 27 |
Z41H-16C | 150 | 280 | 280 | 522 | 52 |
Z41H-16C | 200 | 330 | 335 | 647 | 80 |
Z41H-16C | 250 | 450 | 405 | 815 | 119 |
Z41H-16C | 300 | 500 | 460 | 886 | 156 |
Z41H-16C | 400 | 600 | 580 | 1241 | 156 |
Z41H-16C GOST Cuniform Gate Valve Specification
Type | Nominal pressure(Mpa) | Testing pressure(Mpa) | Suitable temperature | Suitable medium |
Z41H-16C | 1.6 | Strength (water)2.4 | Enclose(water)1.8 | ≤425 | Vapour ,Water,Oil |
