Product Description
Grooved connection valve is a series of new type valve produced and designed by the introduction of American and Germany advanced same type products. It has the characteristics of quick, simple, safe and reliable installation, convenient installation, easy to be repair and maintain. In addition it solves the problem of expansion caused by heat and contraction caused by cold.
It is widely used in water supply, fire-fighting, air-conditioning, gas, oil, chemistry, water treatment, municipal and shipbuilding pipeline field to control fluid.
Features:
1. Excellent control characteristics.
2. Tight shut-off even after innumerable operations.
3. 90° movement for full open/close position. Provision for intermediatory locking after every 10° for regulation/ controlling purpose.
4. Installation cost considerably reduced because of very low weight and compact design.
5. No routine maintenance required.
6. Longer life and reliable service with minimum component wear.
7. Renewable seats. No supplementary gasket required with the adjacent pipework.
8. Body & Stem totally protected from service fluid.
Technical Data:
(1) Nominal Diameter DN(mm)50(1'')~400(16'')
(2) Nominal Pressure PN(MPa): 1.0~4.0
(3) Testing Pressure PN(MPa): Shell: 1.5~6.0 Sealing: 1.1~4.4
(4) Working Temperature:-30~+250°C
Technical Parameters
|

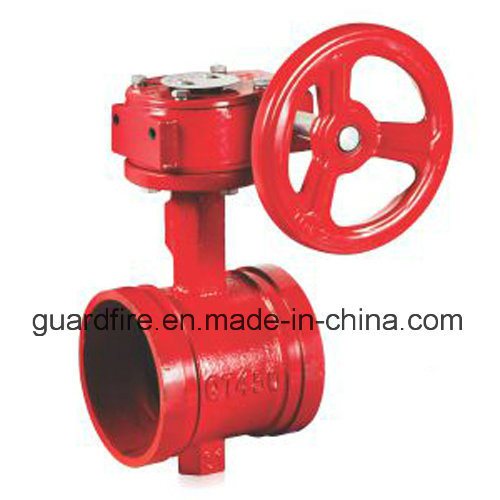

Product Name: Grooved Butterfly Valve |
Standard:
Flange conform to: ANSI B16.1
Grooved conform to: AWWA C606
Design characters:
1. Light in weight, easy installation. The pipe and valve can be clamped directly, suitable for frequent dismantling.
2. Maximized effective diameter.
3. Rubber vulcanized body avoiding the seat displacement.
4. Complete spherical sealing.
5. All parts can be disassembled and assembled, easily and quick maintenance.
6. Operator option is handle, manual gear or electric signal gear.
7. Connection conform to: AWWA C606, ANSI B16.1
8. Top flange conform to: ISO 5211 |
