Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Heli
Model Number: HL-50
Packaging & Delivery
Packaging Details: Exporting case/in carton
Delivery Detail: 30 days
| Standard or Nonstandard | Standard |
|---|

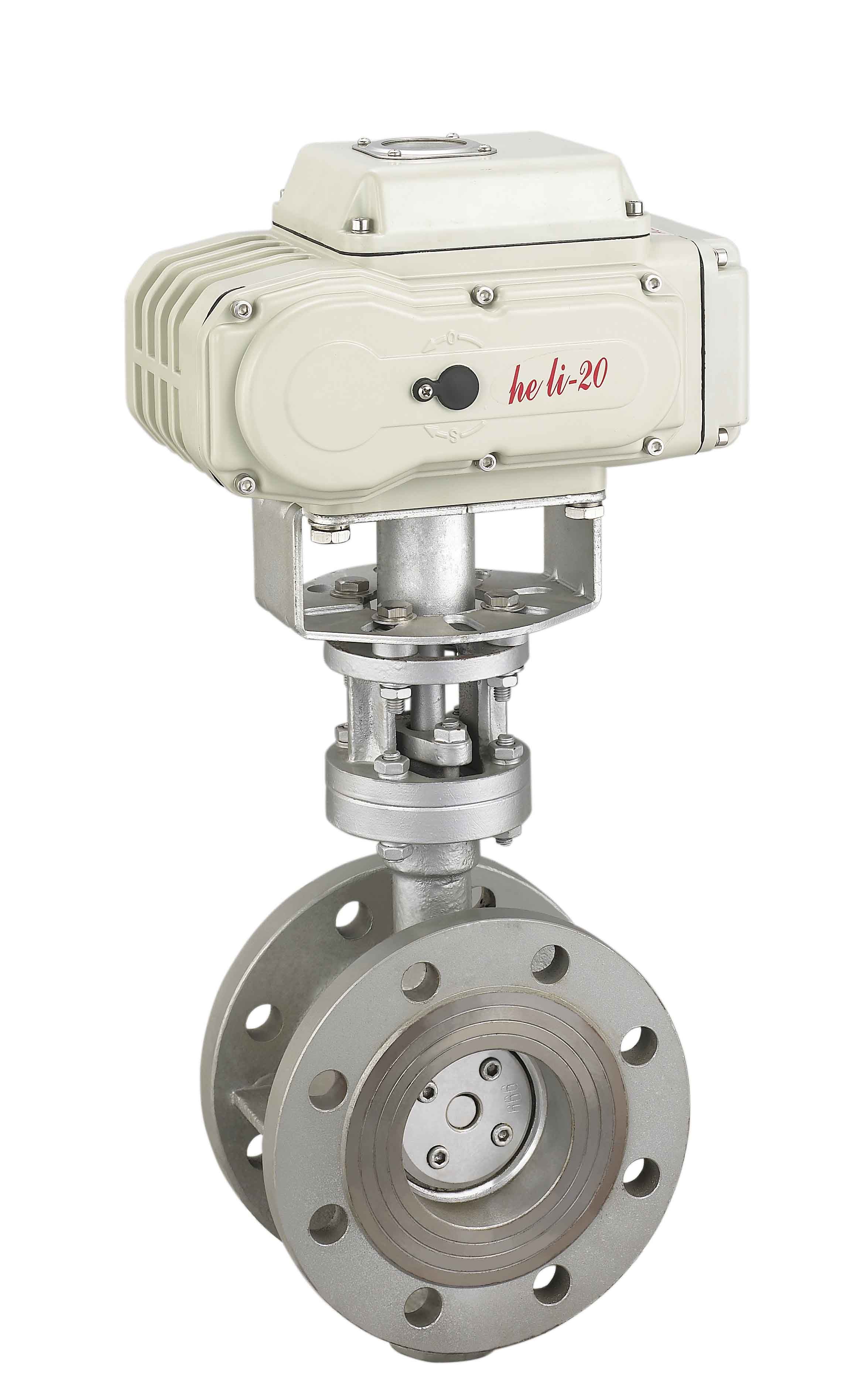

| Structure | Butterfly |
|---|
| Pressure | High Pressure |
|---|
| Power | Electromotion |
|---|
| Material | Casting |
|---|
| Temperature of Media | High Temperature |
|---|
| Port Size | 150Nm/250Nm/300Nm/500Nm |
|---|
| Place of Origin | Zhejiang, China (Mainland) |
|---|
| Model Number | HL-50 |
|---|
| Brand Name | HELI |
|---|
| Certification | CQC,CE,ISO9001:2000 |
|---|
Model
| HL-50 |
| Power | DC24V | DC220V | AC24V | AC110V | AC220V | AC380V |
| Motor power | 90W |
| Rated current | 1A | 0.9A | 8.5A | 2A | 0.92A | .45A |
| Output torque | 150Nm/250Nm/300Nm/500Nm |
| Action time | 9S/15S/20S/30S/60S |
| Circuit control | B,S,R,H,A,K,D,T |
| Rotary angle | 0-90° |
| Weight | 7.8 Kg |
| Voltage-with standing value | 500VAC/1min | 1500VAC/1min |
| Insulated resistance | 100MΩ/300VDC | 100MΩ/500VDC |
| Protection class | IP67 |
| Surrounding Temperature | -25°C~60°C(The other temperature can be customized) |
| Installation angle | Any angle |
| Case material | Aluminium die-casting components |
| Optional function | Overload protection, heater |
Wenzhou Heli Automatic Meter Co., Ltd. (HL) is a High-tech enterprises specialized in manufacturing electric actuator, pneumatic actuator, rotary air damper actuator, integrating scientific research, production, distribution and service.
Founded in 1999, covers an areas of 13118 square meters. HELI company consistently pays attention to product quality and all of HELI products have passed the CE certification, the test of Shanghai industrial Automatic Instrument Institute with every performance and index qualified, etc.
HELI will bring you much more convenience. By consistently keeping the management conception of taking market as guide, serving by quality and credit, and developing by technology and innovation. Our company guarantees to realize the goal of double-win with user's benefits as precondition. In the future, HELI people will actively take the challenge with excellent quality, scientific management and perfect service.
Sincerely welcome friends all over the world to come here for negotiation and cooperation.
