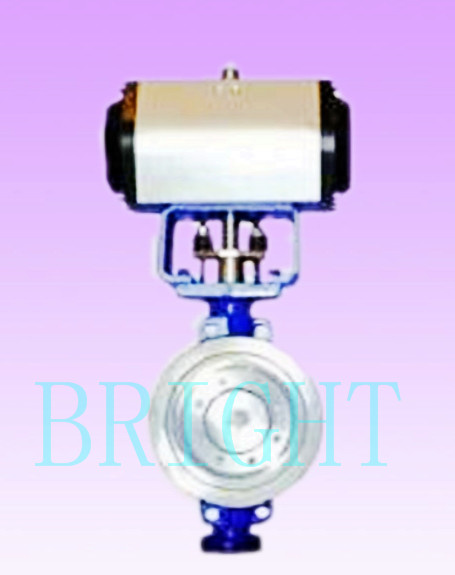

Hb2416 Eccentric Pneumatic Butterfly Valve
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
1. Product Introduction
HB2416 Pneumatic Triple- Eccentric Butterfly Valve is applicable to metallurgy (such as heating furnace, gas station, blast furnace, sintering, etc), petroleum, chemical, light industry and other industries for the control and shutoff of media. It features small cubage, light weight, large flow coefficient, convinient operation and maintenance, dust free, tar proof, block proof, thermostability, stem blowout proof, fireproof structure and long life-span.
Patent No. 2011203278025, 2012202281877, 2012202282348, 201220228985X, 2012202575601
2. Main Specifications
Basic error | ±2.0% |
Note: with positioner |
Backlash | 1.5% |
Dead zone | 0.8% |
Rated stroke deviation | +2.5% |
Allowable leakage | Class V,VI |
|
3. Body SpecificationsNominal Dia.
| DN | mm | 80-1400 |
| inch | 3-55 |
Nominal Pressure | PN | 0.6 | 1.6 | 4.0 | 6.4 |
| ANSI | CL125 | CL150 | CL300 | CL600 |
Body structure | Wafer | | DN80-500 | | |
| flanged | ≥DN1400 | DN600-1300 | DN200-800 | DN200-600 |
4. Applicable Standard
| Chinese Standard | American Standard |
| Quality | ISO9001,TS2710J59 | ISO9001 |
| Design & Manufacture | GB12238-2005,MSS SP-68 | API 6D |
| Flange Standard | JB79-94 GB9119-2000 HG20592-2009 | ANSI B16.5 |
| Face to Face | GB12221-2005 | API 609 |
| Inspection & Test | GB/T4213-2008 | API 598 |
5. Temp. Range of Main Material for Body
Name | Material |
Temp. Limits |
Body | WCB | -29~+427ºC |
| CF8 | -196~+538ºC |
| CF8M | -196~+538ºC |
| 310S | -60~+800ºC |
Plate | WCB | -29~+427ºC |
| CF8 | -196~+538ºC |
| CF8M | -196~+538ºC |
| 310S | -60~+800ºC |
Stem | 304 | -196~+538ºC |
| 17-4PH | -63~+427ºC |
Packing | PTFE | -29~+232ºC |
| Graphite | -20~+800ºC |
| Prod Model: |
HB2416 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Diameter: |
25 Mm (1")-2000mm(80") |
| Structure: |
Three-Eccentric Sealing |
| Material Of Seal Surface: |
Metal Hard Sealed |
| Application: |
Water Industrial Usage |
| Connection Form: |
Wafter or Flange |
| Seal Form: |
RF |
| Valve Stem: |
Extended or Normal |
| Work Pressure: |
0.6MPa(Cl125)-6.4MPa(Cl600) |
| Working Temperature: |
Customized |
