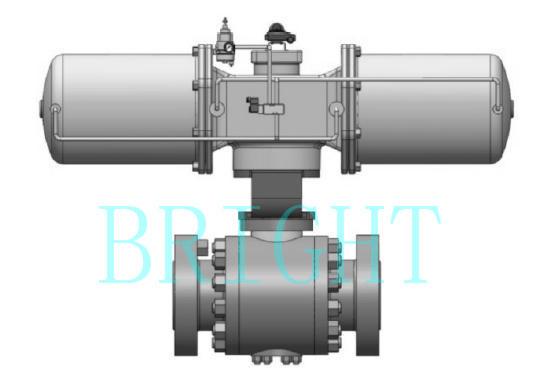

Hb2512 Pneumatic O Type High Pressure Ball Valve
Price: |
US $ 200/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |

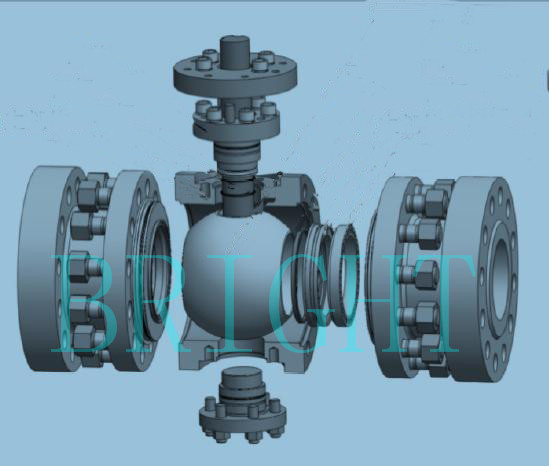

1. Product Introduction
HB2512 Pneumatic O Type High Pressure Ball Valve is applicable to chemical, petroleum, metallurgy, light industry and other industries for the shut-off of gas, liquid and slurry. It fearues stem torque unloading, bidiretional sealing, stem anti blow-out function, anti fire structure, auto-compensation structure of packing, exquisite appearance and high quality of interior, compact structure and zero leakage.
Patent No. 2012200388051, 2012300193843, 2012202282761, 2012202575777,
201420104438.X, 2012202575781, 201320895699.3, 201420104438.X
2. Main Specifications Full Bore Type | Reduced Bore Type |
Nominal Dia. | CV | Nominal Dia. | CV | DN*dn | CV |
mm | inch | mm | inch | mm | inch |
15 | 1/2 | 25 | 80 | 3 | 600 | 100*80 | 4*3 | 550 |
20 | 3/4 | 45 | 100 | 4 | 1100 | 125*100 | 5*4 | 1000 |
25 | 1 | 85 | 125 | 5 | 1700 | 150*125 | 6*5 | 1600 |
32 | 1-1/4 | 112 | 150 | 6 | 2600 | 200*150 | 8*6 | 2300 |
40 | 1-1/2 | 200 | 200 | 8 | 4200 | 250*200 | 10*8 | 3900 |
50 | 2 | 320 | 250 | 10 | 6000 | 300*250 | 12*10 | 5500 |
65 | 2-1/2 | 450 | 300 | 12 | 8600 | 350*300 | 14*12 | 8000 |
3. Body Specifications Model | HB2512 |
Nominal Dia. | DN15~DN300(1/2~12) |
Nominal Pressure | PN100,CL600 | PN150,CL900 | PN250,CL1500 |
Ball Structure | Floating ball | DN15~DN65 (1/2~2-1/2) | DN15~DN65 (1/2~2-1/2) | DN15~DN50 (1/2~2) |
Trunnion ball | DN80~DN300 (3~12) | DN80~DN300 (3~12) | DN65~DN300 (2-1/2~12) |
Ball | Full bore |
Connection | Flanged (RF/RJ) |
Face to face | Refer to Table 9-10 of the Catalogue for HB2512 Pneumatic O Type High Pressure Ball Valve |
Material | CF8,CF8M,CF3M,15CrMo |
Material & treatment | Refer to Table 3 of the Catalogue for HB2512 Pneumatic O Type High Pressure Ball Valve |
Allowable temp. range for material | For material working temperature, refer to Table 4 of the Catalogue for HB2512 Pneumatic O Type High Pressure Ball Valve |
Packing | PTFE, PEEK, graphite |
Leakage | Class IV~VI |
Flow characteristic | Quick open |
4. Applicable Standard | Chinese Standard | American Standard |
Quality assurance | ISO9001 ,TS2710J59 | ISO9001 |
Design & manufacture | GB/T12237 | API 6D |
Flange standard | GB9112-9124,HG20592-2009 | ASME B16.5 |
Face to face | GB12221 | ASME B16.10 |
Inspection & test | GB/T13927 | API 598 |
5. Temp. Range of Main Material for Body
Temp ºC | PN100 BAR | PN150 BAR | PN250 BAR |
WCB | CF8 | CF8M | CF3/CF3M | WC6 | CF8 | CF8M | CF3/CF3M | WC6 | CF8 | CF8M | CF3/CF3M |
-29~38 | 10.5 | 10.5 | 10.5 | 9.4 | 15.8 | 15.8 | 15.8 | 14.1 | 26.3 | 26.3 | 26.3 | 23.5 |
93 | 10.5 | 9.5 | 9.7 | 7.9 | 15.8 | 14.1 | 14.5 | 11.9 | 26.3 | 23.5 | 24.2 | 19.8 |
149 | 10.5 | 8.4 | 8.8 | 7.1 | 15.8 | 12.6 | 13.1 | 10.7 | 26.3 | 21.1 | 21.9 | 17.8 |
204 | 10.5 | 7.8 | 8.0 | 6.4 | 15.8 | 11.7 | 12.0 | 9.7 | 26.3 | 19.4 | 20.0 | 16.2 |
260 | 10.5 | 7.3 | 7.5 | 6.0 | 15.8 | 10.9 | 11.2 | 9.0 | 26.3 | 18.2 | 18.6 | 15.0 |
315 | 10.5 | 6.8 | 7.0 | 5.6 | 15.8 | 10.3 | 10.6 | 8.5 | 26.3 | 17.1 | 17.7 | 14.1 |
343 | 10.5 | 6.7 | 6.9 | 5.5 | 15.8 | 10.1 | 10.4 | 8.2 | 26.3 | 16.8 | 17.3 | 13.7 |
371 | 10.3 | 6.6 | 6.8 | 5.4 | 15.5 | 9.9 | 10.2 | 8.0 | 25.8 | 16.5 | 17.0 | 13.4 |
399 | 10.3 | 6.5 | 6.7 | 5.2 | 15.4 | 9.8 | 10.0 | 7.8 | 25.6 | 16.3 | 16.7 | 13.1 |
427 | 10.1 | 6.3 | 6.6 | 5.1 | 15.2 | 9.5 | 9.9 | 7.7 | 25.3 | 15.8 | 16.5 | 12.9 |
454 | 9.5 | 6.2 | 6.5 | 5.0 | 14.3 | 9.3 | 9.9 | 7.5 | 23.8 | 15.5 | 16.4 | 12.6 |
482 | 8.3 | 6.1 | 6.5 | - | 12.4 | 9.1 | 9.8 | - | 20.6 | 15.2 | 16.3 | - |
510 | 5.6 | 6.0 | 6.4 | - | 8.4 | 9.0 | 9.7 | - | 14.0 | 14.9 | 16.1 | - |
Prod Model: |
HB2512 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Nominal Diameter: |
15 Mm (1/2")-350mm(14") |
Connection Form: |
Flange |
Channel: |
Straight Through Type |
Application: |
Water Industrial Usage |
Material: |
CS, S.S, Alloy Steel |
Nominal Pressure: |
10MPa(Cl600)-25MPa(Cl1500) |
Structure: |
Float Ball and Trunnion Ball |
Type: |
Float Ball Valve and Trunnion Ball Valve |
Function: |
Shutoff |
Temperature: |
Customized |
