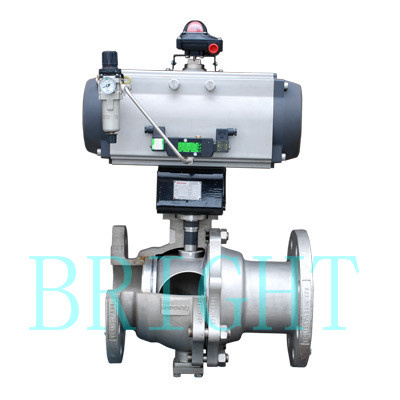

Hb2514 Pneumatic O Type Hard-Seal Ball Valve
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
1. Product Introduction
HB2514 Pneumatic O Type Hard
Seal Ball Valve is applicable to chemical, petroleum, metallurgy, light industry and other industries for the shutoff of gas, liquid and slurry. It fearues antistatic function, pressure balance structure, anti blow out function, bidirectional seal, anti fire structure, autocompensation structure of packing, automatic unloading device, exquisite appearance and high quality of interior and compact structure .

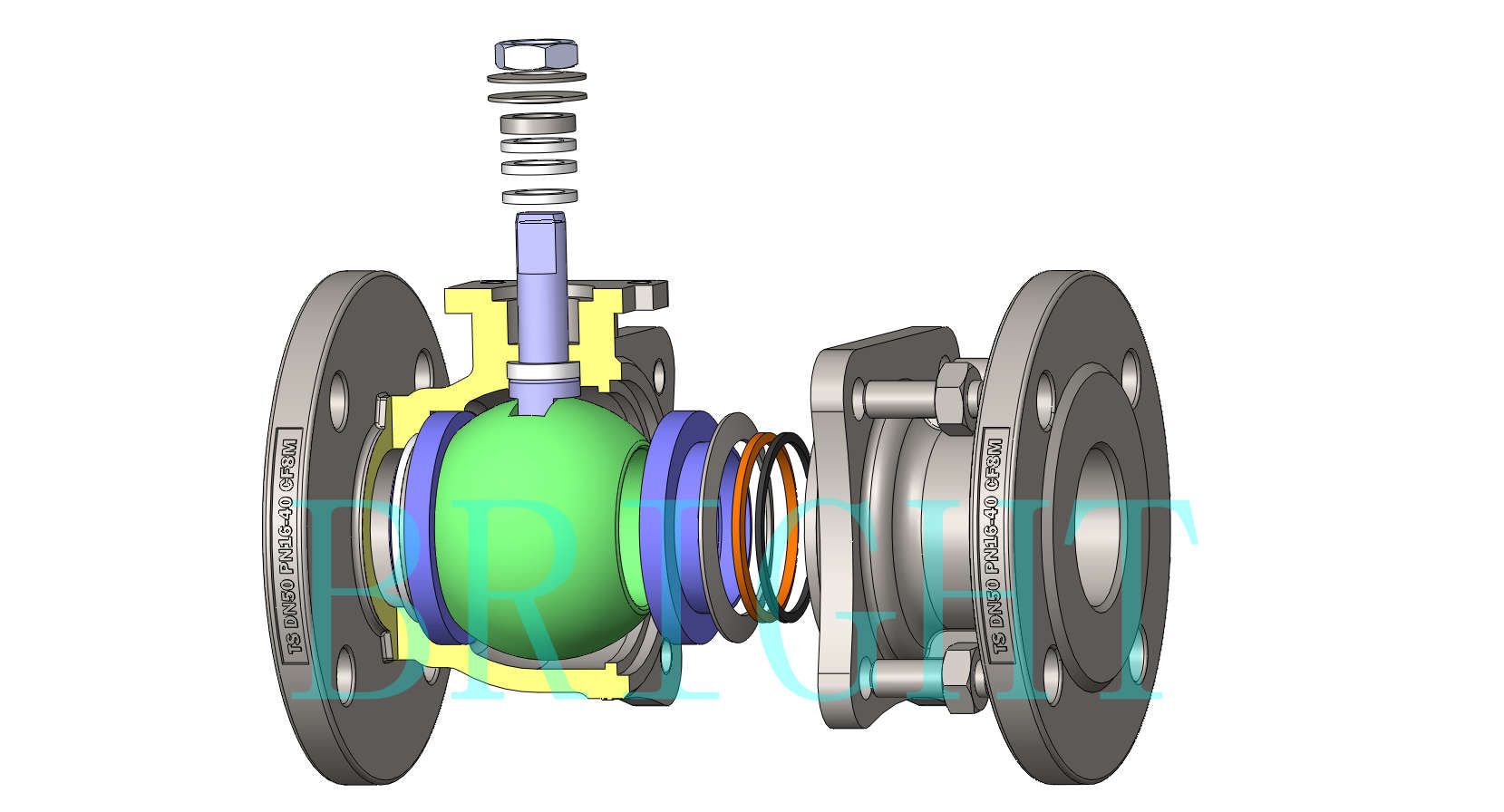

Patent No. ZL2012200388051, ZL2012300193843, ZL2012202282583, ZL2012202282761, ZL2012202575777 Float Ball

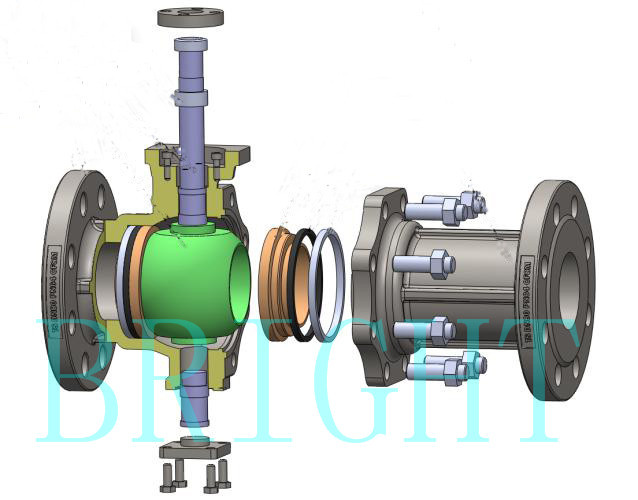

Trunnion Ball
2. Main Specifications
Rated stroke | 0~90° |
Flow characteristics |
Quick open |
Leakage | ClassIV~VI |
Temperature | -29~538ºC |
3. Body Specifications| Model | HB2514 |
| Nominal Dia. | DN15~DN300(1/2~12) |
Nominal Pressure | PN1.6, PN2.5, CL150 | PN4.0,CL300 | PN6.4, CL600 |
| Type | Float Ball | DN15~DN150
(1/2~6) | DN15~DN125
(1/2~5) | DN15~DN50
(1/2~2) |
| Trunnion ball | DN200~DN300
(8~12) | DN150~DN300
(6~12) | DN65~DN300
(2-1/2~12) |
| Ball type | Full bore (Reduced bore for option) |
| Connection | Flanged (RF, MFM) |
Face to face | 11~13
Refer to Table 11~13 of the Catalogue for HB2514 Pneumatic O Type Hard- Seal Ball Valve |
| Body Material | WCB,CF8,CF8M,CF3M |
| Material and treatment |
Refer to Table 3 of the Catalogue for HB2514 Pneumatic O Type Hard-Seal Ball Valve for standard materials |
| Temperature Range |
Refer to Table 4~5 of the Catalogue for HB2514 Pneumatic O Type Hard- Seal Ball Valve for operating temperature range |
| Packing | PTFE, PTFE,
High temperature resistant graphite |
Leakage Class | Class V( VI) (VI for option) |
| Characteristics | Quick open |
4. Applicable Standard
|
Chinese Standard | American Standard |
| Quality | ISO9001,TSG Z7002-2004 | ISO9001 |
Design and manufacture | GB/T12224-2005 | API 6D |
| Flange | GB9112~9124-2010,HG20592-2009 | ASME B16.5 |
| Face to Face | GB12221-2005 | ASME B16.10 |
| Inspection & test | GB/T13927 | API 598 |
5. Temp. Range of Main Material for Body
| S/N | Par Part Name | Material |
Allowable Temp. |
| 1 | Packing |
| -29~+200ºC |
| PPL | -29~+200ºC |
| PEEK | -29~+230ºC |
| PCTFE | -196~+200ºC |
| 2 | Body | WCB | -29~+427ºC |
| CF8 | -196~+538ºC |
| CF8M | -196~+538ºC |
| CF3M | -196~+455ºC |
| 3 |
Flange gasket | PTFE | -29~+180ºC |
| PPL | -29~+220ºC |
| PEEK | -29~+260ºC |
| PCTFE | -196~+200ºC |
| 4 | Seat | 304(+Ni60,WC,CrC) | -29~+538ºC |
| 316(+Ni60,WC,CrC) | -29~+538ºC |
| 5 | Vice body | WCB | -29~+427ºC |
| CF8 | -196~+538ºC |
| CF8M | -196~+538ºC |
| CF3M | -196~+455ºC |
| Prod Model: |
HB2514 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Diameter: |
15 Mm (1/2")-300mm(12") |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Application: |
Water Industrial Usage |
| Material: |
CS, S.S, Alloy Steel |
| Nominal Pressure: |
1.6MPa(Cl150)-6.4MPa(Cl600) |
| Structure: |
Float Ball and Trunnion Ball |
| Type: |
Float Ball Valve and Trunnion Ball Valve |
| Function: |
Shutoff |
| Temperature: |
Customized |
