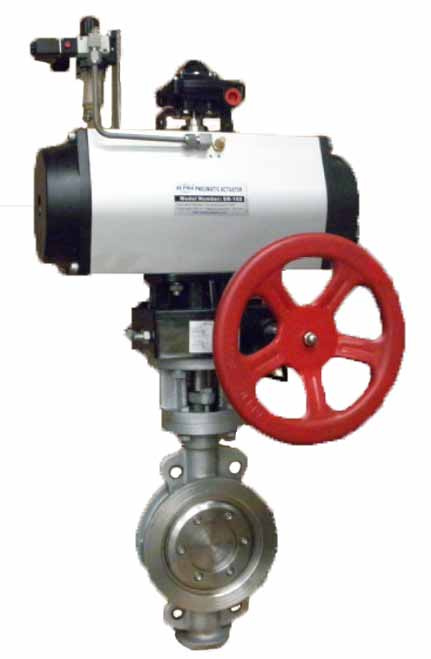

High Performance Butterfly Valve with Pneumatic Actuator and Manual Override
Price: |
US $ 1-100/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Wafer type metal seated butterfly valve
PN: 10/16
Class(Lb): 150Lb, 300Lb
DN(mm): 50---1200
Size(inch): 2---48
Working temperature: -29---425º C
Type of connection: Wafer
Operator: Pneumatic Actuator with components and manual override
Body & disc material: ASTM WCB, CF8, CF8M
Stem material: ASTM A105, F6a, 304, 316
Sealing face material: Stainless steel, STL
Suitable medium: Water, oil, gas, steam, acids
Certificates: CE, ISO 9001: 2008Design & manufacture Std.: GB/T12238, JB/T8527, ANSI B16.34, API609, MSS SP-68, JIS B2032, JIS B2064Face to face Std.: GB/T12221, ANSI B16.10, API609, MSS SP-68, JIS B2002Connection dimension Std.: JB/T79, GB/T9113, SH3406, HG20592, ANSI B16.5, API 605, JIS B2212, JIS B2214Test Std.: GB/T13927, JB/T9092, API 598, JIS B2003
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
Dn50-1200 |
Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
Material Of Seal Surface: |
Metal Hard Sealed |
Connection Form: |
Wafer |
Structure: |
Three-Eccentric Sealing |
Seal Form: |
Force Sealed |
Working Temperature: |
Medium Temperature (',120??C
|
Application: |
Water Industrial Usage |
Tianjin Tangfa Watts Valve Co., Ltd. is one of the biggest supplier in China. We specialize in designing, manufacturing and marketing of various low pressure valves.
Our factory covering 80, 000m2 with the registered capital USD14, 14 million, owns modernized factory buildings, production and testing equipments and strong engineering capability. It passed ISO9001: 2008, CE Certification. Our valves are widley used in most of big water projects of China and overseas.
Our Product:
1. Butterfly valve: Wafer type, Flanged type, Lug type
2. Gate valve: Non rising and rising stem type resilient gate valve, solid wedge gate valve
3. Check valve: Dual plate wafer check valve, Swing check valve.
4. Globe valve, Ball Valve, Y-Strainer, Rubber Expansion Joint and Flanges.
We offer technical expertise and willingness to work with the customer.
