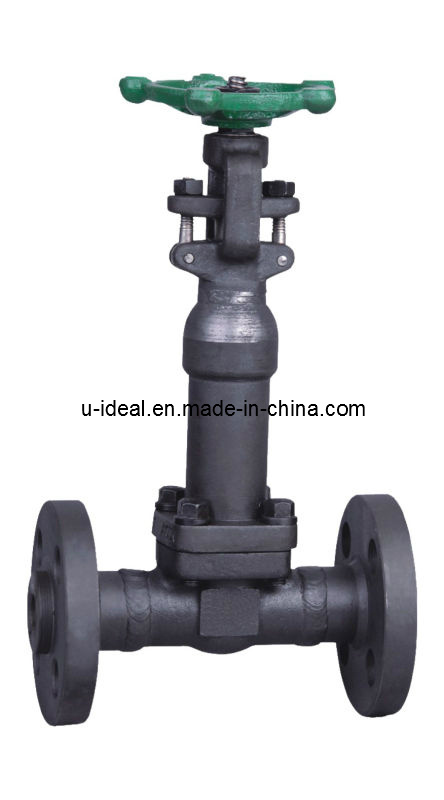

High Quality Forged Steel Cryogenic Flange Gate Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Specifications:
1. BB - Bolted bonnet
2. Extended stem
3. OS&Y - outside screw and yoke
4. Extended Stem and Bonnet which keep stem packing at sufficient distance away from the cold fluid to remain functional and ensure the operator is at a sufficient distance from the pipeline.
5. Flange ends: ASME B16.5
6. Forged Steel Cryogenic Gate Valves conform toAPI602, ASME B16.34 and BS5352. Each valve is tested in accordance with API 598, and marked per MSS SP 25.
7. Main materials: LF2, LF3, F304, F316, F347, F51, Monel, 20# Alloy
|
No. |
name of parts |
A105/F6a |
A105/F6aHFS |
LF2/304 |
F304(L)/304(L) |
F316(L)/316(L) |
F51/F51 |
LF3/304 |
|
1 |
body |
- |
- |
LF2 |
F304(L) |
F316(L) |
F51 |
LF3 |
|
2 |
seatring |
- |
- |
304 |
304(L) |
316(L) |
F51 |
304 |
|
3 |
wedge disc |
- |
- |
F304 |
F304(L) |
F316(L) |
F51 |
F304 |
|
4 |
stem |
- |
- |
304 |
304(L) |
316(L) |
F51 |
F304 |
|
5 |
gasket |
- |
- |
304+flexible graphite |
304+flexible graphite |
304+flexible graphite |
304+flexible graphite |
304+flexible graphite |
|
6 |
bonnet |
- |
- |
LF2 |
F304(L) |
F316(L) |
F51 |
LF3 |
|
7 |
bolt |
- |
- |
L7 |
B8 |
B8 |
B8 |
L7 |
|
8 |
pin |
- |
- |
410 |
304 |
304 |
304 |
410 |
|
9 |
gland |
- |
- |
304 |
304 |
316 |
F51 |
304 |
|
10 |
gland eyebolt |
- |
- |
L7 |
B8 |
B8 |
B8 |
L7 |
|
11 |
gland flange |
- |
- |
LF2 |
F304 |
F304 |
F304 |
LF3 |
|
12 |
hex nut |
- |
- |
2H |
8(M) |
8(M) |
8M |
2H |
|
13 |
stem nut |
- |
- |
410 |
410 |
410 |
410 |
410 |
|
14 |
locking nut |
- |
- |
35 |
35 |
35 |
35 |
35 |
|
15 |
nameplate |
- |
- |
AL |
AL |
AL |
AL |
AL |
|
16 |
handwheel |
- |
- |
A197 |
A197 |
A197 |
A197 |
A197 |
|
17 |
lubricatinggasket |
- |
- |
410 |
410 |
410 |
410 |
410 |
|
18 |
packing |
- |
- |
Graphite |
Graphite |
Graphite |
Graphite |
Graphite |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Material: |
Carbon Steel |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
