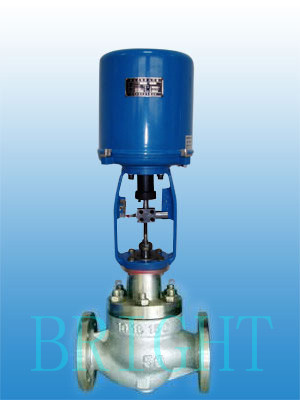

Hs4010 Electric Single Seat Globe Control Valve
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
HS4010 electric single seat globe control valve in H series is designed to satisfy the high requirement of controlling fluid based on traditional electric single seated and cage guided control valve. The trim of valve (DN40 above) adopts pressure balanced structure, thus stable control can be realized with smaller operation force and the product has lower leakage. The trim is also equipped with inlet balance sealing ring, thus the noise is low and the dynamic stability is good.
Body| Nominal Dia. | 20, 25, 40, 50, 65, 80, 100, 125, 150, 200mm |
| Nominal Pressure | ANSI125, 150, 300, 600 PN1.6, 4.0, 6.4MPa |
| Connection | Flange type | FF, RF, RJ, LG, MFM |
| Flange standard | ANSI B16.5-1981, JB/T79.1-94(PN1.6MPa), JB/T79.2-94(PN4.0, 6.4MPa) |
| Body material | WCB, CF8, CF8M |
| Upper bonnet | Normal temp. (P) | -17~+230ºC |
| Extension I (EI) | -45~-17ºC, +230~+566ºC |
| Extension II (EII) | -100~-45ºC |
| Extension III (EIII) | -196~-100ºC |
| Note: The working temperature is not allowed to exceed the allowable range of each material. |
| Gland type | Compact with bolt |
| Packing | PTFE V-ring, PTFE-Asbestos, Graphite |
Trim, temperature range & allowable leakage of seat| Flow characteristics | Equal percentage, Linear |
| Trim material | 304, 316, 316L, Hastelloy B-2, Hastelloy C-276 |
| Plug structure | HS single seated |
| Leakage | Class IV |
| Working temp.ºC | -196~+566 |
Actuator| Type | DKZ series electric actuator, 3810 series, SKZ series and PSL series electronic type electric actuator |
| Input signal | DKZ actuator | II0~1OmA·DC (input R 200Ω); III 4-20mA·DC (input R 250Ω) |
| 3810 actuator | 4~20mA·DC1~5V (input R 250Ω) |
| SKZ actuator | 4~20mA·DC, 1~5V |
| PSL actuator | 4~20mA·DC |
| Power supply | DKZ actuator | 220V, 50Hz |
| 3810 actuator | 220V, 50/60Hz |
| SKZ actuator | single-phase control 220V·50Hz |
| PSL actuator | single-phase control 220V·50Hz; three-phase control 380V, 50Hz |
The valve action type
Electric open or close type
Performance| Hysteresis | < 0.8% of full stroke |
| Basic error | < ±0.8% of full stroke |
| Note: Adopting standard PTFE V-ring packing |
| Rangeability | 50:1 |

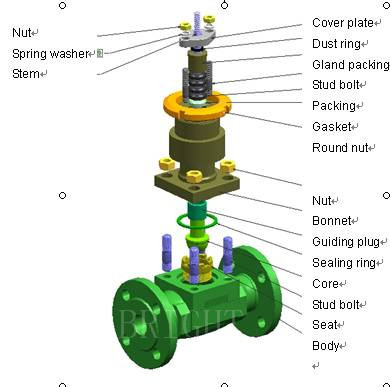

- Figure for body structure
| DN | 20, 25 |
| Seat diameter | 4 | 4 | 4 | 4 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 20 | 25 | 28 |
| Rated Cv | 0.01 | 0.04 | 0.1 | 0.16 | 0.25 | 0.4 | 0.63 | 1.0 | 1.6 | 2.5 | 4.0 | 6.3 | 10 | 14 |
| Rated stroke | 14.3 |
Note:The columns in gray are the Cv value range of DN20. | DN | 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| Seat diameter | 25 | 32 | 40 | 32 | 40 | 50 | 40 | 50 | 65 | 50 | 65 | 80 | 65 | 80 | 100 | 100 | 125 | 150 | 125 | 150 | 200 |
| Rated Cv | 10 | 17 | 24 | 17 | 24 | 44 | 24 | 44 | 68 | 44 | 68 | 99 | 68 | 99 | 175 | 175 | 275 | 360 | 275 | 360 | 650 |
| Rated stroke | 25 | 38 | 50 | 75 |
Typical flow characteristics curve
Stroke (%) → Stroke (%) →
Equal percentage (%V) Linear (LV)Fig. 1 Typical flow characteristics curve
Fig. 2 Range of operating temperature and differential Fig. 3 Operating range of
pressure of soft seat stellite alloy
Note: 1. 17-4PH stainless steel (SCS24) does not need to be overlay welded.
2. In the case of cavitation erosion, flash evaporation, and oil forbidden, no matter how about the operation temperature and pressure, satellite overlay welding is recommended.- Max. allowable differential pressure
I. Equipped with DKZ actuator
100KPa| Actuator | Allowable differential pressure |
| Rated Cv value |
| ≤0.25 | 0.4 | 0.63 | 1.0 | 1.6 | 2.5 | 4.0 | 6.3 | 10 | 14 |
| DKZ-2200A | 100 | 100 | 100 | 90 | 90 | 55 | 55 | 30 | 22.4 | 13.8 |
100KPa| Actuator | Allowable differential pressure |
| DN |
| 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| DKZ-310 | 100 | 100 | | | | | |
| DKZ-410 | | | 100 | 100 | 94 | 65.8 | |
| DKZ-510 | | | | | | | 100 |
II. Equipped with 3810 actuator
100KPa | Actuator | Allowable differential pressure |
| Rated Cv value |
| ≤0.25 | 0.4 | 0.63 | 1.0 | 1.6 | 2.5 | 4.0 | 6.3 | 10 | 14 |
| 3810SA-20 | 100 | 100 | 100 | 72 | 72 | 44 | 44 | 23.9 | 17.8 | 11 |
100KPa| Actuator | Allowable differential pressure |
| DN |
| 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| 3810SA-20 | 67 | 53.8 | | | | | |
| 3810SB-50 | | | 100 | 95 | 79 | 54.9 | |
| 3810SC-99 | | | | | | | 82.4 |
III. Equipped with RS actuator
100KPa| Actuator | Allowable differential pressure |
| Rated Cv value |
| ≤0.25 | 0.4 | 0.63 | 1.0 | 1.6 | 2.5 | 4.0 | 6.3 | 10 | 14 |
| RS4 | 100 | 100 | 100 | 72 | 72 | 44 | 44 | 23.9 | 17.8 | 11 |
100KPa | Actuator | Allowable differential pressure |
| DN |
| 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| RS4 | 100 | 95.7 | | | | | |
| RS10 | | | 100 | 100 | 100 | 100 | |
| RS20 | | | | | | | 100 |
IV. Equipped with PSL actuator
100KPa| Actuator | Allowable differential pressure |
| Rated Cv value |
| ≤0.25 | 0.4 | 0.63 | 1.0 | 1.6 | 2.5 | 4.0 | 6.3 | 10 | 14 |
| PSL202 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 89.5 | 55 |
100KPa| Actuator | Allowable differential pressure |
| DN |
| 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| PSL202 | 50 | 45 | | | | | |
| PSL204 | | | 87 | 72 | 58 | 36 | |
| PSL208 | | | | | | | 57 |
| Prod Model: |
HS4010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Dia.: |
20mm(3/4")-200mm(8") |
| Nominal Pressure: |
1.5 MPa(Cl150)-6.4 MPa(Cl600) |
| Material: |
CS, Ss, Alloy Steel |
